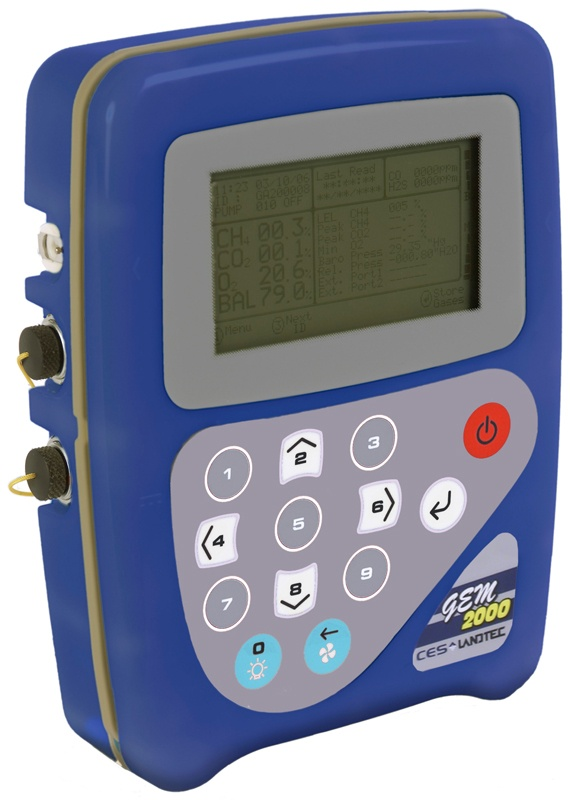

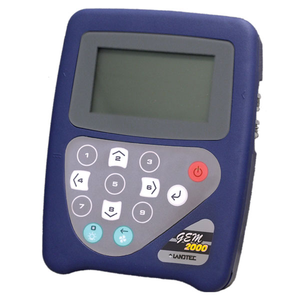

Landtec GEM2000 Landfill Gas Analyzer and Extraction Monitor
Landtec

Landtec GEM2000 Landfill Gas Analyzer and Extraction Monitor

Pine Item #51156

The GEM 2000 puts the best of the GEM 500 gas extraction monitor and the GA 90 infrared landfill gas analyzer into a faster, more accurate instrument.  Designed specifically to monitor landfill gas extraction systems, flares and migration control systems, the GEM 2000 samples and analyzes the methane, carbon dioxide and oxygen content of landfill gas.

Used in gas extraction monitor mode or landfill gas analyzer mode, the esy-to-read LCD screen shows results as percentages of CH4,CO2 and O2.  The GEM 2000 calculates and displays gas flow rate, and also measures and displays Btu content, relative and atmospheric pressures and CH4 LEL.  The data storage and retrieval function stores measurements taken for each monitoring point, with a capacity of 900 monitoring points total.  Data can be downloaded to a PC.

Features:

Measures CO & H2 S gases

Measures % CH4 , CO2 and O2 Volume, static pressure and differential pressure

Calculates balance gas, flow (SCFM) and calorific value (KW or BTU)

Displays % LEL of CH4 and user-defined comments

Records site and well conditions

Extended operation (10 - 14 hrs use from one charge)

Certified instrinsically safe for landfill use

Two instruments in one (GA and GEM mode)

Applications:

Landfill gas extraction systems

Migration Control Systems

Flares

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

MethaneSensor Range: 0 to 100% Resolution: 0.1%
Carbon DioxideSensor Range: 0 to 60% Resolution: 0.1%
OxygenSensor Range: 0 to 25% Resolution: 0.1%
Differential PressureSensor Range: 0 to 10\"wc Resolution:0.001\"wc
Static PressureSensor Range: 0 to 100\"wc Resolution: 0.1\"wc
Pump Flow Rate300 cc/min
Flow Accuracy±3%
Operating Temperature32 to 104 degrees F
ApprovalsUL certified to Class I Zone 1
PowerRechargeable NiMH battery pack up to 8 hours operation
DimensionsUS: 2.48 x 7.48 x 9.92 in. Metric: 6.3 x 19 x 25 cm
WeightUS: 4.4 lb. Metric: 2 kg
