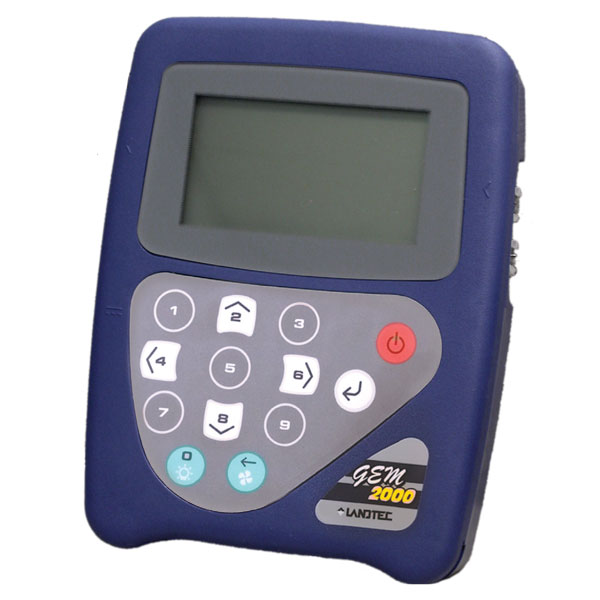

Landtec GEM2000 PLUS Landfill Gas Analyzer and Extraction Monitor
Landtec GEM2000 PLUS Landfill Gas Analyzer and Extraction Monitor
QED/Landtec

Landtec GEM2000 PLUS Landfill Gas Analyzer and Extraction Monitor

Pine Item #51155

The GEM2000 is designed & field proven to monitor landfill gas extraction systems accurately & efficiently.  The GEM™2000 PLUS offers all the advantages and capabilities of the GEM™2000.  Utilizing new technology the GEM™2000 PLUS adds the enhanced ability to read Carbon Monoxide and Hydrogen Sulfide.

Features:

Calculates balance gas flow (SCFM) and calorific value (KW or BTU)

Displays % LEL of CH4 and user-defined comments

Extended operation (10 - 14 hrs use from one charge)

Measures % CH4 CO2 and O2 Volume static pressure and differential pressure

Measures CO & H2S gases

Records site and well conditions

Two instruments in one (GA and GEM mode)

Applications:

Landfill gas extraction systems

Migration Control Systems

Flares

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

RangeMethane 0-100% Reading
CO MeasurementCompensated for interference from Hydrogen up to 1% Hydrogen.
FlowTypically 300 cc/min
Flow with 5.9 in.Hg vacuumApproximately 250 cc/min
Operating Temperature Range32°F - 104°F
Relative Humidity0-95% non condensing
Barometric Pressure±5.9 in.Hg from calibration pressure
Barometric Pressure Accuracy±0.15 in.Hg typically
Battery LifeTypical use 10 hours from fully charged
Charge TimeApproximately 2 hours from complete discharge.
DimensionsUS: 2.48 x 7.48 x 9.92 in. Metric: 63 x 190 x 252 mm
WeightUS: 4.4 lb. Metric: 2 kg
