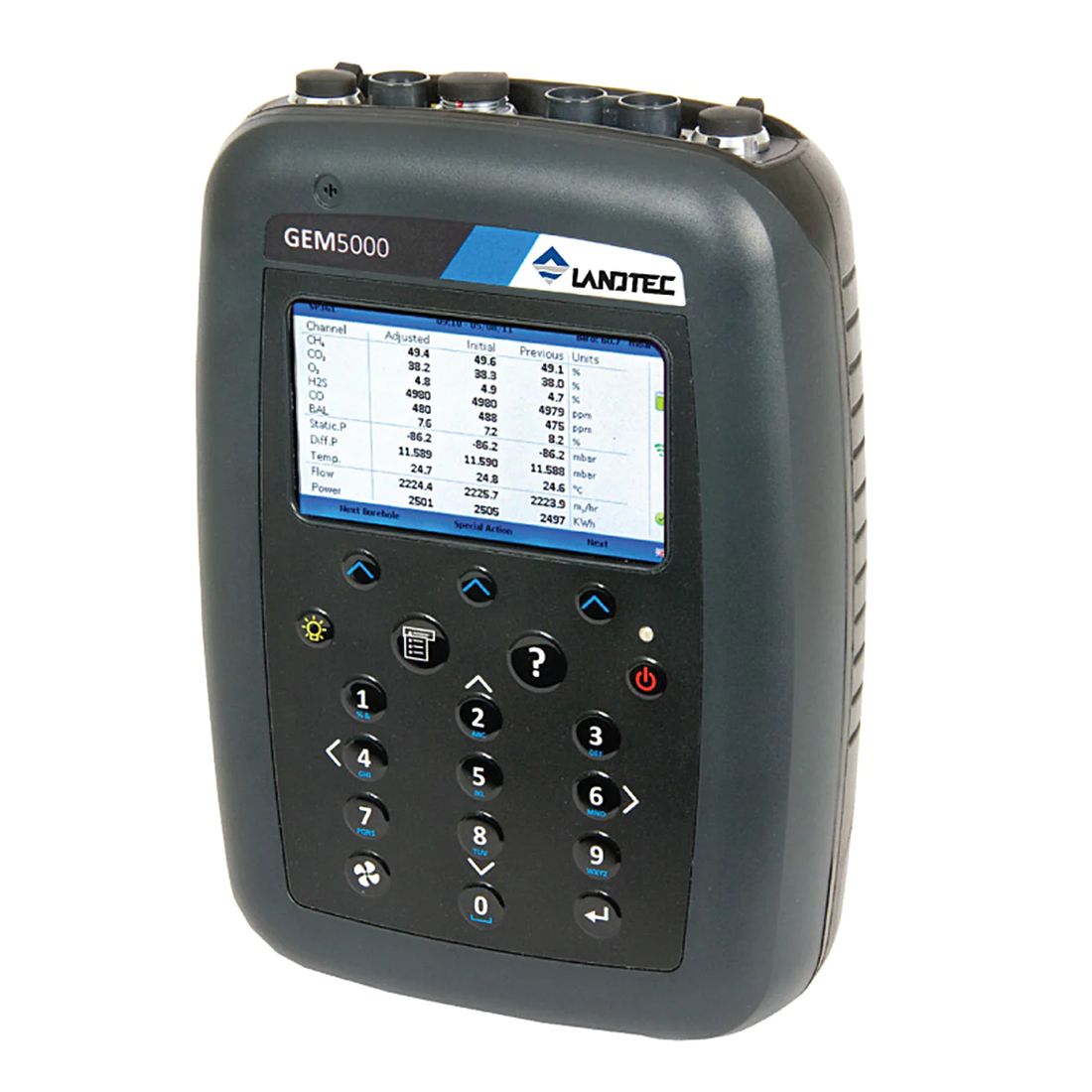

Landtec GEM 5000 Plus Landfill Gas Monitor
The GEM™5000 is designed specifically for use in landfills to monitor Landfill Gas (LFG) Collection & Control Systems. The GEM™ 5000 samples and analyzes the methane, carbon dioxide and oxygen content of landfill gas with options for additional analysis.
GEM5000 Complete Package Includes:
The instrument, hoses, heavy-duty water trap filter, soft case, A.C. battery charger, electronic manual accompanies the software, LANDTEC System Gas Analyzer Manager (LSGAM) software, USB download cable, and hard-case. Reads: Methane, Carbon Dioxide, Oxygen, temperature (when used with optional probe), atmospheric pressure, differential pressure and calculates gas flow.
NAV and Plus model packages also include more features such as GPS and additional gas measurements
Measures % CH4, CO2 and O2 Volume, static pressure and differential pressure
Calculates balance gas, flow (SCFM) and calorific value (KW or BTU)
High Accuracy and Fast Response Time
Lighter and More Compact
Certified intrinsically safe for landfill use
Calibrated to ISO/IEC 17025
Designed specifically for use in landfills to monitor landfill gas (LFG) extraction systems, flares, and migration control systems.
Can be used for monitoring subsurface migration probes and for measuring gas composition, pressure, and flow in gas extraction systems
|Gases Measured||CH4, CO2, O2, CO, H2S|
|Operating Temperature Range||14°F – 122oF (-10oC to +50oC)|
|Battery Life||Typical use 8 hours from fully charged|
|Charge Time||Approximately 4 hours from complete discharge|
|Pump Flow||Typically 550cc/min|
|Pump Flow with 80 in. H2O Vacuum||Approximately 80cc/min|
