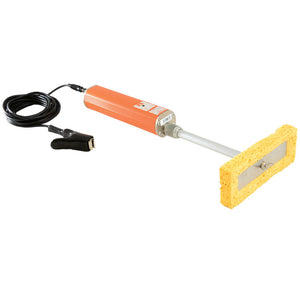

Elcometer 270-4 Pinhole
Pine Item #54255
The Elcometer 270 Range utilities the wet sponge technique and has been designed to set a new standard for wet sponge detectors - namely, a high quality, low voltage detector with similar accessories to a high voltage spark tester.
Features:
\r
Automatic gauge calibration check & low battery indicator\r
Simple accurate & very versatile pinhole tester\r

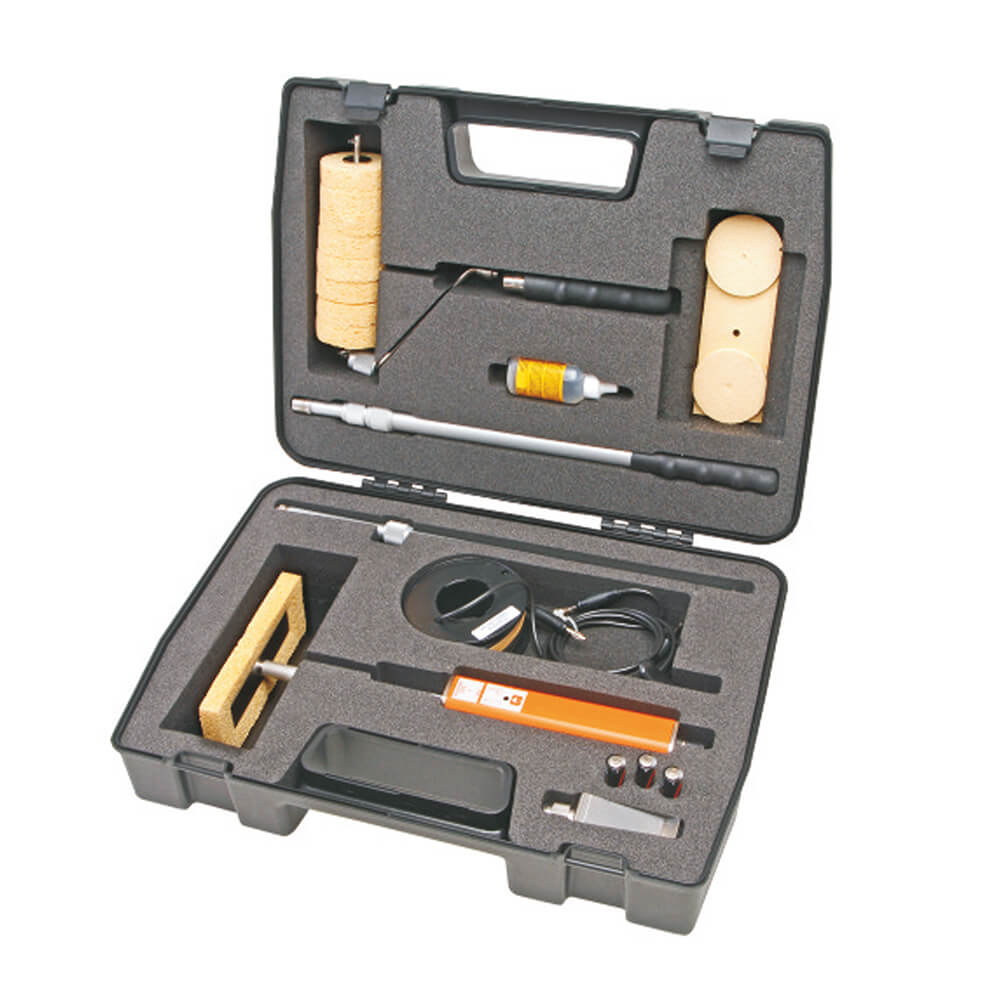

Wide range of accessories available to meet all your pinhole detection requirements
Specifications
| Measurement Range | 9V Setting: 300 microns (12 mils) |
| NULL | 90V Setting: 400 kohm ± 5% |
| Sensitivity Range | 9V Setting: 90 kohm ± 5% |
| Accuracy of Voltage | ±5% |
| Battery Type | 3 x AA (LR1600) 1.5V Alkaline |
Dimension
| US | Metric | |
| Unit Without wand | - | 210 x 42 x 37 mm |
| Approx. Flat Sponge Size | - | 150 x 60 x 25 mm |
Weight
| US | Metric | |
| Unit Including Wand Assembly cable | 21 oz | 610 g |
