Elcometer 236-2 DC HD
Elcometer 236-2 DC HD

Elcometer 236-2 DC HD

Pine Item #54256

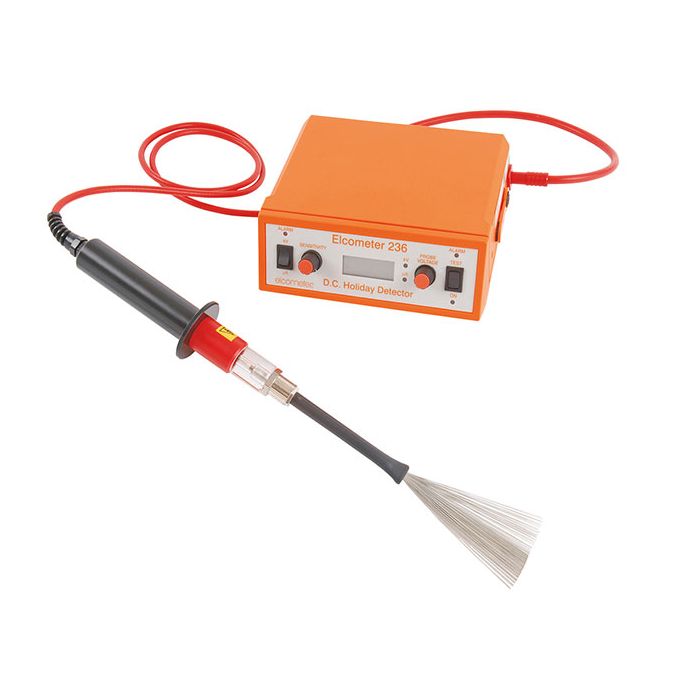

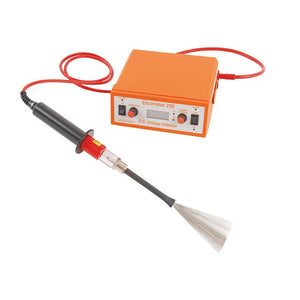

The Elcometer 236 DC Holiday Detector The premature corrosion of a substrate is often due to the failure of its coating. Major causes of failure are flaws in the finished coating, these include pinholes, holidays, inclusions, thin spots and bubbles. The Elcometer 236 ’s convenient carry case allows the probe handle and accessories to be attached to the front making the Elcometer 236 ideal for field, site or laboratory nspection. Each unit provides the user with complete control on Voltage and Sensitivity settings. The Elcometer 236 minimizes the risk of additional damage to a coating and avoids the danger of coating popping off the surface which can occur with some high Voltage systems.


Ideal for field site or laboratory inspection

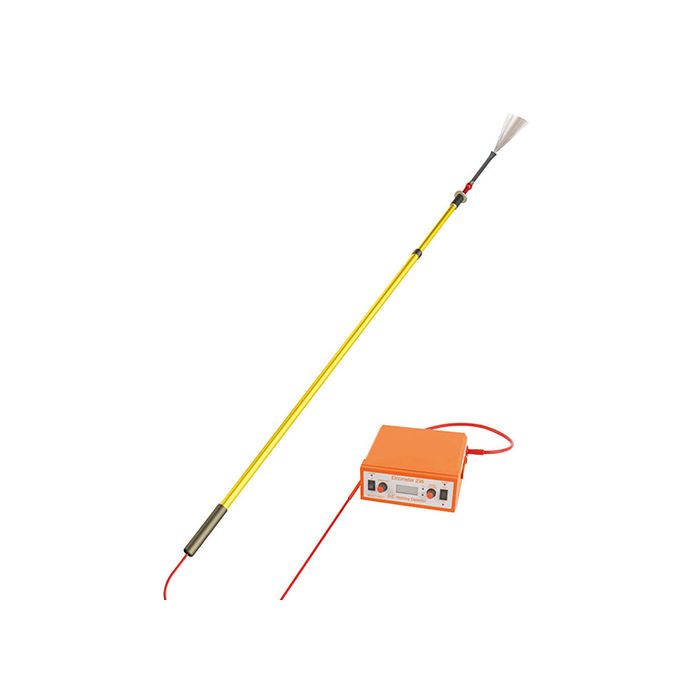

Wide range of accessories available for various applications

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote


Technical Specifications

Accuracy of Voltage Setting±5% or ±0.2% kV
Display Resolution0.01kV (15kV) 0.1kV (30kV)
AlarmsAudio & Visual
Power SupplyNimH 12V internal rechargeable battery providing 10/12 hours continuous use
Battery Life10/12 hours continuous use the optional external battery pack can increase this to 20/24 hours of continuous use
Range of Coating Thickness15kV: 0 - 3.75mm (approximate); 0 - 150mils (approximate)
Voltage Output15kV: 0.5 - 15kV in 100V steps
DimensionsUS: 6 x 7 x 3 in. Metric: 200 x 170 x 70 mm
