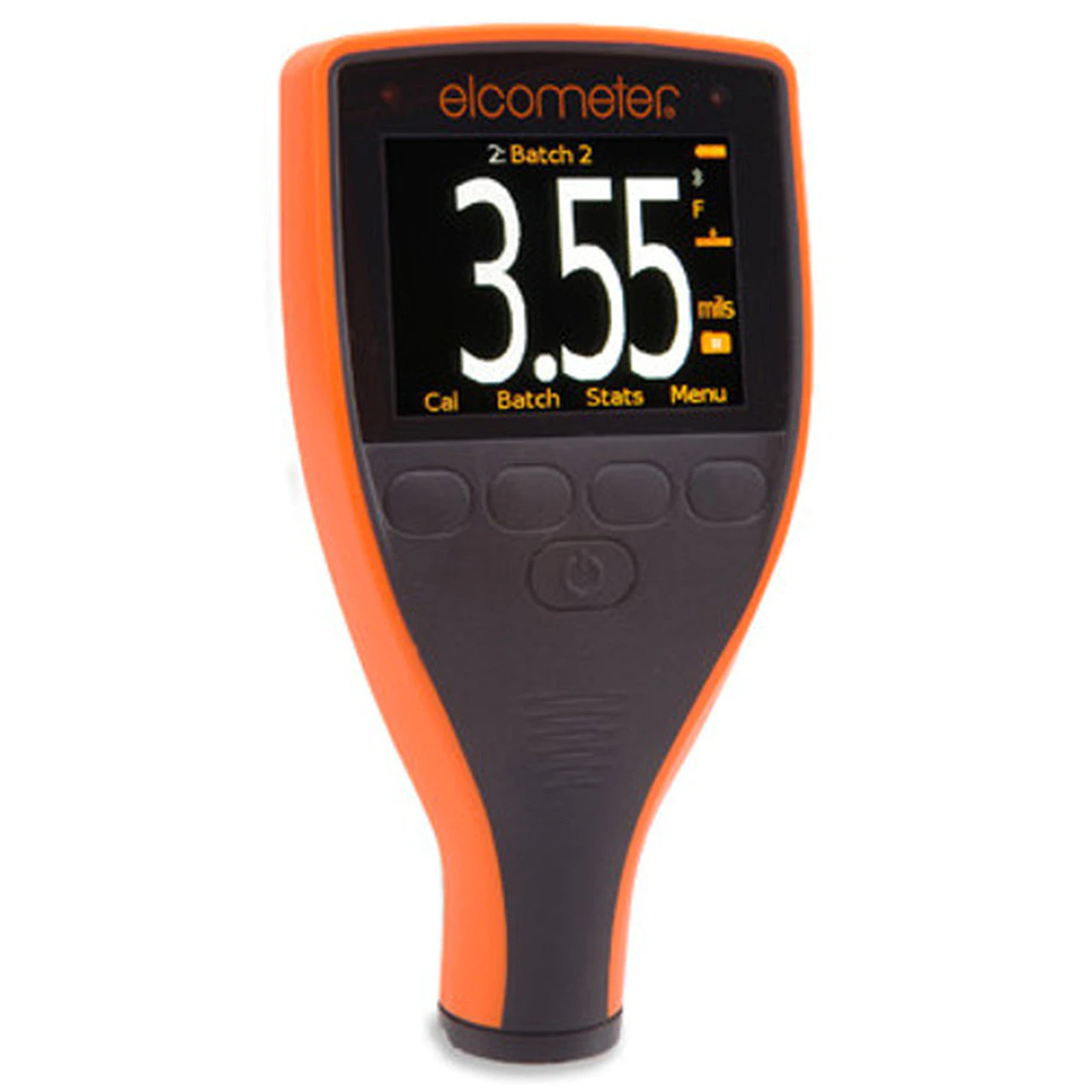

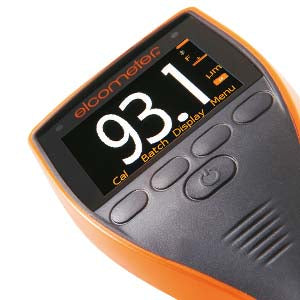

Elcometer 456 (Model T) with Straight Ferrous Substrate Probe
Elcometer 456 (Model T) with Straight Ferrous Substrate Probe
Elcometer 456 (Model T) with Straight Ferrous Substrate Probe
Elcometer

Elcometer 456 (Model T) with Straight Ferrous Substrate Probe

Pine Item #54963

The new Elcometer 456 coating thickness gauge sets new standards measuring the thickness of a coating, helping you to become more efficient.   Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during dry film thickness measurment - allowing for consistent, repeatable and accurate results.   The Model T features memory, alpha-numeric batching and Bluetooth ® communication.

Features:

Fast accurate reading rate; 70+ readings per minute

Repeatable & reproducible measurements

Easy to use menu structure; in 30+ languages

Tough impact water & dust resistant; equivalent to IP64

Bright color screen with permanent back light

Scratch & solvent resistant display; 2.4

Large positive feedback buttons

USB power supply; via PC

Test certificate

2 year gauge warranty

Automatic rotating display - 0° 90° 180° & 270°

Ambient light sensor with auto brightness

Emergency light

Tap awake from sleep

Gauge software updates via ElcoMaster 2.0 software

Data ouput

USB to computer

Bluetooth to computer (Android & iOS devices)

On screen statistics

Number of readings: ?

Mean (average): x

Standard deviation: ó

Highest reading: hi

Lowest reading: loo

Coefficient of variation: COV

Elcometer index value: EIV

Nominal dry film thickness: NDFT

IMO PSPC; %> NDFT %> 90

High and low limits: definable audible & visual alarms

Number above high limit

Number below low limit

Live reading trend graph (in batch mode)

ElcoMaster 2.0 software and USB cable

Replaceable screen shots

Replaceable screen protectors

Protective case

Plastic transit case

Integral models: with automatic gauge switch on

Probe type: Ferrous (F) Non-Ferrous (N) Dual (FNF)

Measurement Range of 0-500 mils (0-3mm)

On-screen calibration instructions (in 30 languages)

Multiple calibration methods

Factory (resets to factory calibration)

2 point (for smooth and rough surfaces)

1-point (zero calibration)

Zero offset (for calibration according to ISO19840)

Predefined calibration and measurement methods

ISO SSPC PA2 Swedish Australian

Automatic calibration (for rapid calibration)

Calibration memory type (gauge (g) or gauge and batch (gb)

Number of batches (with unique calibrations): 2500

Calibration memories (3-programmable memories)

Measurement outside calibration warning

Calibration lock (with optional PIN code unlock)

Delete last reading

Gauge memory (number of readings): 150000

Individual batch calibrations (sent to PC via ElcoMaster 2.0)

Limits (user definable audible & visual pass/fail warnings)

Gauge (g) or gauge & batch specific (gb) limits

Date and time stamp

Batch types (normal counted average IMO PSPC)

Batch review graph

Review clear and delete batches

Copy batches and calibration settings

Alpha-numeric batch names (user definable on the gauge)

Fixed batch size mode (with batch linking)

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Battery Life:~24 hours of continuous use at 1 reading per second
Battery Type:2 x AA dry cell batteries rechargeable batteries can also be used
Display Information:2.4\" (6cm) QVGA colour TFT display 320 x 240 pixels
Gauge Dimensions (h x w x d)5.55 x 2.87 x 1.46\" (141 x 73 x 37mm)
Gauge Weight:5.50oz (156g) including supplied batteries
Operating Temperature:14 to 122°F (-10 to 50°C)
