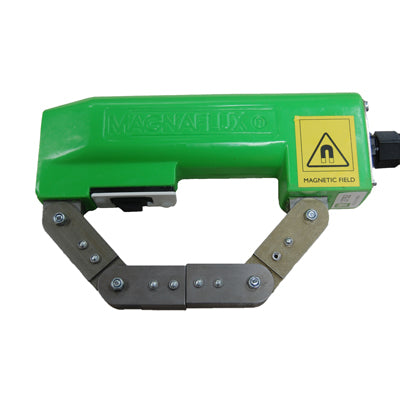

Magnaflux Y6 220-240V AC Electromagnetic MPI Yoke
Magnaflux

Magnaflux Y6 220-240V AC Electromagnetic MPI Yoke

Pine Item #54145

The lightweight, encapsulated, Magnetic Yoke is used for the detection of surface cracking in any ferro-magnetic material. The Y6 Electromagnetic yoke rents with power cable, case, operating sheet and yoke. All contained in a strong, attractive carrying case.

Features:

Choice of 5 models

Demagnetising Capability

Weighs only 3.5Kg

Articulated Legs with 25 x 25mm Pole Area

Exceeds specific lift weight requirements

Applications:

Articulating double-jointed legs contour easily to any part shape to assure good contact.

Pull force 10 lbs AC complies with specifications.

Solid state controls located in housing for maximum safety and reliability.

2-minute ON/OFF duty cycles for fast efficient inspections (Y-6 and Y-7).

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

42V AC VoltageFrequency: 50 Hz Supply Current (amps) in air: AC 15 A Weight (kg) Lifted at 140 mm Pole Spacing: AC 10.5
48 V AC VoltageFrequency: 50 Hz Supply Current (amps) in air: AC 13 A Weight (kg) Lifted at 140 mm Pole Spacing: 10.5
110V AC VoltageFrequency: 50 Hz DC Voltage: 12 V Supply Current (amps) in air: AC: 3.5 A DC: 8.5 A Weight (kg) Lifted at 140 mm Pole Spacing: AC: 10.5 kg D
115 V AC VoltageFrequency: 60 Hz Supply Current (amps) in air: AC: 3.5 A Weight (kg) Lifted at 140 mm Pole Spacing: 10.5 kg
230 V AC VoltageFrequency: 50 Hz DC Voltage: 12 V Supply Current (amps) in air: AC: 2 DC: 2.5 Weight (kg) Lifted at 140 mm Pole Spacing: AC: 10.5 kg DC: 32
AC Tangential Field Strength in kA/mPole Spacing: 35mm: 12 kA/m 140mm: 2 kA/m 250mm: 1.4 kA/m

Dimension

USMetric

Weight

USMetric
Weight7.7lbs3.5 kg
