Solinst Model 105 Well Casing and Depth Indicator
Simple and durable, the Well Casing & Depth Indicator is easy to use when detecting metal well casing or measuring total well depth. It offers both of these functions without having to switch out the probe.
The Well Casing & Depth Indicator is useful when determining where metal casing starts and ends in new or existing well constructions, hydrofracturing, and installing packers or other downhole instruments.

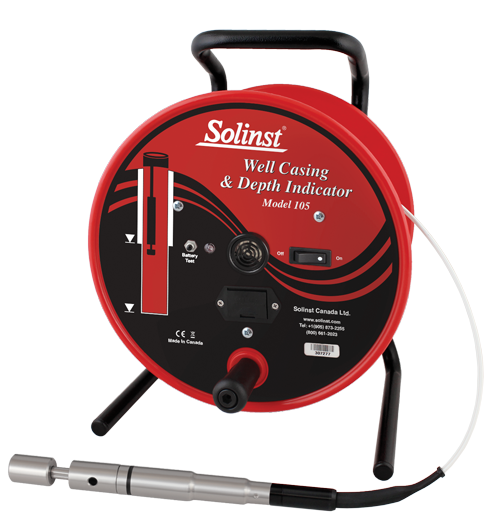

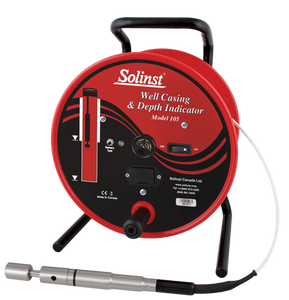

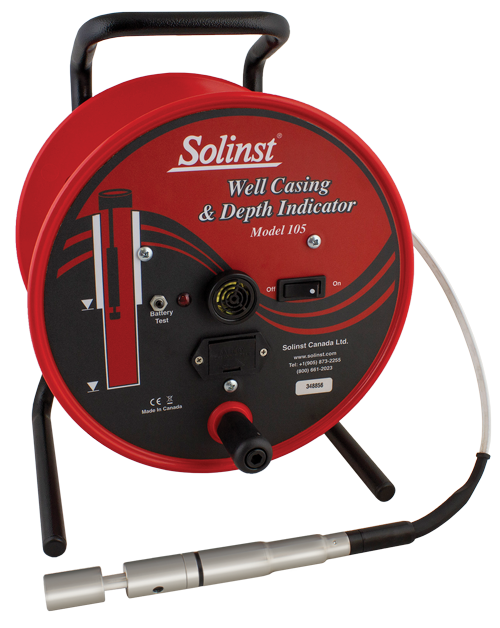

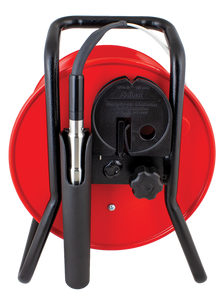

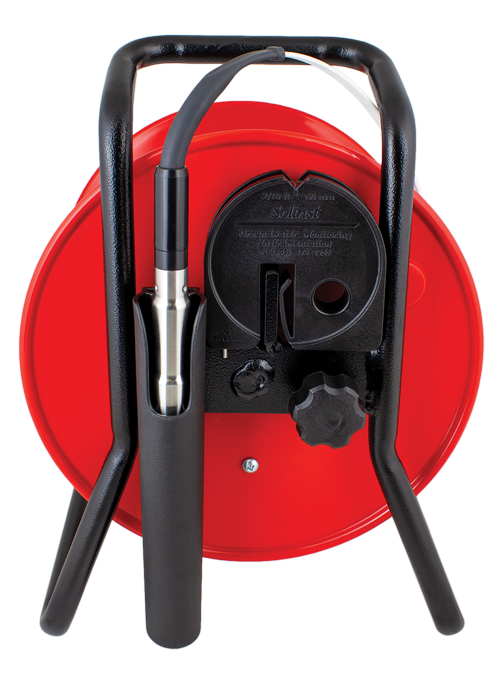

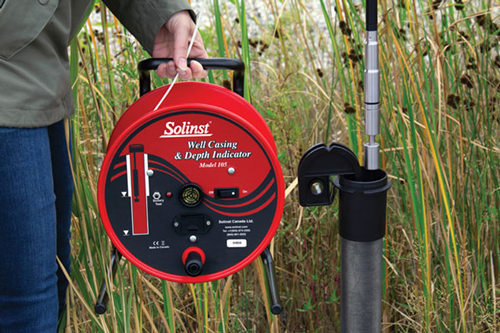

The 105 Well Casing & Depth Indicator uses a dual-function stainless steel probe connected to clearly marked flat tape, fitted on a well-balanced reel.
Well Casing & Depth Indicator Operation
The probe has a strong internal magnetic assembly to detect well casing. When the probe is adjacent to magnetic metal (e.g. steel) a circuit is completed activating the buzzer and light (quick intermittent beeps and flashing red light). When the probe is no longer next to the casing, the signals stop. Depths are read from the tape at surface.
A plunger at the bottom of the probe is used to measure total well depth. The light and buzzer activate when the plunger reaches the bottom of a well and is pushed into the probe body completing a magnetic circuit (slow intermittent beeps and flashing red light). The depth is read from the tape.
The convenient battery test button checks the main circuitry to determine when the battery needs replacing. For easy-access, the battery is housed in a drawer in the front of the faceplate.
Laser Marked Flat Tape
The 105 Well Casing & Depth Indicator uses corrosion and chemical-resistant flat tape. The tape is non-stretch and high in tensile strength to support the heavier 105 Probe. The thick dog bone design prevents adherence to wet surfaces and allows the tape to hang straight. It is also easy to repair and splice. The 10 mm (3/8") tape comes with permanent laser markings each millimeter or every 1/100 ft in lengths up to 600 m (2000 ft).

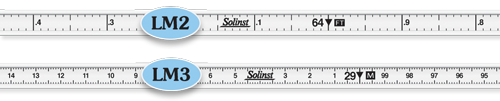

LM2: Feet and tenths: with markings every 1/100 ft.
LM3: Meters and centimeters: with markings every mm
Features:
One probe for both well casing depth indication and total well depth measurement
Uses non-stretch, accurately laser marked flat tape
Tape lengths up to 600 m (2000 ft)
Replacement tapes are interchangeable with other Meters
Rugged design with 3 year warranty
Applications:
Measuring total well depth
Groundwater well installation
Detecting gaps in well casing
Installing telescoping well screen
Packer and downhole instrument installation
Hydrofracturing
Confirming existing well construction
Decommissioning abandoned wells
| Operating temperature of reel | -20°C to +50°C |
| Submerged operating temperature (tape/probe) | -20°C to +80°C |
| Wetted materials (tape/probe) | PVDF, Santoprene, Delrin®, Viton®, 316 stainless steel |
| Probe pressure rating | Fully submersible to depth of all tape lengths |
| Probe weight | ~280 g (10 ounces) |
| Probe size | 22 mm dia., 193 mm long (7/8" x 7.6") |
| Measurements | ±0.06 m (0.2 ft) |
| Reel IP rating | IP64 (dust and splash proof) |
| Power | Standard 9V alkaline battery |
