Solinst Model 103 Tag Line

The Solinst Tag Line uses a weight attached to a laser marked cable or tape, and is principally designed for use during the installation of monitoring wells. The Tag Line also provides a simple method to measure the depth to the bottom of a well. The cable or tape is mounted on a sturdy free-standing reel with a carrying handle, weight holder and brake.

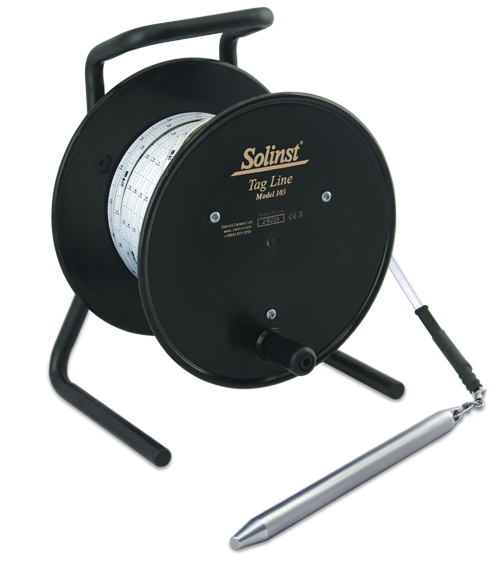

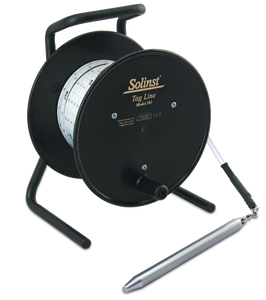

PVDF Laser Marked Flat Tape
The Model 103 Tag Line is also available with 3/8" (10 mm) PVDF flat tape. The tape has a break strength of greater than 220 lbs (100 kg). It has a thick dog bone design that prevents adherence to wet surfaces, and allows it to hang straight.
The tape comes with laser markings every 1/100 ft. or each millimeter. Lengths are 100 ft to 1000 ft. (30 m to 300 m). Other lengths are available by request.

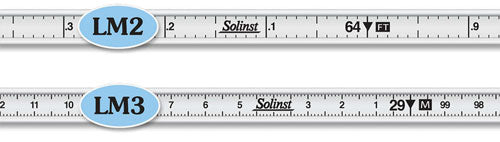

LM2: Feet and tenths: with markings every 1/100 ft.
LM3: Meters and centimeters: with markings every mm

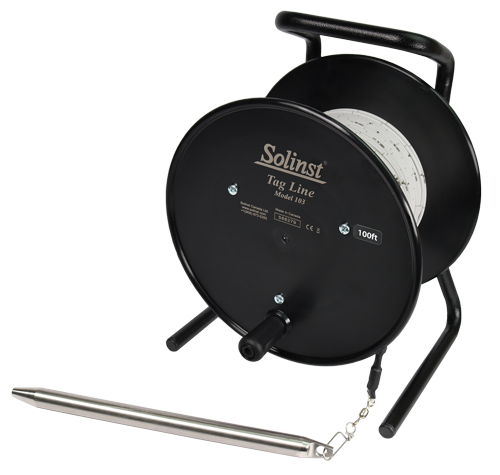

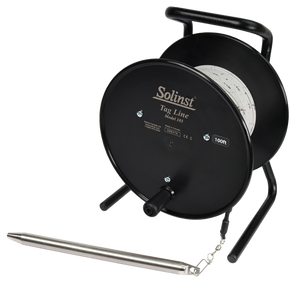

New PVDF Laser Marked Cable
The Tag Line uses durable PVDF coated 1/16" (1.6 mm) stranded stainless steel wireline with a minimum break strength of 270 lbs (122 kg). It comes in standard lengths of 100 ft. to 1000 ft. (30 m to 300 m). Other lengths are available by request.

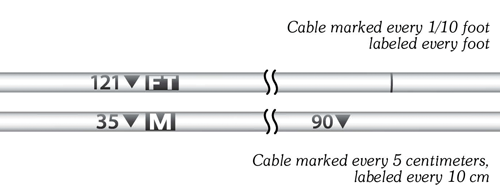

Markings are clearly and accurately laser etched every 1/10 foot or every 5 centimeters of the cable. The laser markings allow the cable to run smoothly over the Tape Guide.

The Tag Line is perfect for use when installing Solinst Model 403 CMT Multilevel Systems, as you can easily measure the depth to the top of a backfill sand or bentonite layer during the completion of a well. It is also ideal as a multipurpose marked support line.
