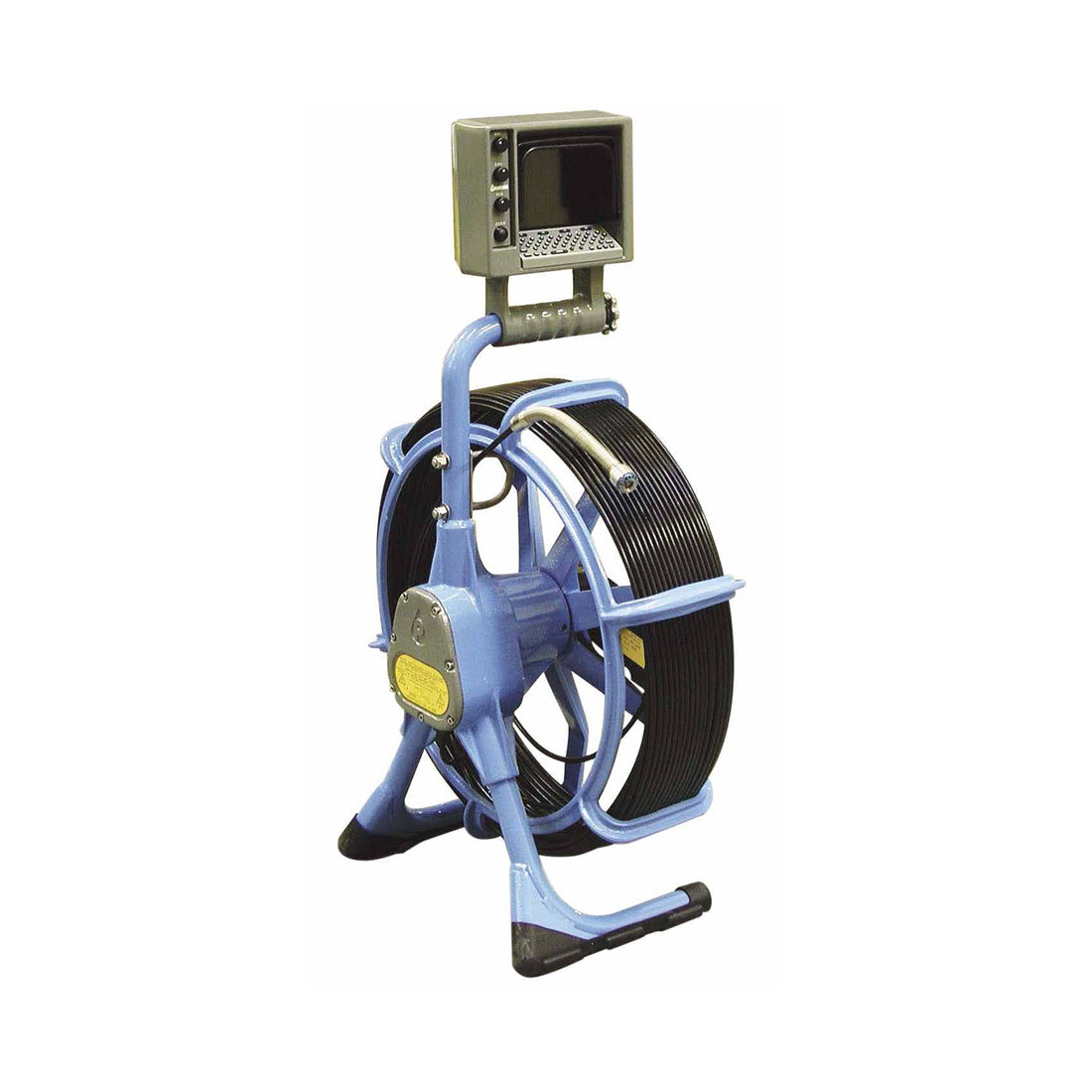

Pearpoint P374 Intrinsically Safe Pushrod Camera
Pearpoint

Pearpoint P374 Intrinsically Safe Pushrod Camera

Pine Item #54161

Pine specialize in drainage equipment hire and rental of drain inspection and survey kit. The P374 IS from Pearpoint is an Intrinsically Safe push-rod camera system ideal for inspecting pipes and drains ranging from 25mm to 100mm (1' to 4'). Featuring an integrated 163mm (6.4') color LCD screen and QWERTY keyboard, the P374 also boasts composite video in / out to enable external recording of your inspections. Designed for applications ranging from industrial pipework inspection to planned utilities maintenance and site surveying, the P374 is the ideal rental solution for drain surveys. Constructed from high grade stainless steel and waterproof to IP68 (11Bar), the camera head is fitted with white LEDS and CMOS Camera technlogy for improved reliability and performance.



Features:

60m reinforced pushrod

Intrinsically Safe to EEx ia IIC T6 for Zone 0 Hazardous areas

Integrated high resolution screen & QWERTY keypad

Waterproof to IP68 (11Bar)

CMOS camera technology and white LEDS for increased performance and reliability

Built-in electronic rod-counter

Applications:

60m reinforced pushrod

Intrinsically Safe to EEx ia IIC T6 for Zone 0 Hazardous areas

Integrated high resolution screen & QWERTY keypad

Waterproof to IP68 (11Bar)

CMOS camera technology and white LEDS for increased performance and reliability

Built-in electronic rod-counter

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Rod Length:61m (200ft)
Inspection Capacity:25mm to 100mm (1\" to 4\")
Focal Length:6.35mm (0.25\") to infinity manually adjustable
Resolution:360TVL 510 x 492 pixels
Sensor Transfer Type:CMOS
Sensitivity:3 Lux
Viewing Angle:44o
Camera Construction:300 series Stainless Steel
Camera Dimensions:24mm x 31mm / 0.94\" x 1.22\" (Dia. x length)
Control Unit Power:110 - 240V AC or 12V DC
Video In / Out:Compositer with BNC Connectors
Waterproofing:IP68 - 11Bar (Camera Head) IP55 (Coiler)
Safety Rating:EEx ia IIC T6. Camera: IS/I/1/ABCD/T6 Coiler: AIS/I/1/ABCD
Coiler Dimensions:700 x 600 x 300mm (27.5 x 23.5 x 12\")
Weight:21Kg

Dimension

USMetric
Dimensions27.5 x 23.5 x 12\"21kg \"700 x 600 x 300mm

Weight

USMetric
Weight-46 lbs
