Eddyfi Silverwing Scorpion2 Crawler

Pine Item #56098
Features:

BEST ULTRASONIC PERFORMANCE - Scorpion2 is equipped with the best ultrasonic electronics and Software the industry has to offer. With its advanced filtering it can inspect materials 2.5–100 mm (0.1–4 in) quickly and accurately. The software enables unique ultrasonic gate processing such as floating and tracking gates ensuring correct wall thickness measurements under most circumstances.

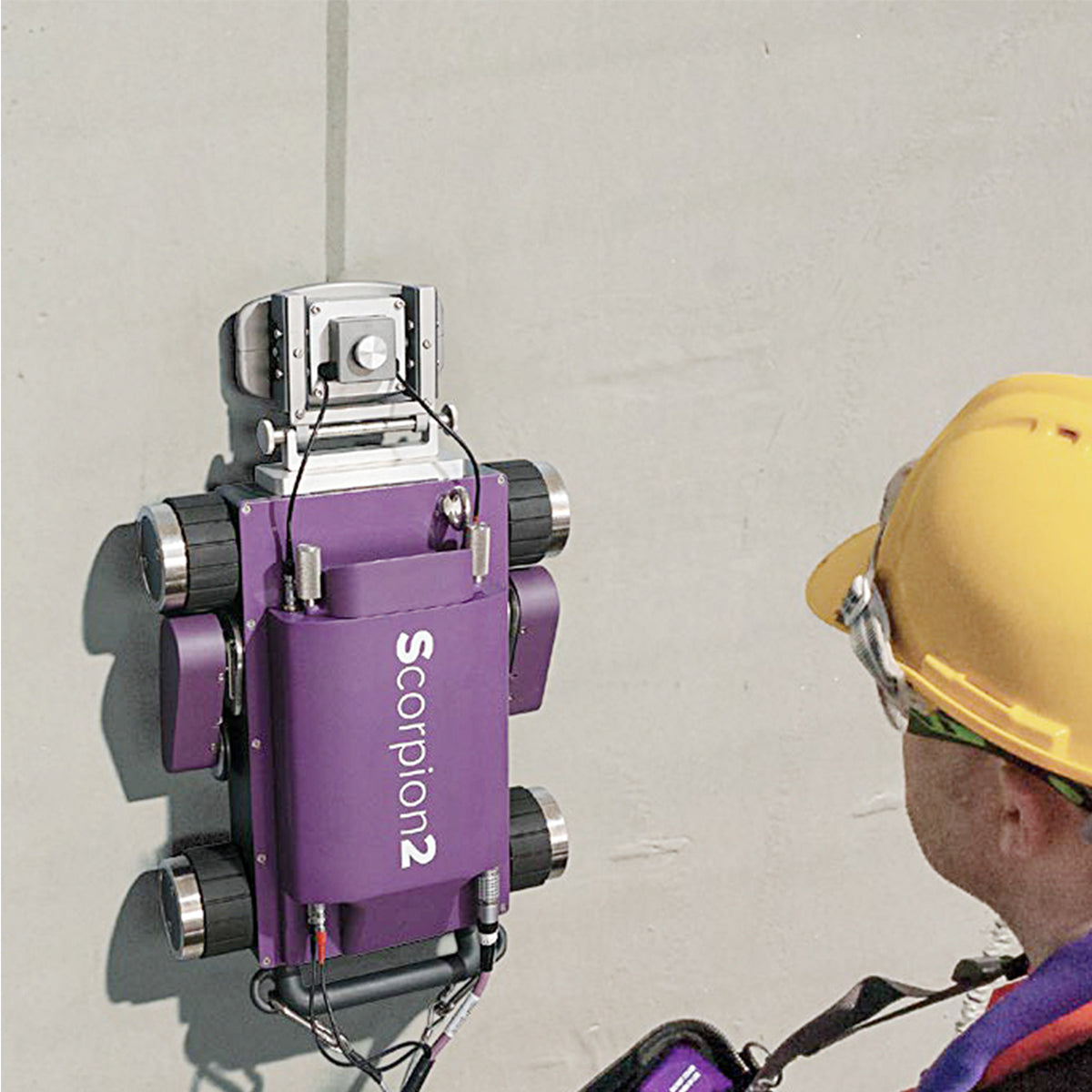

CRAWLER UNIT - The battery-powered crawler is designed to go where no one can go. The simple controls and long umbilical minimize the need to handle the crawler. Combined with speeds that can reach 180 mm/s (7 in/s) you can complete inspections faster and more efficiently than ever before.

PROBE DESIGN - The unique dry-coupled ultrasonic wheel probe of Scorpion2 removes the need for additional couplant or a constant water supply unlike typical ultrasonic probes. It uses a twin crystal ultrasonic probe design with a unique rolling face.

PROBE CARRIAGE - The carriage enables recording thickness measurements within 25 mm (1 in) of weld caps making inspecting critical heat affected zones (HAZ) possible. The four independently powered magnetic wheels with their treaded tires profer Scorpion2 the advantages of easily driving over 12.7 mm (0.5 in) bumps and excellent grip in any condition.

BATTERY POWER - Scorpion2 comes with two lithium-ion batteries for continuous on-site operation. The batteries reside inside the crawler which removes the need for a separate power pack on the ground while reducing the umbilical and the overall system weight.

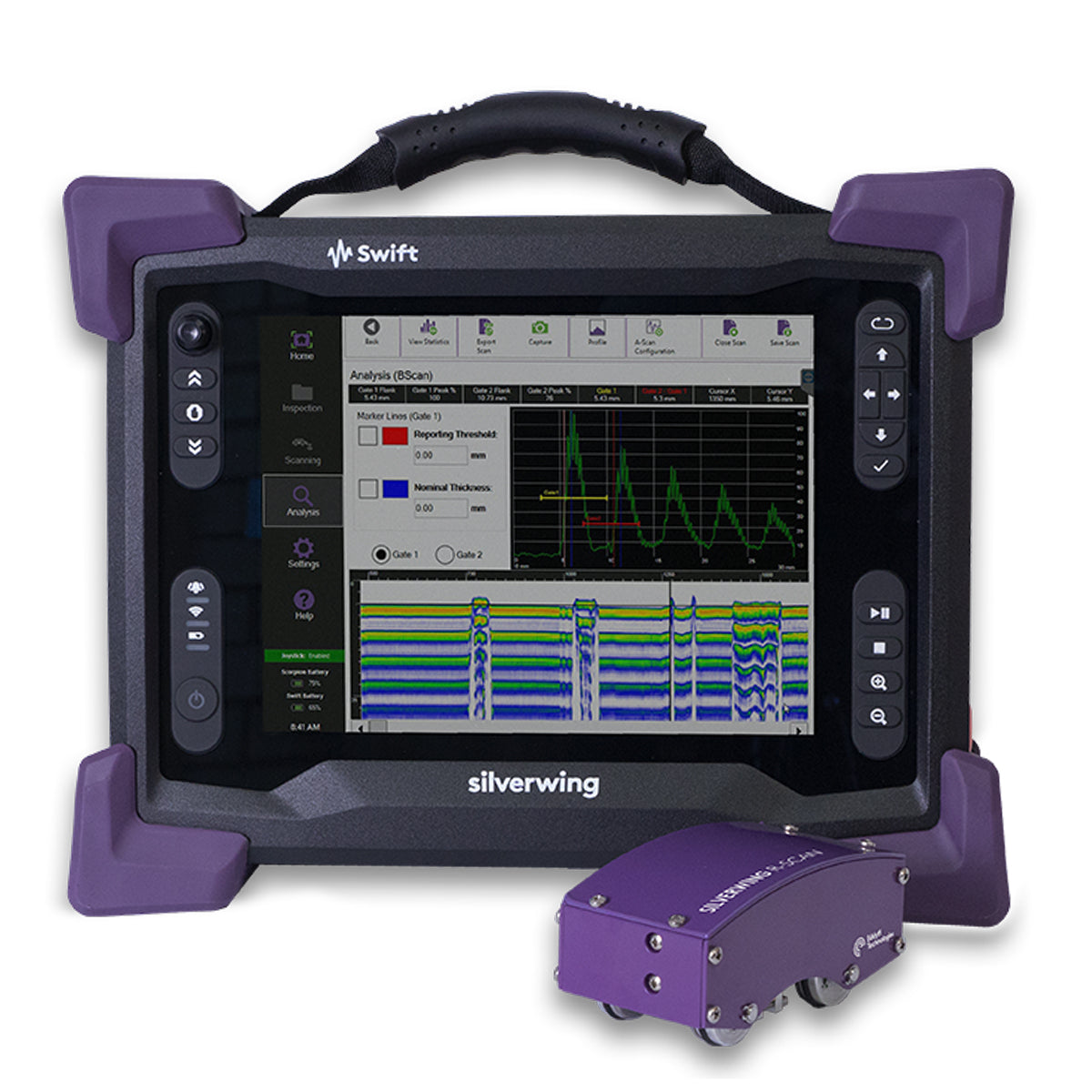

DATA ACQUISITION SOFTWARE The Swift B-scan acquisition software features several powerful data review reporting and printing tools. You can easily review saved data at any time through the active A-scan and B-scan displays. Simply moving the cursor on any part of a B-scan profile shows its corresponding A-scan trace. You can display an adjustable reporting threshold indicator on the B-scan profile which will help you quickly identify reportable defects and rapidly analyze the complete scan. The full amplitude B-scan mode helps you characterize wall loss which in turn allows for a more detailed post-inspection analysis and accurate corrosion assessment. Inspection data can simply be exported as CSV A-scan and B-scan image or CMX files which you can import into the CMAP inspection management software. When you do all the scans are automatically positioned based on X Y coordinates providing a complete overview of the inspection.

Complete UT crawler system with full A-scan capture

Permanently stored data for recall to assist with RLA & RBI trend forecasting

No couplant or paint removal required

Aid to reduce maintenance costs by minimizing the use of scaffolding.

High resolution B-scan image.

Applications:

Offshore structures

Spherical tanks

Marine vessels

Vertical storage tanks (shell roof internal support stanchions)

Horizontal storage tanks (shell)

Pipelines

Pressure vessels

Tank trucks

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

PowerType Lithium-ion rechargeable DOT compliant
Maximum scan speed7 in/sec (180 mm/sec)
Drive active steer4 independent
Adhesion4 x neodymium iron boron magnetic wheels
Near surface resolution0.1 in / 2.5 mm
IP ratingDesigned for IP62
Operating temperature32–104°F / 0–40°C
External circumferential diameter10 ft / 3 m
Minimum material thickneww0.18 in / 4.7 mm
Maximum material thickness4 in / 100 mm
Maximum paint thickness0.04 in / 1 mm
Maximum step weld.5 in / 12.7 mm

Dimension

USMetric
Dimensions19.5 x 11.6 x 5.1 in494 x 274 x 130 mm

Weight

USMetric
Weight with batteriese23 lb10 kg
