Magnaflux Y2 AC YOKE 110-115 V/50-60HZ
Pine Item #53174

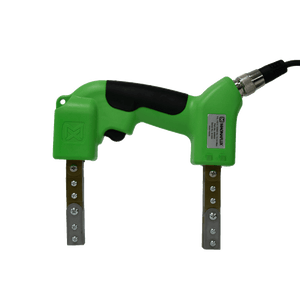

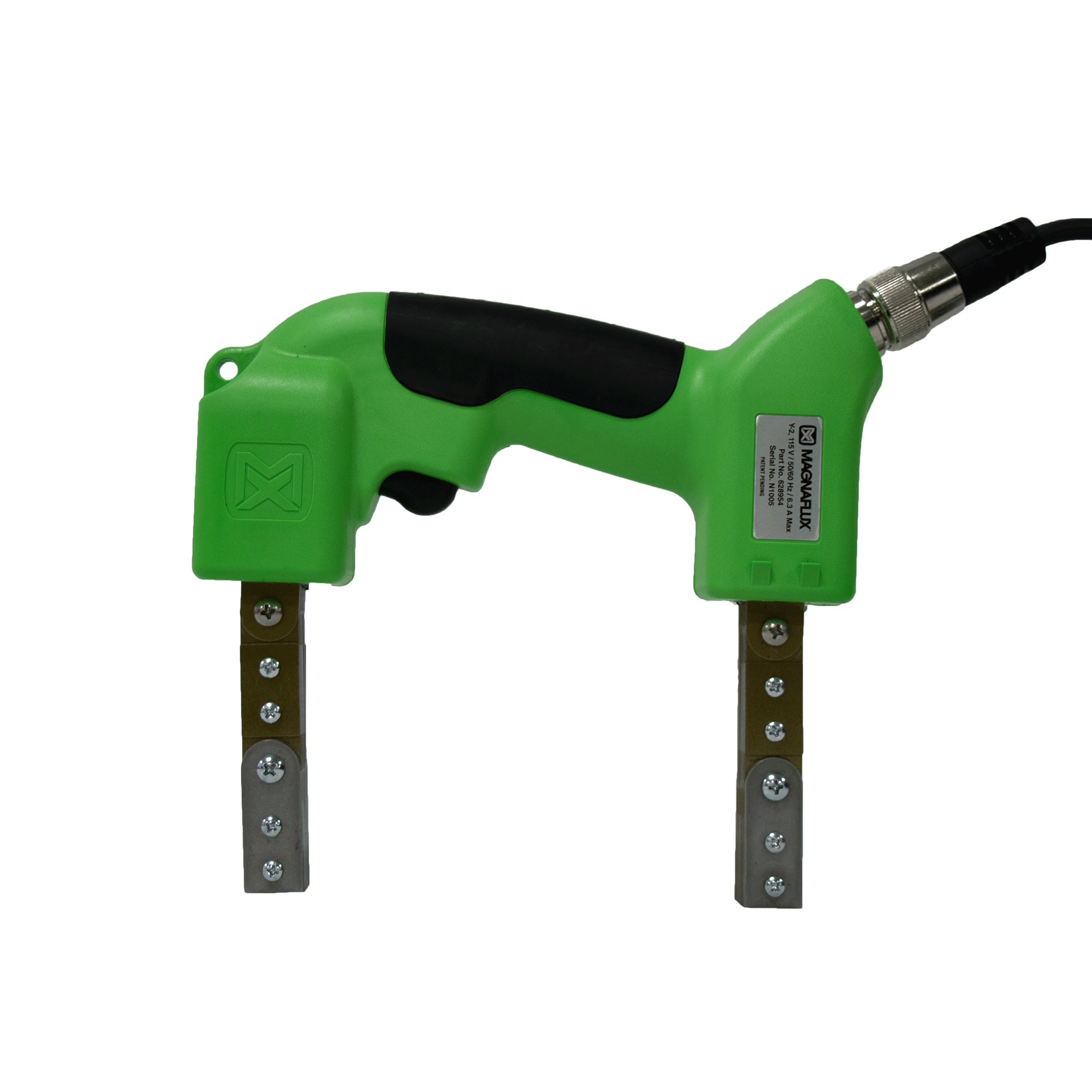

The Y-2 is an AC electromagnetic yoke, ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the Y-2 is designed for the rugged demands of field inspection. Featuring a field swappable cord and isolated trigger switch; the Y-2 is easily serviceable because a severed cord should not stop a job from getting done.

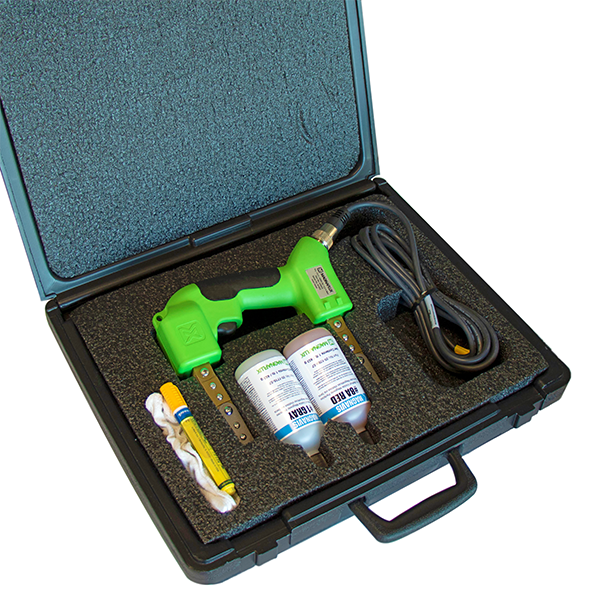

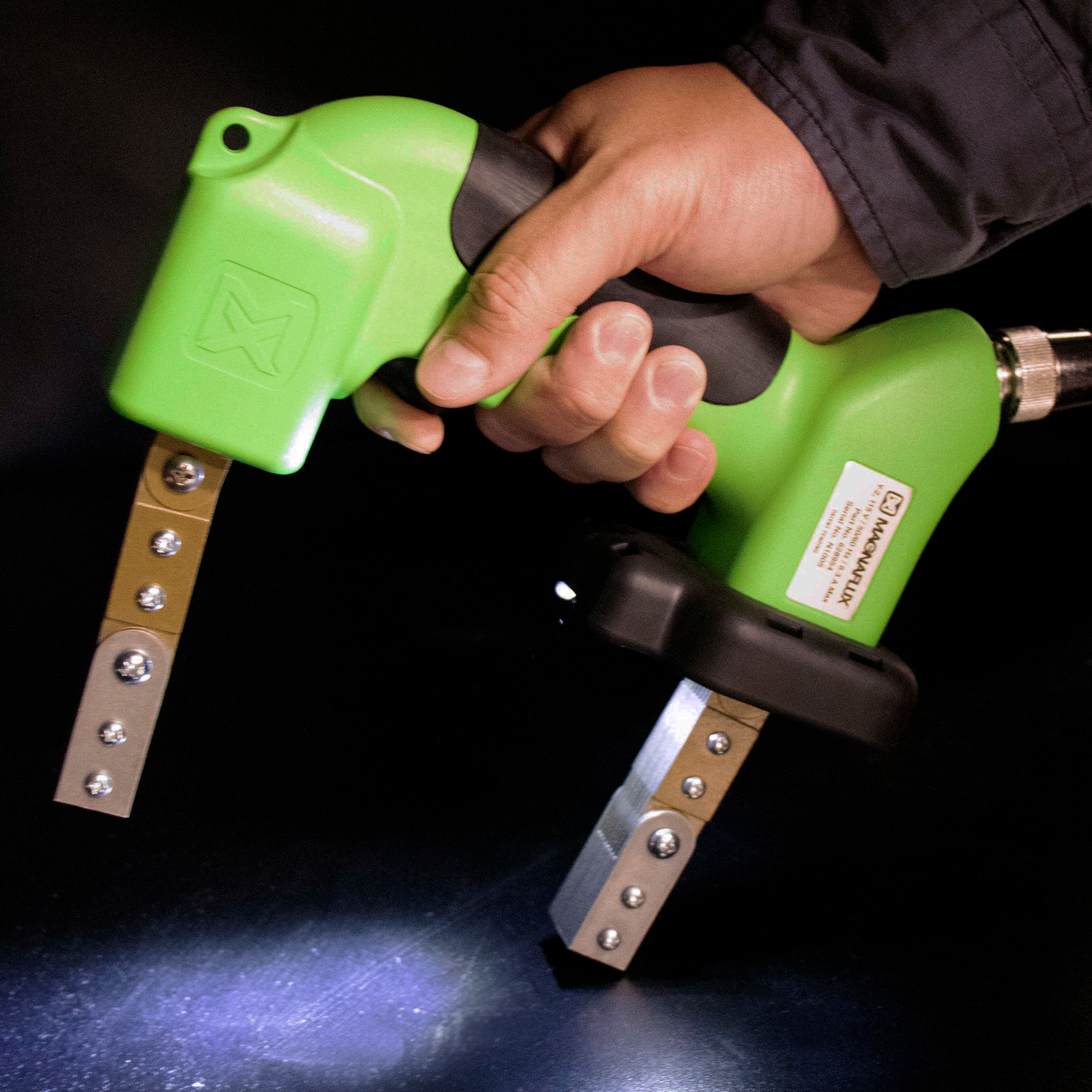

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including #1 Gray and #8A Red magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case
Features:
Ergonomic, light-weight design

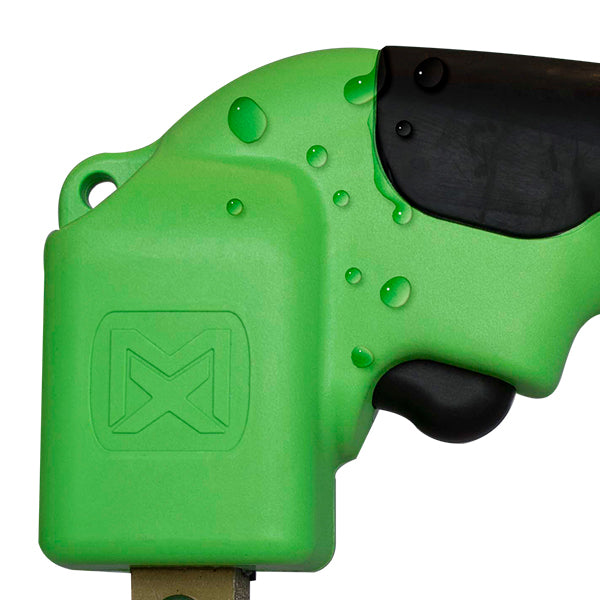

IP54 sealed housing resists dust and water

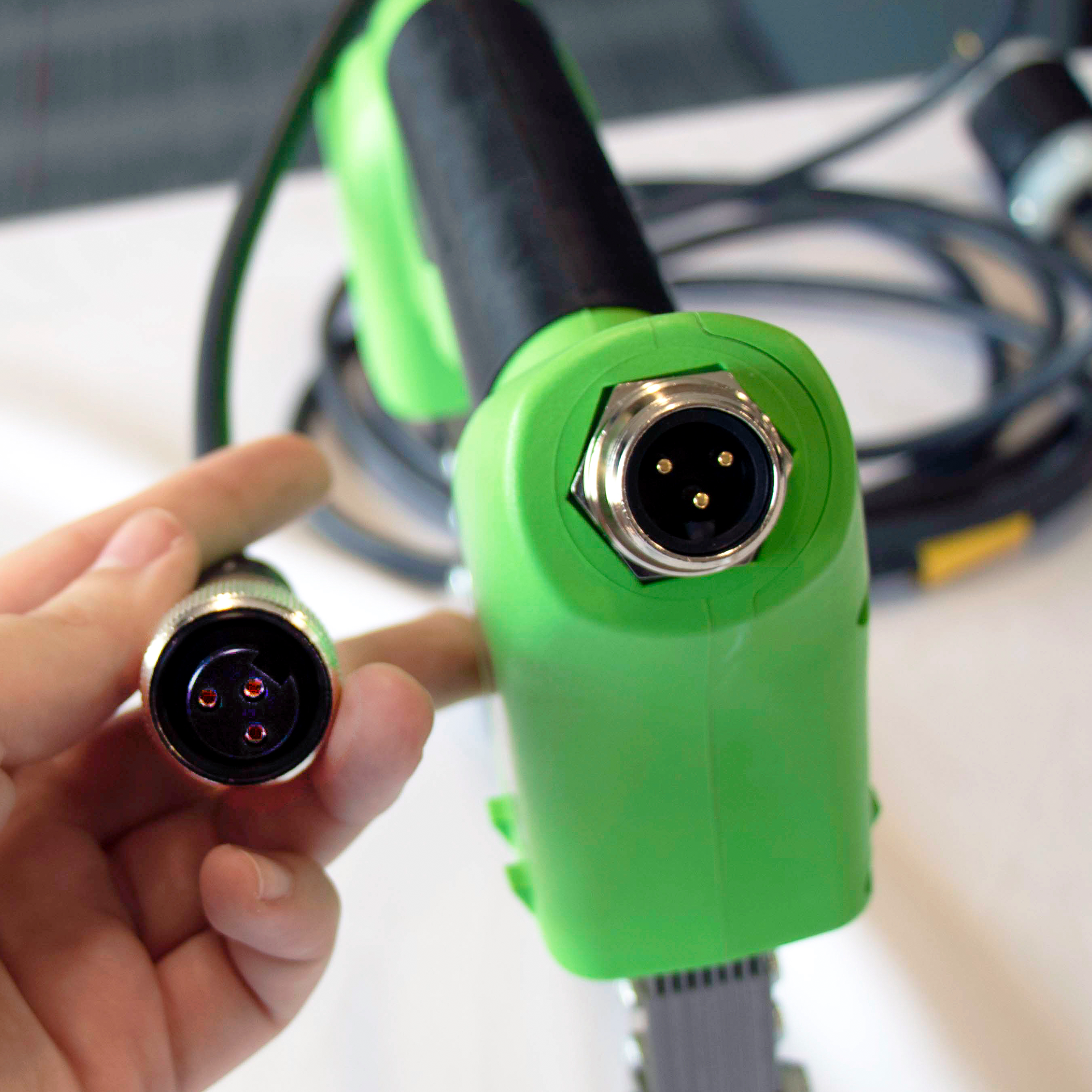

Field-swappable power cord
Isolated, replaceable trigger switch
Steel shields for leg protection
Exceeds ASTM lifting specifications
Convenient carrying case supplied with all
yoke shipments
Optional LED yoke light lasts longer and is
more intense compared to traditional bulbs
Applications:
Field testing
Difficult to reach areas
Spot inspections
In-service inspections
Weld inspection
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
Videos
Specifications
| Electrical Requirements (Models): | 628554, 630445, 628555, 628560 |
| Voltage: | 110–115V, 60 Hz (4.3 A max) or 50 Hz (6.3 A max); 220–230V, 50/60 Hz (2.6 A max) |
| Waveform: | AC |
| Tangential Field Strength: | > 2 kA/m at midpoint between legs/poles |
| Lifting Force: | > 10 lb / 4.5 kg (44 N) |
| Duty Cycle: | 50% (maximum on-time of 90 seconds) |
| Ingress Protection (IP Rating): | IP54 (per IEC 60259) |
| Certifications: | EN/EC CE, WEEE, RoHS, UKCA |
| Weight: | 4.8 lb / 2.2 kg (Yoke only), 6.2 lb / 2.8 kg (with cord) |
| Leg/Pole Span: | 2.5 – 10.5 in / 6.4 – 27 cm |
| Contact/Pole Size: | 1.00 x 1.75 in / 25 x 19 mm |
| Cord Length: | 12 ft / 3.6 m, detachable |
