Solinst

IP- 100'- Solinst 122 Interface Meter

Pine Item #51744

PFAS Accepted Equipment

#51745 200 ft., #51747 300 ft.

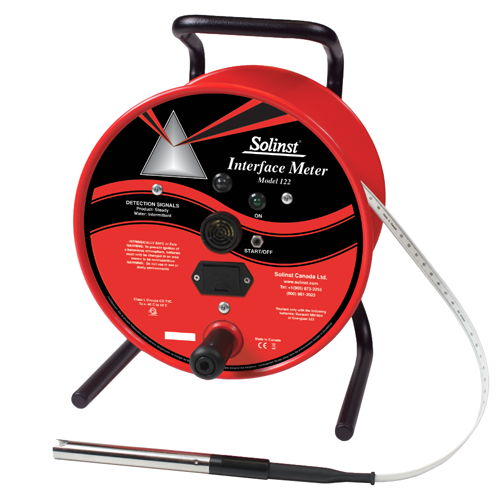

The Model 122 Oil/Water Interface Meter measures floating or sinking hydrocarbon layers in water (LNAPL and DNAPL).

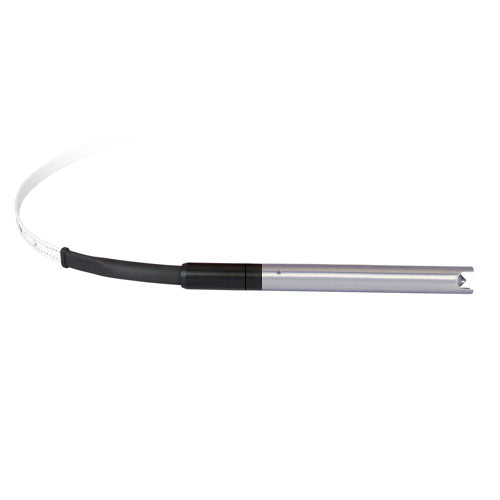

The Model 122 P8 16 mm (5/8") narrow pressure-proof probe clearly detects when it enters product or water, with an accuracy of 1 millimeter or 1/200 ft. It is excellent in almost all product monitoring applications.

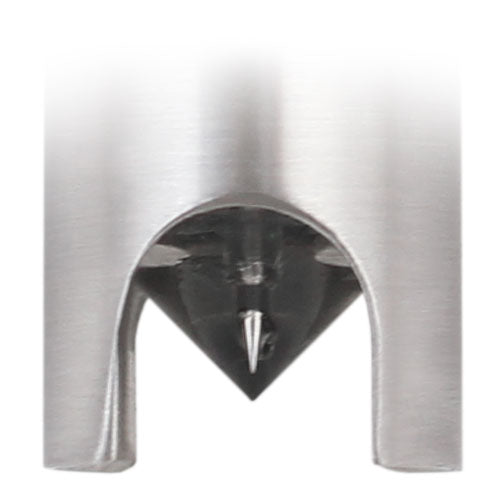

It uses optical refraction and electrical conductance to determine product and water interfaces. A continuous light and tone indicate a non-conductive product. Intermittent signals indicate water.

Features:

5/8″ (16 mm) diameter probe

Automatic shut off after 10 minutes

Certified intrinsically safe

Easy access batteries: minimum 120 hours of life

Sensor accuracy to 1/200 ft. Or 1.0 mm

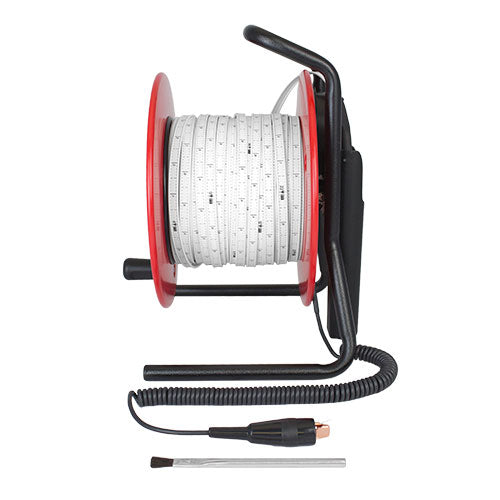

Tape uses stranded stainless steel conductors

Applications:

Model 122 Interface Meters have been approved for use in explosive environments. They are suitable for use in hazardous locations Class I, Div 1, Groups C&D based on standards of the Canadian Standards Association (CSA)

The Model 122 Interface Meter with laser marked tape is now ATEX certified under directive 94/9/EC, as II 3 G Ex ic IIB T4 Gc

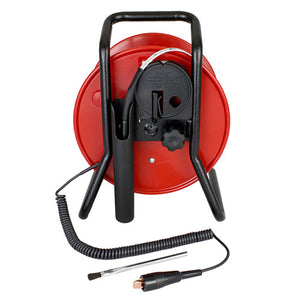

The grounding strap is a safety essential when the meter is used in potentially explosive environments. It also ensures that the electronics are properly protected

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

=
