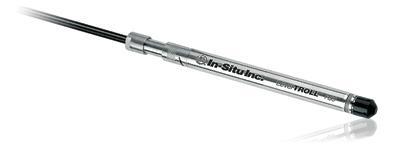

In-Situ Level TROLL 700 Data Logger 15 psig
Pine Item #52050
The Level TROLL 700 is the next breakthrough for professional water level monitoring applications single or multi-step aquifer testing, precision river gauging, tidal influence studies, wave characterization, geothermal research, storm-event monitoring, and more!
Features:
New logging modes - Linear Linear Average Event True Logarithmic Step Log Fast Linear
Super accurate sensors - record minute changes in water level and temperature
Takes samples as fast as 0.25 seconds (4 samples/sec)
Applications:
New logging modes - Linear Linear Average Event True Logarithmic Step Log Fast Linear
Super accurate sensors - record minute changes in water level and temperature
Takes samples as fast as 0.25 seconds (4 samples/sec)
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals & Data Sheets
Videos
| Operating Temperature Range | -20 to 80C |
| Output Options | Modbus (RS-485/232) SDI-12 4-20mA |
| Housing Material | Titanium |
| Nose cone material | b |
| Memory/Data Records | 4 BM/ 350000 + |
| Accuracy FS | +/- 0.05% (15C) |
| FS=Full Scale | +/- 0.1% (-5 to 50C) +/- 0.25% (-20 to -5C & 50 to 80C) |
Dimension
| US | Metric | |
| Dimensions | (.072 in) OD (8.5 in) Long | (18.3 mm) OD (21.6 cm) Long |
Weight
| US | Metric | |
| Weight | 0.43 lb | 0.197 kg |
