Drager CMS Analyzer
Drager

Drager CMS Analyzer

Pine Item #51372

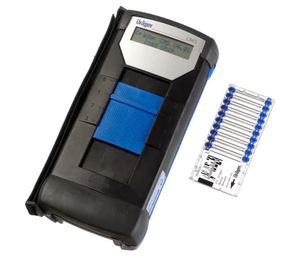

The world's only Chip Measurement System (CMS) makes spot measurements as easy as 1, 2, 3: insert chip - start measurement - read measurement result on the LCD display. The Drager CMS combines the advantages of the Drager-Tubes ® with those of an optoelectronic analysis system. Two components define the system: the analyzer and the substance-specific chip.

The Drager Chip Measurement System (CMS) is one of the most accurate and reliable portable detection systems currently available for measuring spot concentrations.

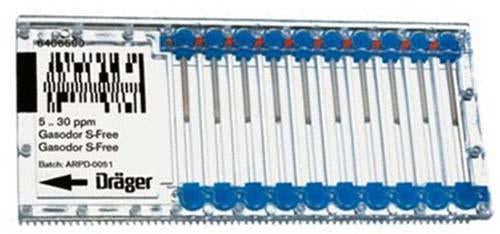

It combines an electronic based analyzer with substance specific chips. Each substance specific chip contains 10 individual tests/capillaries, these are filled with a reagent system and is based on Draegers 60+ years experience in colometric chemistry. More than 55 gas-specific chips are available. The CMS Analyzer can store the results of 50 measurements by the DataRecorder integrated within the analyzer, together with relevant data, i.e. measurement substance, concentration, date, time and site of measurement.

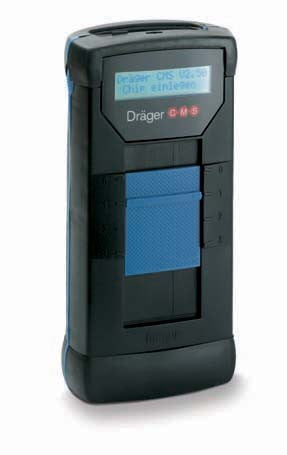

The analyzer contains a pump mechanism, microprocessor, optics, and software. The optics read the barcode on an inserted chip and menu-driven instructions for the test appear on the analyzer's LCD. Each analyzer includes a data recorder that will hold the last 50 determinations in memory along with the time/date of sample and a location code.



Features:

Accurate and chemical specific

Integrated flow sensor for constant mass flow

Resistant to temperature and humidity effects

Precision optics detect the smallest reaction

Factory-calibrated chemical-specific chips

No interfering compounds

Reliable

Easy-to-use

LCD text in English German French or Spanish

Economical

Applications:

Worker Exposure

Environmental Controls

Process Controls

Gas and Vapor Measurement

Confined Space Entry

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Data CapacityStores up to 50 measurements
Power Supply4 x 1.5 Volt (AA) alkaline batteries
Battery Duration450 minutes of analysis time (typically greater than 100 measurements)
Operational Temperature32-104°F (0-40°C)
DimensionsUS: 8.0 x 3.6 x 1.7 in. Metric: 20.3 x 9.14 x 4.3 cm
