FROG-4000 VOC Analyzer
FROG-4000 VOC Analyzer
Defiant Technologies

FROG-4000 VOC Analyzer

Pine Item #51170

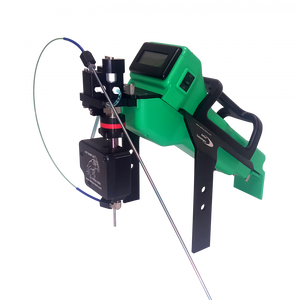

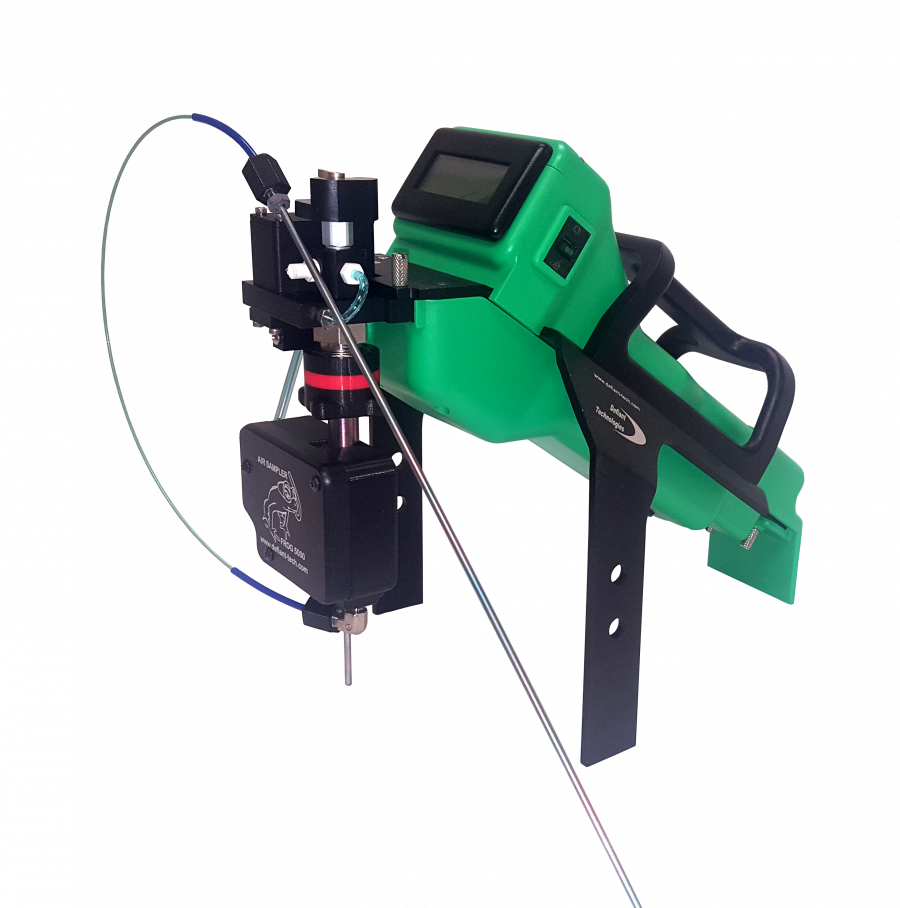

Defiant Technologies' FROG-4000TM is a hand held micro system for detection of benzene, toluene, ethylbenzene, and xylenes (BTEX) and other volatile organic compounds (VOCs) in water, air, and soil.

The FROG-4000TM miniaturizes components used for analytical chemistry. The system incorporates a micro preconcentrator that is coated with a designer nanoporous material. The micro preconcentrator has an integrated heater for thermal desorption. Defiant's micro GC separates target analytes in less than 5 minutes. The micro GC column also has an integrated heater for temperature ramp chromatography. Ramping the temperature reduces the analysis time and aids in the separation of late eluting compounds. The detector is a miniature PID (10.6 eV). Chemical name and concentration can be viewed on FROG-4000's LCD display, or the user may watch the chromatogram real time on a computer.   FROG-4000TM includes a micro-SD card to store results from the field. Data can be downloaded from the SD card for further analysis at a later time.



Features:

Designed for portable analysis of VOCs in water soil and air.

Can be used as a portable GC PID for environmental testing in the field in a mobile lab portable lab or in a commercial environmental lab.

System has a micro preconcentrator micro gas chromatographic (GC) column and a photoionization detector (PID).

FROG-4000 scrubs ambient air to use as the carrier gas.

Display provides VOC identification and concentration.

SD cards stores field analyses.

Chromatography software for data analyses.

Applications:

Air Vapor Intrustion

Environmental Monitoring

IAQ/Industrial Hygiene

Process Monitoring

Lab Analysis

Field Analysis

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Display2.1 x .75 inch LCD
Carrier GasNone ambient air is carrier gas
Cycle TimeFive Minutes
Computer InterfaceStandard RS-232 port or USB.
DimensionsUS: 10 x 7.5 x 14.5 in. Metric: 25.4 x 19.1 x 37 cm
WeightUS: 4.8 lb. Metric: 2.2 kg
Interface:Standard RS-232 port
Battery Life:Six hours, or external power
Chemical Capabilities:MTBE/BTEX, TCE/PCE, Alcohols/Ketones, Naphthalene, Other VOCs
DimensionsUS: 10 x 7.5 x 14.5 in. Metric: 25.4 x 19.05 x 36.83 cm
WeightUS: 4.8 lb. Metric: 2.17 kg
Manuals & Data Sheets
