VanEssen Cera-Diver
VanEssen Cera-Diver
Pine Environmental

VanEssen Cera-Diver

Pine Item #51941

Monitoring groundwater under potentially corrosive conditions, such as brackish water and seawater, requires a robust and durable datalogger.

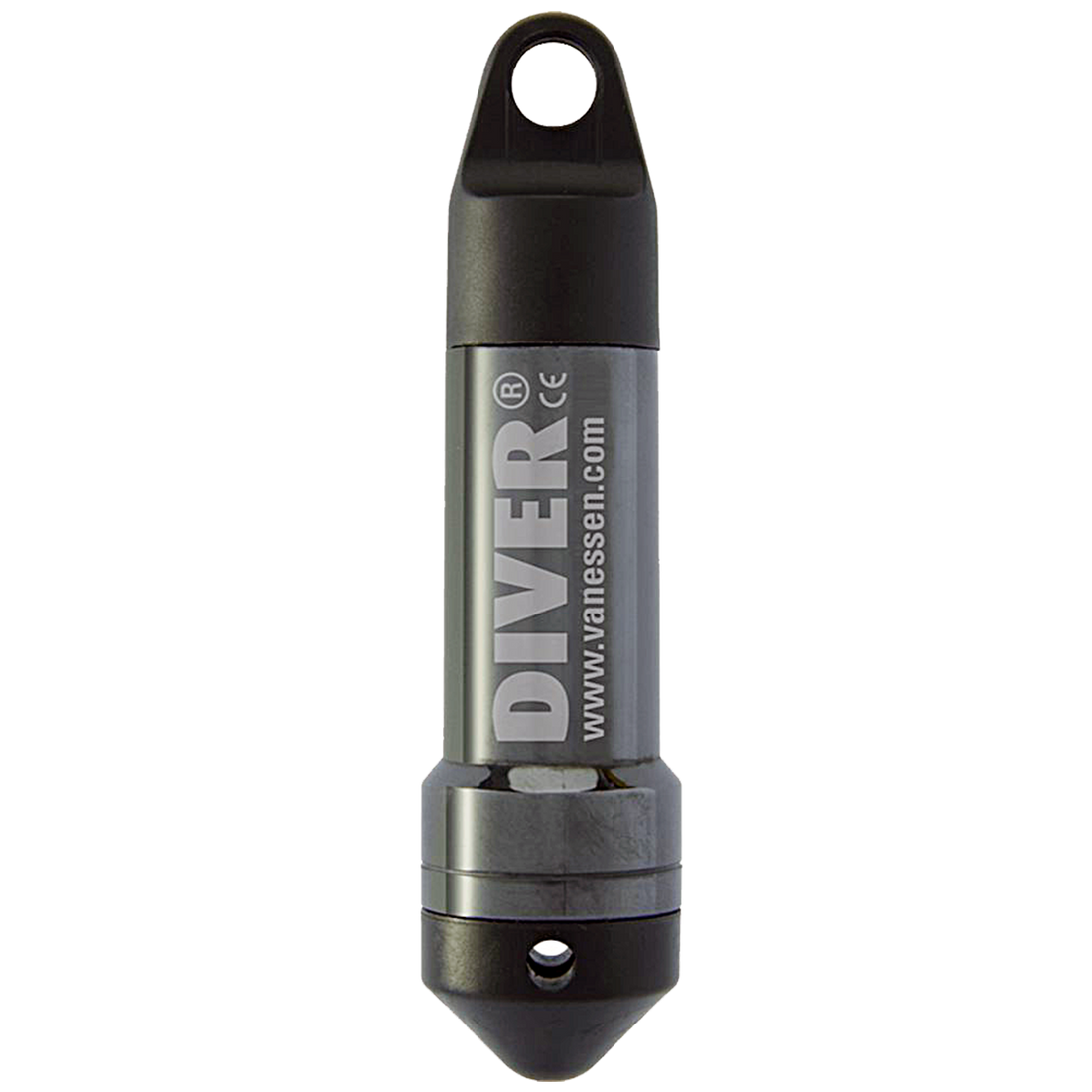

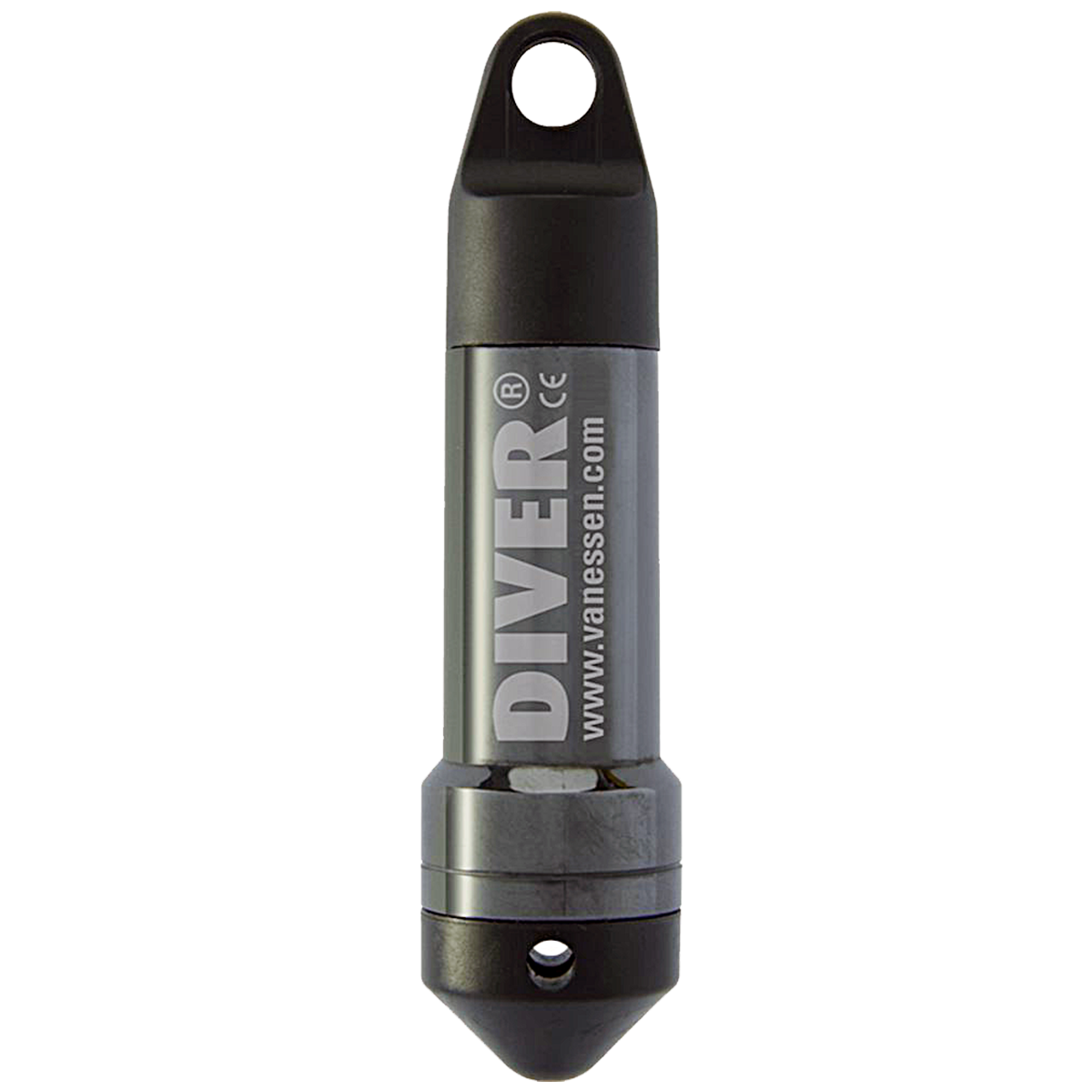

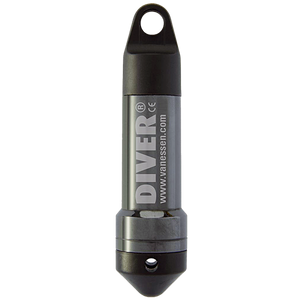

The ceramic-shelled Cera-Diver is designed specifically for such environments. This highly reliable and compact Diver measures groundwater levels with a typical accuracy of ±0.05% full scale.

In addition to its rugged casing, the Cera-Diver’s memory capacity can store up to 48,000 measurements (date/time, pressure and temperature) – almost one measurement every ten minutes for an entire year.

The Cera-Diver has the following sample methods: fixed length intervals, event dependent, averaging and pumping test.

The Cera-Diver is available in the following pressure ranges: 10 m, 20 m, 50 m and 100 m.

Features:

Innovative ceramic housing technology

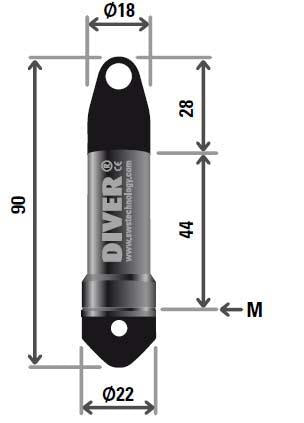

Compact size: Ø 22 mm - length 90 mm

Various measurement methods

48000 records of time stamp pressure and temperature

30-Point Pressure Factory Calibration

Applications:

Saltwater intrusion projects

Leachate monitoring at landfill sites

Monitoring groundwater and surface water

Monitoring stored brines and reclaimed waste water

Estuary and wetlands monitoring

Groundwater monitoring network automation

Aquifer storage and recovery projects

Groundwater monitoring projects

Mining: - Tailings | Environmental | Slope stability

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

ModelDI710
Range100
Accuracy±5.0
Resolution2.0
