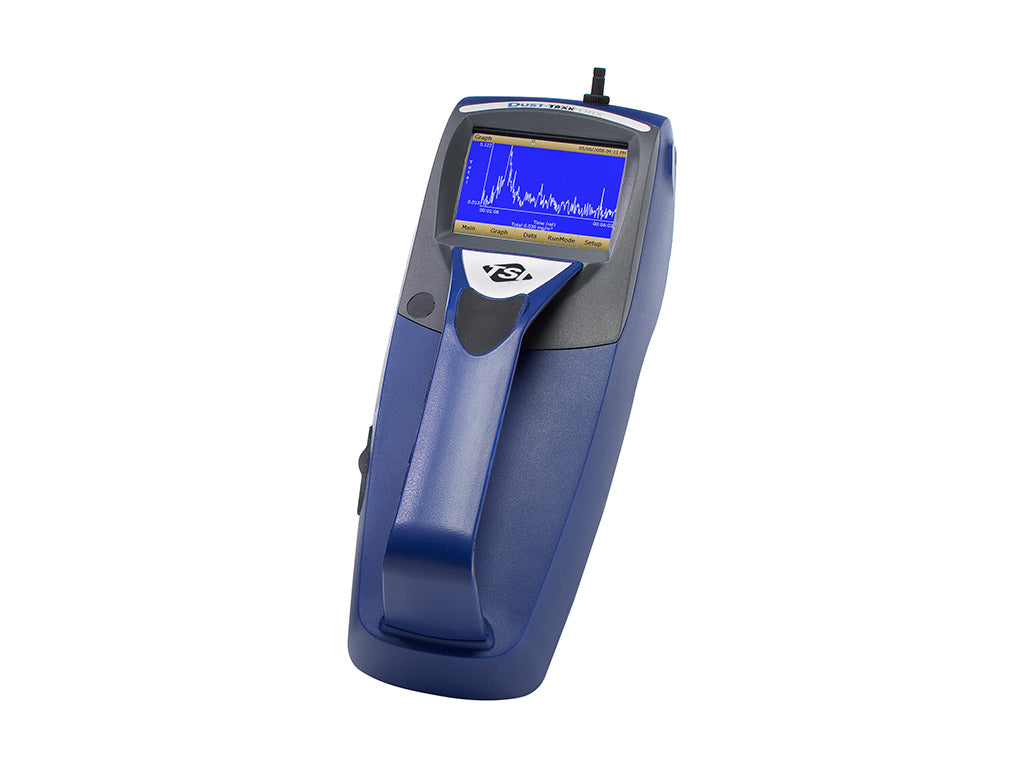

TSI DUSTTRAK DRX Handheld/Portable 8534 Dust/Aerosol Monitor

Pine Item #51362

Real-time dust monitoring takes a giant leap forward! Only the   DUSTTRAK™ DRX Aerosol Monitor 8534 can simultaneously measure both mass and size fraction - no other monitor can do both. The DUSTTRAK DRX handheld monitor is a battery operated, data-logging, light-scattering laser photometers that gives you real-time aerosol mass readings. It uses a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance.

It is suitable for clean office settings as well as harsh industrial workplaces, construction and environmental sites and other outdoor applications. The DustTrak DRX monitor measures aerosol contaminants such as dust, smoke, fumes and mists.


Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1 PM2.5 Respirable PM10 and Total PM size fractions

Lightweight and portable

Manual and programmable data logging functions

Single point data logging capability

Handheld Unit

Aerosol Concentration range 0.001 to 150 mg/m3


Industrial/occupational hygiene surveys

Indoor air quality investigations

Point source location monitoring

Baseline trending and screening

Engineering control evaluations

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote


Technical Specifications

Log IntervalUser adjustable 1 second to 1 hour
Data Logging5 MB of on-board memory (>60000 data points)\n45 days at 1 minute logging interval
Time ConstantUser adjustable 1 to 60 seconds
Operational Humidity0 to 95% RH non-condensing
Storage Temp-4 to 140°F (-20 to 60°C)
Operational Temp32 to 120°F (0 to 50°C)
Temperature Coefficient#ERROR!
Flow Accuracy±5% of factory set point internal flow controlled
Flow Rate3.0 L/min
Zero Stability±0.002 mg/m3 per 24 hours at 10 sec time constant
Resolution±0.1% of reading or 0.001 mg/m3 whichever is greater
DisplaySize Segregated Mass Fractions for PM1 PM2.5 Respirable PM10 and\nTotal. All displayed
Aerosol Concentration Range0.001 to 150 mg/m3
Particle Size Range0.1 to ?15 µm
Sensor Type90° light scattering
DimensionsUS: 5.3 x 8.5 x 8.8 in. Metric: 135 x 216 x 224 mm
WeightUS: 3.5 lb. Metric: 1.6 kg
