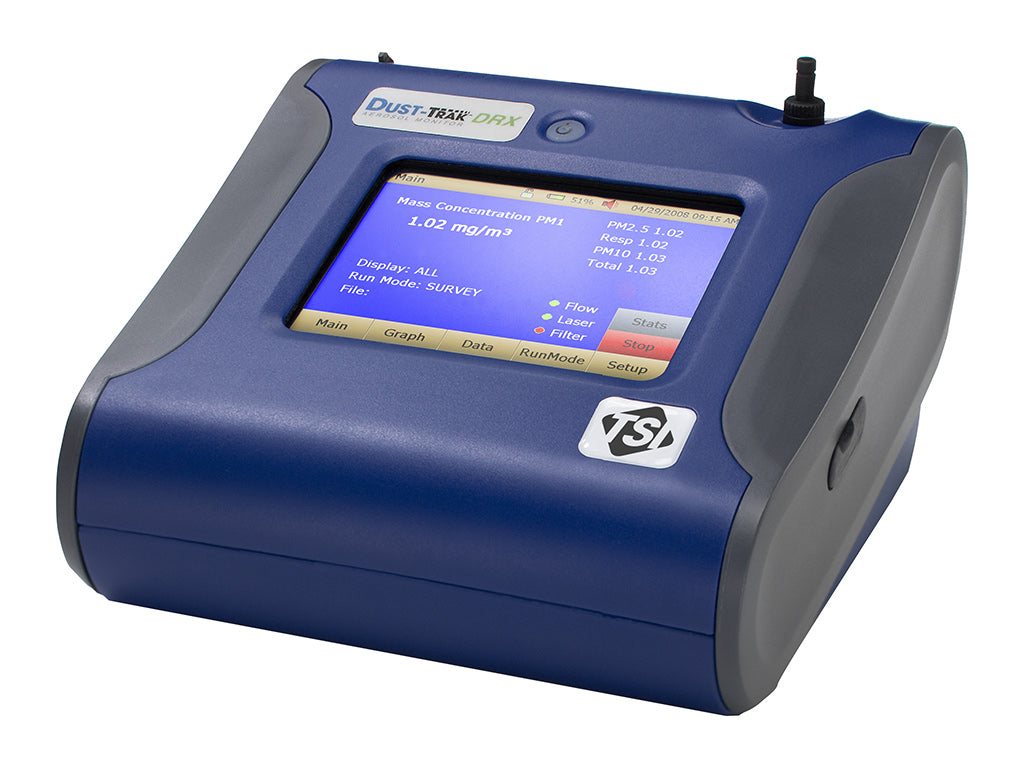

TSI DUSTTRAK DRX Desktop 8533 Dust/Aerosol Monitor

Pine Item #51361

Coronavirus / COVID-19 FEATURED ITEM!

Real-Time Dust Monitoring Takes a Giant Leap Forward! Only the new DustTrak™ DRX Aerosol Monitor can simultaneously measure both mass and size fraction - no other monitor can do both. The DustTrak DRX desktop monitor is a battery-operated, data-logging, light-scattering laser photometers that gives you real-time aerosol mass readings. It uses a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance. It is suitable for clean office settings as well as harsh industrial workplaces, construction, and environmental sites and other outdoor applications. The DustTrak DRX monitor measures aerosol contaminants such as dust, smoke, fumes, and mists.


Aerosol Concentration range 0.001 to 150 mg/m3

Automatic zeroing (with optional zero module) minimizes the effect of zero drift

Desktop Unit

Manual and programmable data logging functions

Perform in-line gravimetric analysis for custom reference calibrations

Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1 PM2.5 PM10 Respirable and Total PM size fractions

STEL alarm setpoint

Quantity must be 1 or more
Email for Quote


Technical Specifications

Internal Battery Pack12 VDC 36 Ah
Battery Run-time24 to 40 hours (typical)
External Battery Pack12 VDC 100 Ah
Nominal Voltage12 volts
Indoor/Urban Range - w/ 2.1 dB dipole antennaUp to 1500 feet (450 m) @ 922 MHz Up to 600 feet (180 m) @ 2.4 GHz
Outdoor RF line-of-sight range w/ 2.1dB antennaUp to 7 mi (11 km) @ 922 MHz Up to 3 mi (5 km) @ 2.4 GHz
Outdoor RF line-of-sight range w/ high gain ant.Up to 20 mi (32 km) @ 922 MHz Up to 10 mi (16 km) @ 2.4 GHz
Transmit Power Output100 mW (20 dBm) @ 922 MHz 50 mW (17 dBm) @ 2.4 GHz
Data Rate9600 bps
DimensionsUS: 8.1 x 16.9 x 20.6 in. Metric: 210 x 430 x 520 mm
WeightUS: 38 lb. Metric: 17 kg
