TSI P-Trak 8525 Ultrafine Particle Counter
TSI Instruments

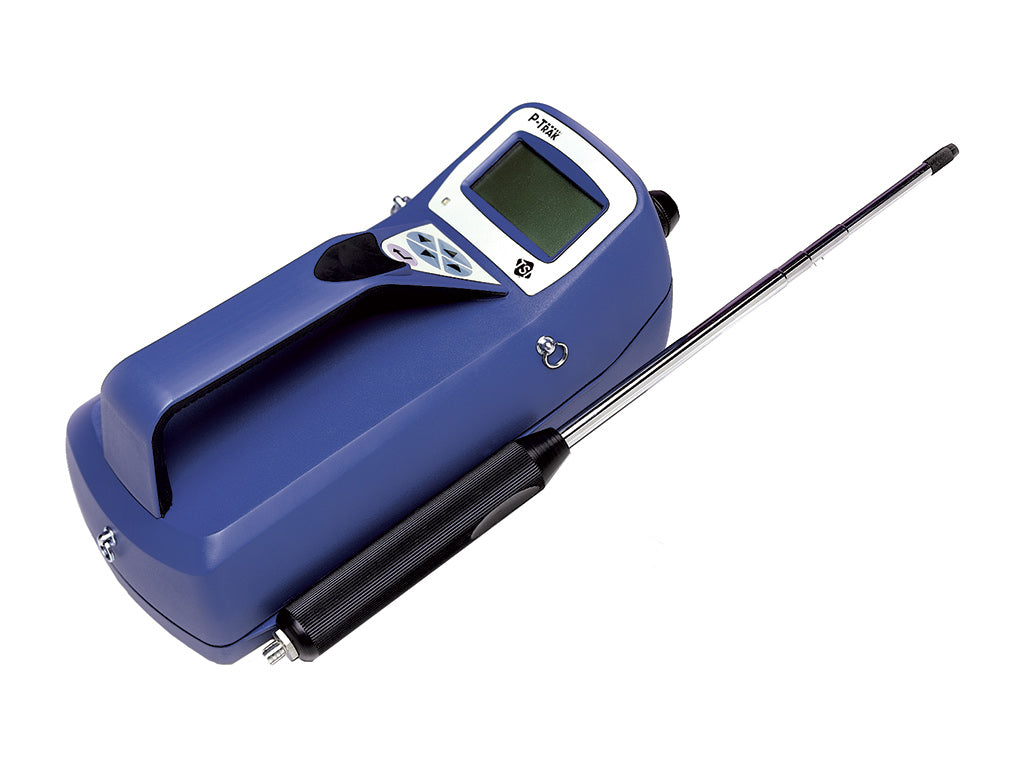

TSI P-Trak 8525 Ultrafine Particle Counter

Pine Item #51220

The TSI P-Trak indoor air quality (IAQ) analyzer is now available to rent from Pine. The P-Trak aerosol monitor detects and counts particles smaller than 0.1 micrometer in diameter. These are the ones that often accompany or signal the presence of a pollutant that is the cause of complaints about indoor air quality. The P-Trak provides far greater sensitivity to very small particles and can be used to locate the source and migration of toxic exhaust gases, malfunctioning office equipment, pinhole leaks in boiler gaskets and a wide variety of other problems.The TSI aerosol monitor available to hire from Pine offers programmable datalogging capability and comes with Windows-based software.


Gets at the source of tough IAQ problems.

Counts particles smaller than 0.1 micrometer.

Real-time ultrafine particle counter

Solves tough IAQ problems

Easy to use

Data log information


Cleanroom Containment Checks

Filter checks

Fumehood Checks

Safety Cabinent validation

Vehicle Emission Migration

Combustion Leaks

Control of Smoking Areas

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote


Technical Specifications

Concentration Range0 to 5x105 particles/cm3
Particle Size Range0.02 to greater than 1 micrometer
Operating Temperature Range32 to 100F
Sample Flow Rate100cm3/min
Power6 AA alkaline batteries 8 hours operation @70F
OutputRS-232 port
DimensionsUS: 10.75 x 5.5 x 5.5 in. Metric: 273 x 140 x 140 mm
WeightUS: 3.8 lbs. Metric: 1.7 kg
