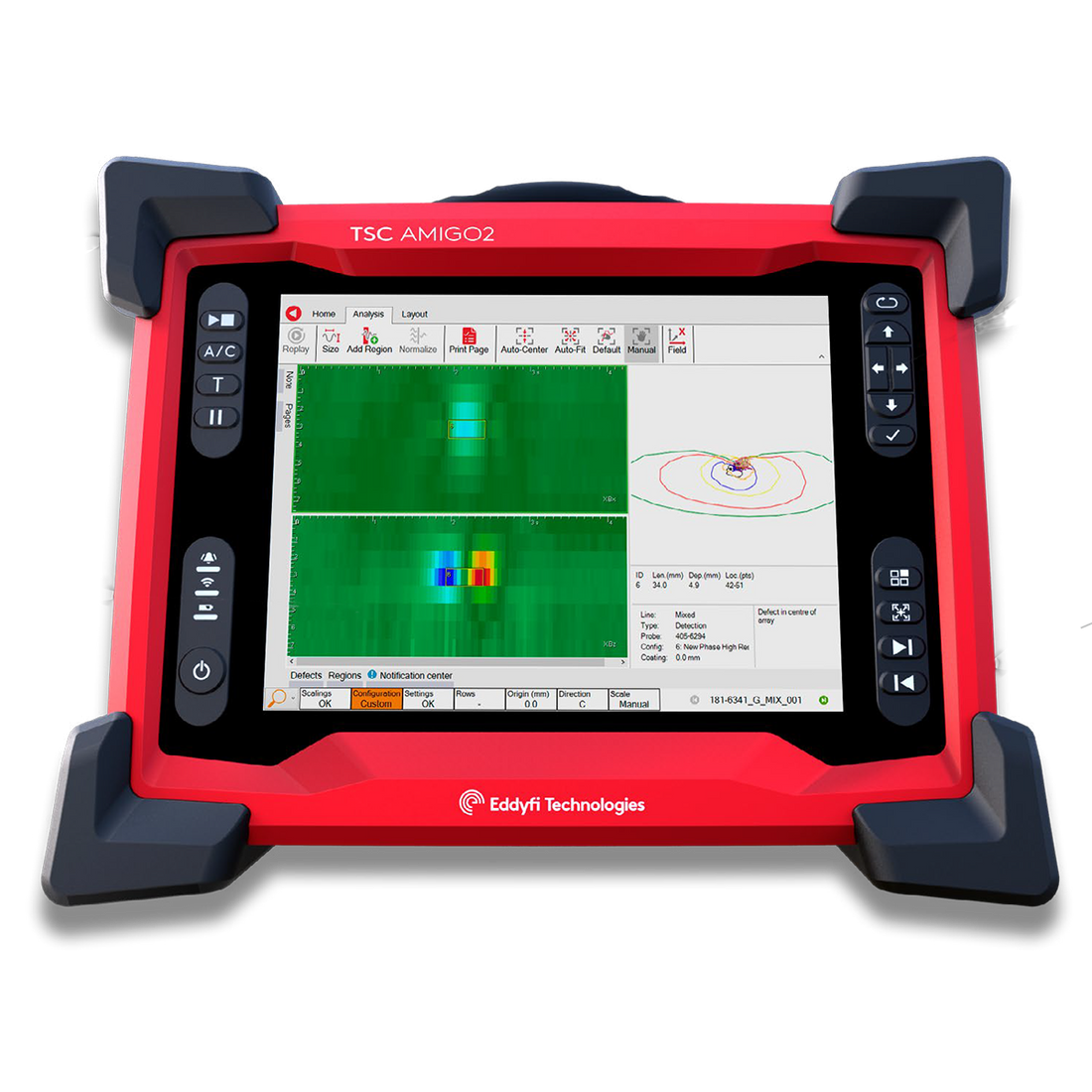

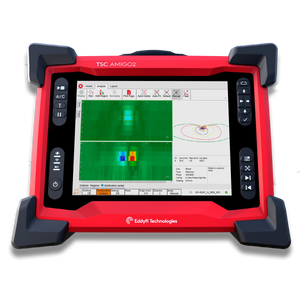

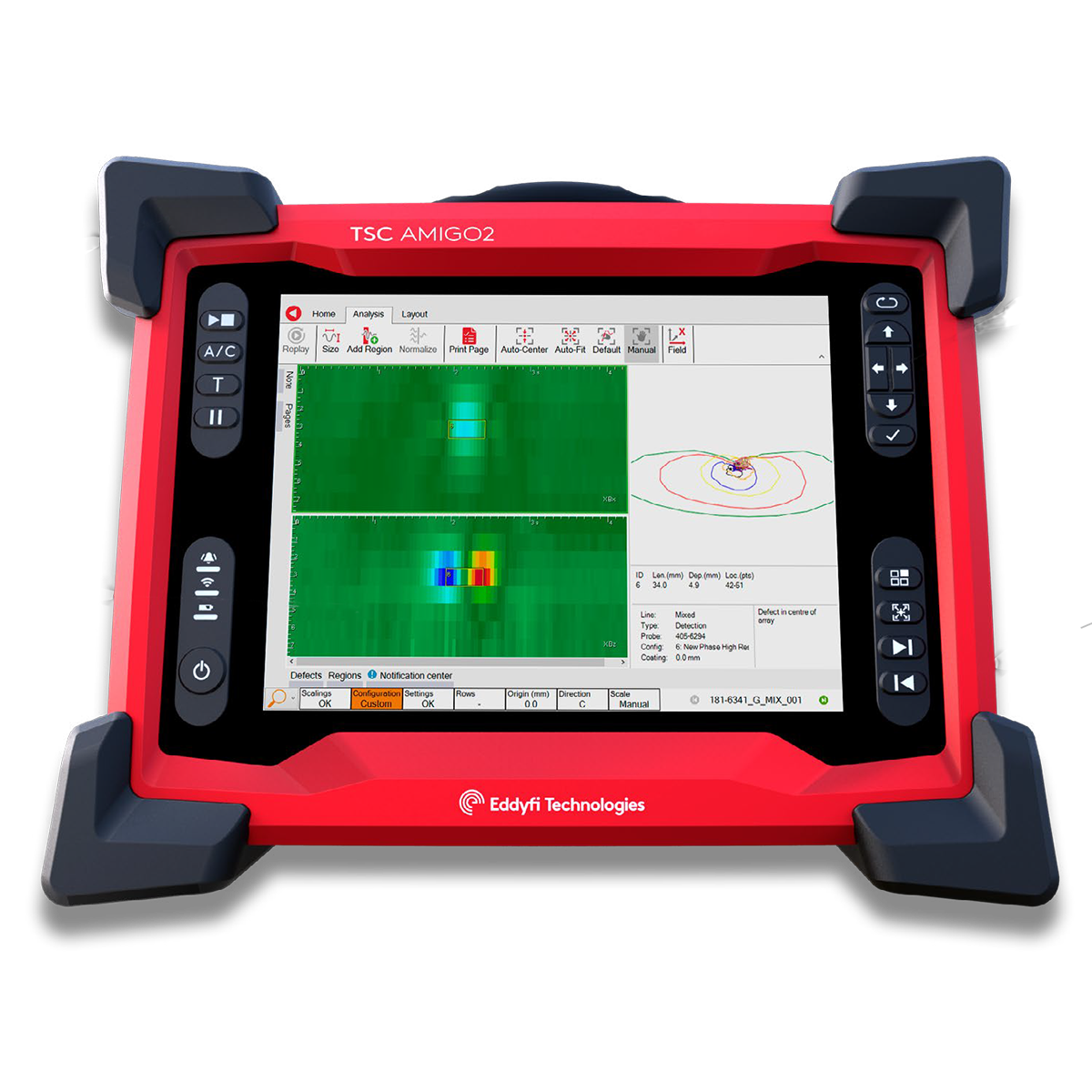

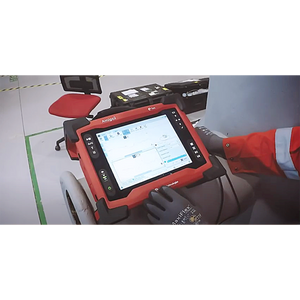

TSC Amigo2 ACFM System for Crack Detection and Sizing

Pine Item #56100
Over its 30-year history, ACFM® technology has developed a solid reputation for accurately detecting and sizing surface-breaking cracks through paint and coatings. TSC Amigo2 features a Sensu2 connector which will be used by a new generation of ACFM probes - manual or array. The Sensu2 connector supports up to eight digital inputs for high-speed, large-array applications. Together, TSC Amigo2 and its Assist software are fully designed and ready to support the evolution of ACFM probes.
Features:

Accurate sizing of surface-breaking cracks

Inspect through paint and coatings

Less cleaning compared to other methods

Up to 10 times faster than the first generation

Legacy probe support

New SENSU 2 probes for high-speed, large-array applications

Applications:

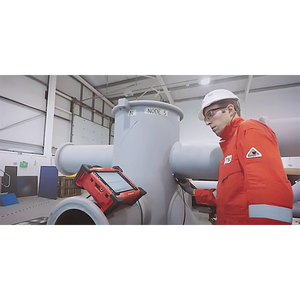

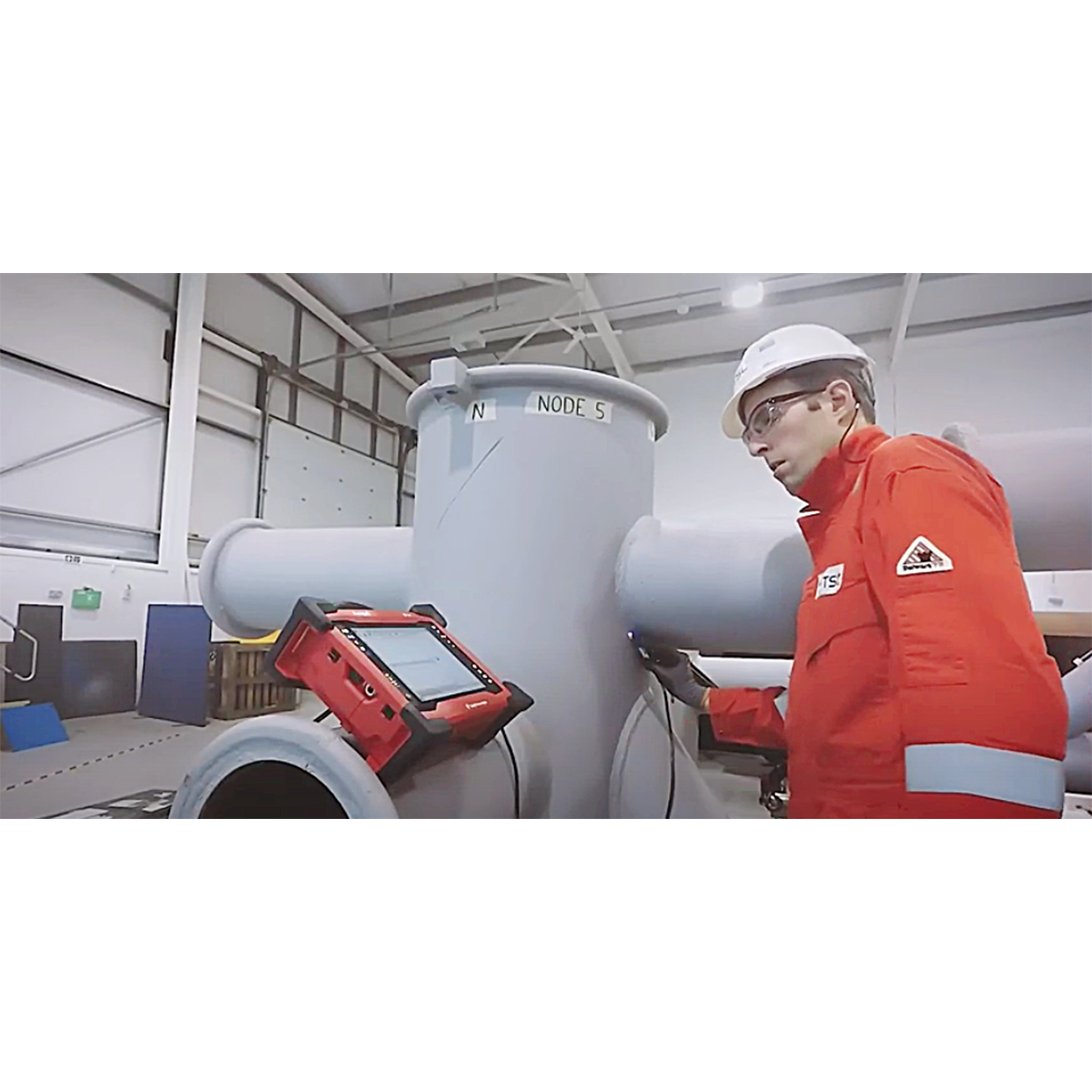

Weld inspection: w/ standard probes and single-pass array probes

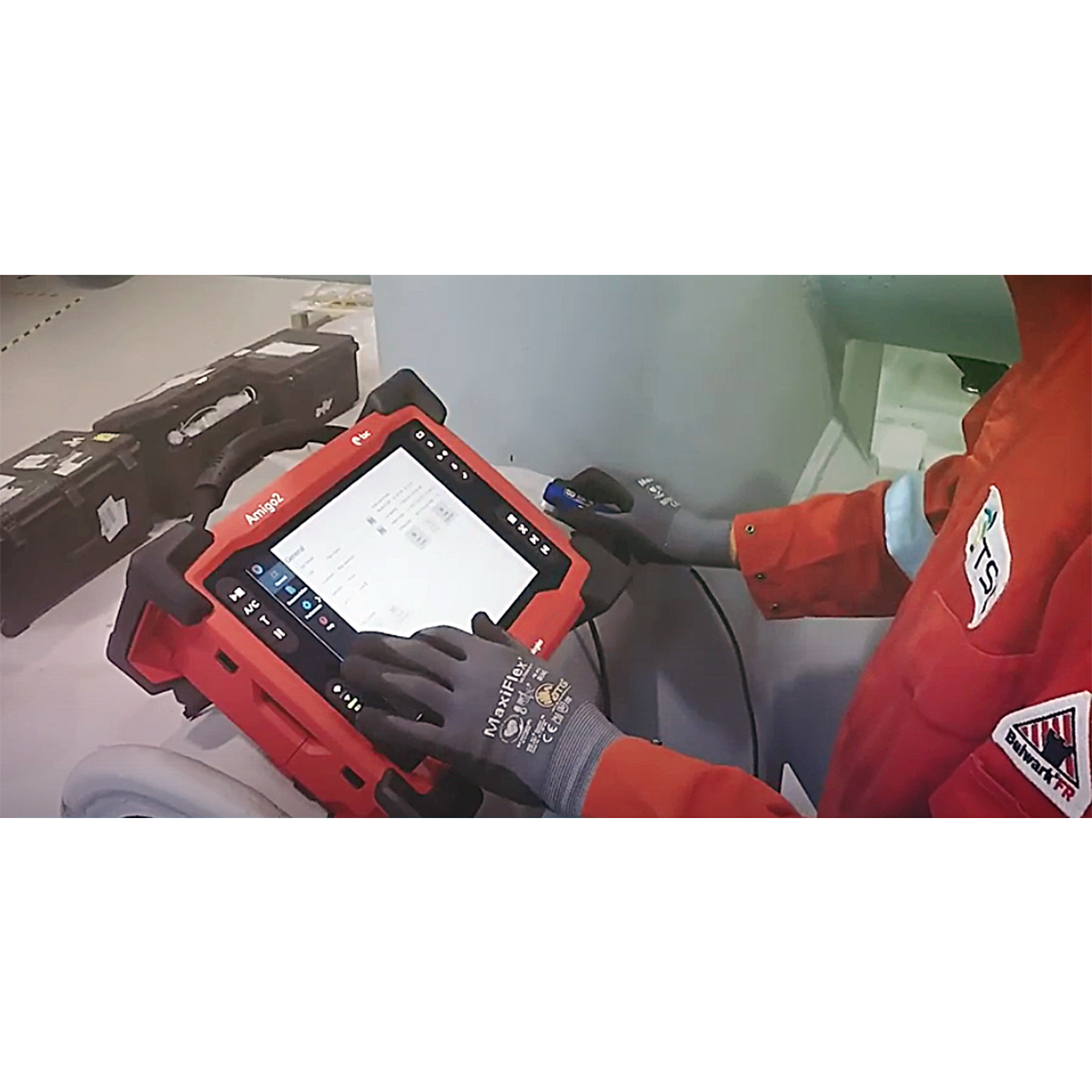

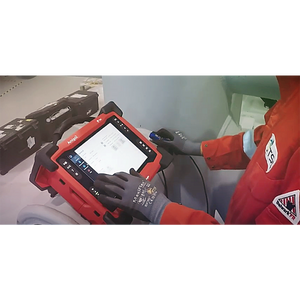

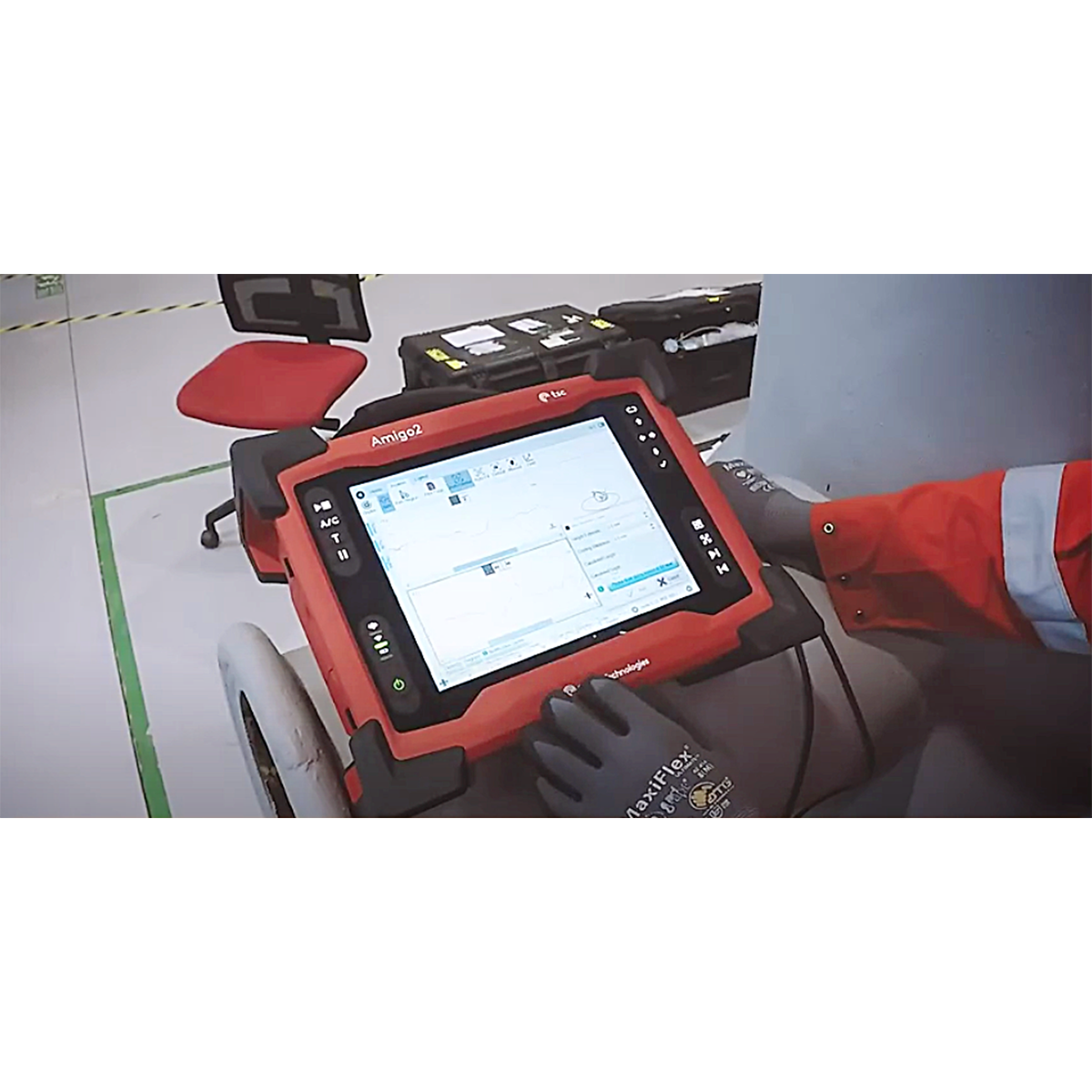

One or two-person operation (e.g., confined spaces)

High-temperature applications

Inspection through thick coatings

Thread inspection

Splash zone inspection

Quantity must be 1 or more
Email for Quote

Specifications
Dimensions (W × H × D)355 × 288 × 127 mm (14.0 × 11.3 × 5.0 in)
Instrument weight6.6 kg (14.5 lb)
Volume13 L (791 in3)
Power requirements100–240 VAC (50–60 Hz)
Power supplyDirect VAC or onboard batteries
BatteriesType: Li-ion, rechargeable, DOT compliant
 Type: Li-ion, rechargeable, DOT compliant
 Typical life: 6–8 hours
Video outputHDMI
Display26.4 cm (10.4 in)
 Multi-touch
 Non-reflective (AR coating)
 Anti-fingerprint (oleophobic coating)
 3 mm (1/8 in), chemically strengthened glass cover
 Optically bonded LCD and touchscreen
 Passive backlight enhancement
ConnectivityGigabit Ethernet, Wi-Fi™, Bluetooth®, USB 2.0 (×3)
StorageSSD, 100 GB
CoolingSealed and fanless
Probe inputsSENSU, SENSU 2, Amigo
Frequency5 kHz and 50 kHz
Data resolution16 bits
