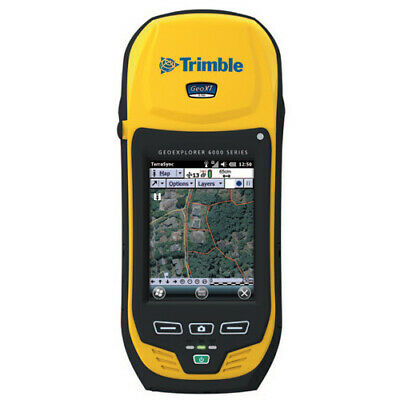

Trimble Geo-XT Handheld GPS
Trimble

Trimble Geo-XT Handheld GPS

Pine Item #51465

The GEO-XT Handheld GPS combines reliability with high-levels of accuracy. Ideal for use by Utility companies, Local Government, Environmental and Geo-Technical Consultants, Construction and Survey companies plus many more, the GEO-XT is designed to provide sub-meter GIS (Geographic Information System) data. Deployed in conjuction with the Geo Beacon to supply wireless real-time differential GPS corrections and FASTMap mobile software to integrate your new data with existing GIS information, Pine has the solution to your survey and mapping needs.

Features:

High performance sub-meter precision data

Built-in wireless and Bluetooth to receive and update data

SD Memory card slot as well as internal 512Mb memory

Deploys with GEO Beacon for real-time DGPS corrections and FastMap software

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Accuracy:Sub-meter in real time
Channels:12 (L1 code and carrier)
Update Rate:1 Hz
Time to First Fix:30 seconds
Correction Type:RTCM real-time
Protocol Type:NMEA and T-SIP protocol support
Operating System:Microsoft Windows\"! V.5 for Pocket PC
Processor:416MHz Intel X-Scale
Internal Memory:64Mb RAM and 512Mb Flash data storage
External Memory:Sealed SD card slot
Display:240 x 320 pixel colour LCD with backlight
Communications:802b Wireless LAN and Bluetooth
Audio Facilities:Microphone and speaker record and playback
Interface / Controls:11 Keys and touch screen with virtual keyboard
Power:Internal Li-Ion rechargeable battery
Temperature Range:-10oc to 50oc
Casing Protection:IP54: weatherproof and dust resistant

Dimension

USMetric
Dimensions8.5 x 3.9 x 3.0in215 x 99 x 77mm

Weight

USMetric
Weight1.76 Lbs0.78 Kg
