Tramex Concrete Meter
Tramex

Tramex Concrete Meter

Pine Item #54453

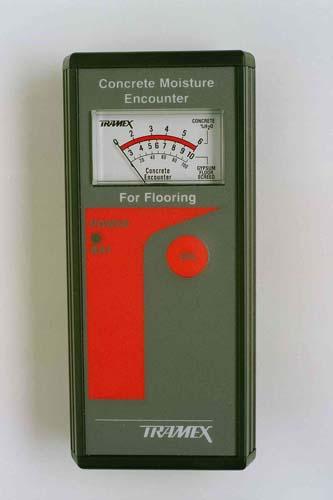

The Tramex Concrete Moisture Encounter is a non-invasive meter which is placed directly on the surface to measure moisture in concrete, sand/cement or gypsum screeds. It is used in the flooring and other industries where it is important to know the moisture content of concrete before a coating or covering is applied. The Concrete Moisture Encounter operates on the principle of non-destructive impedance measurement. Parallel coplanare electrodes fitted with spring-loaded contacts are mounted on the base of the instrument. During operation, a low frequency signal is transmitted into the concrete or floor screed to measure the change in impedance cased by the presence of moisture.

Features:

\r

Fast Response.

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Range2 to 6% for concrete 0 to 10% fore gypsum floor screed
DisplayAnalog
Power9V battery

Dimension

USMetric
Dimensions6.4 x 3" x 1.4""163 x 76 x 36 mm

Weight

USMetric
Weight0.75 lbs0.340 kg
