SidePak AM520 Personal Aerosol Monitor Kit w/5400 mAh Li-ion
TSI

SidePak AM520 Personal Aerosol Monitor Kit w/5400 mAh Li-ion

Pine Item #

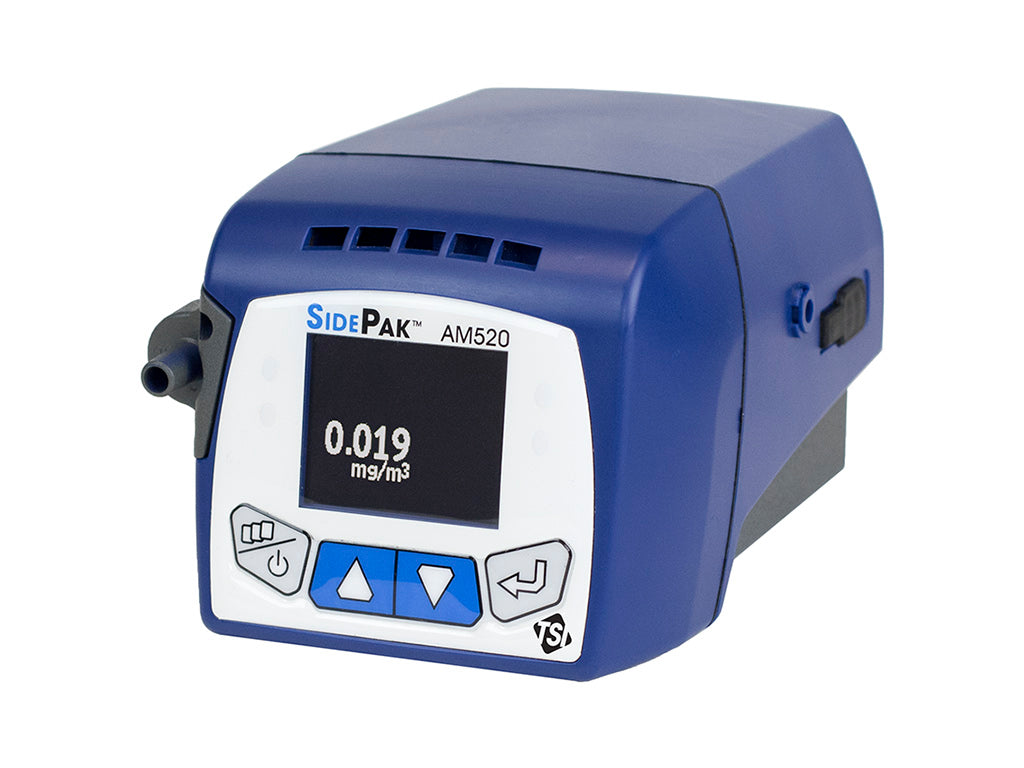

The SidePak™ Personal Aerosol Monitor AM520 is a small, single-channel, portable, battery-operated, data-logging, light-scattering laser photometer that provides real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker breathing zone. Newly designed inlet conditioners increase the mass concentration capability and provide size fraction cut points for PM10, PM4 (Respirable), PM5 (China Respirable), PM2.5 , PM1 and 0.8 μm Diesel Particulate Matter (DPM). This monitor is the perfect solution for real-time, personal aerosol sampling in a variety of workplace environments, including general industry, foundries, construction sites, chemical plants, refineries, petrochemical, power and utilities, transportation, aerospace, maritime, confined spaces and mining.
Features:

Robust impactors for higher mass concentration range

Audible and visual alarms

0.8 μm DPM impactor

PM5 China respirable size fraction impactor

High capacity battery

Color OLED display

Applications:

Aerospace

Automotive

Chemical

Construction

General Industry

Healthcare

Manufacturing

Mining

Petrochemical

Pharmaceutical

Power Generation

Transportation

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Sensor Type90° light scattering, 650 nm laser diode
CalibrationCalibrated against a gravimetric reference using the respirable fraction of standard ISO 12103-1, A1 Test Dust
Aerosol Concentration Range0.001 to 100 mg/m3
Particle Size Range0.1 to 10 µm
Minimum Resolution0.001 mg/m3
Zero Stability±0.001 mg/m3 over 24 hours using 10 second time constant
Temperature CoefficientApproximately +0.0005 mg/m3 per °C (for variations from temperature at which instrument was last zeroed)
RangeUser-adjustable, 0 to 1.8 liters/min (L/min) Note: Upper range is dependent on impactor or cyclone attached to the SidePak AM520/520i Monitor
