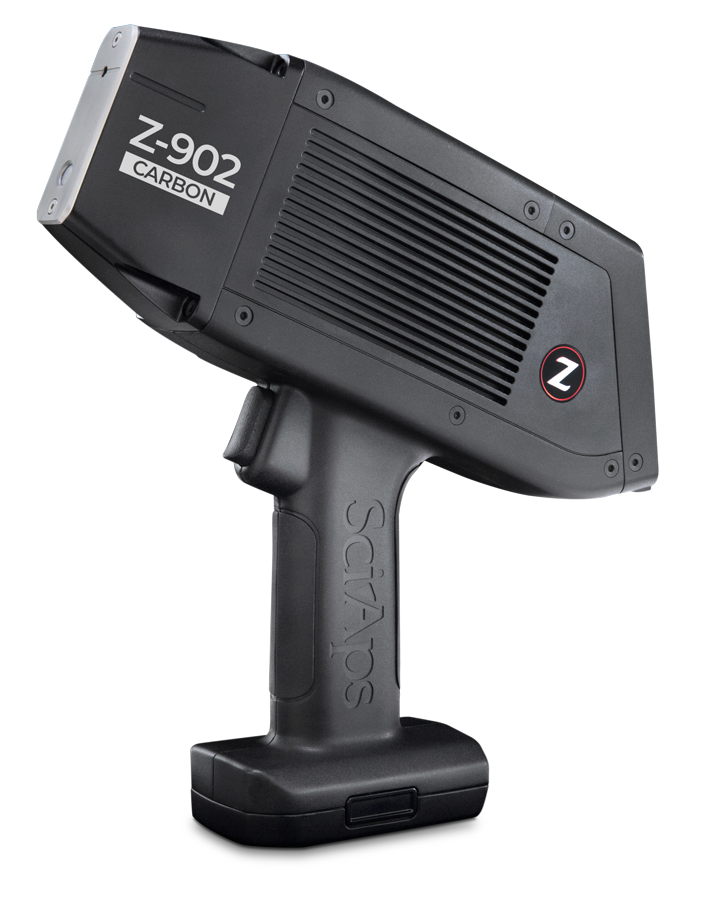

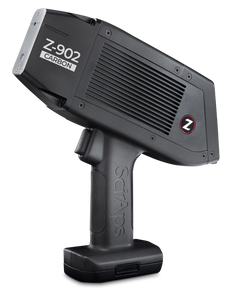

SciAps Z-902C+ Premium LIBS Analyzer

Pine Item #52476

Z-902 Carbon: A new industry standard

The key to rock-solid, in-field carbon analysis for alloys.

  • Identification of stainless steel and low alloy steels, including carbon analysis down to 70 ppm and instant CE (carbon equivalents) calculations.
  • Powerful laser, onboard argon purge, and high-resolution spectrometer are built for carbon.
  • Narrow profile for accessing the tightest spaces, aerospace-grade aluminum body for improved performance in high ambient temperatures, and re-designed user interface. The most usable platform on the market, at only 4.35 lbs. (1.97 kg).

Spectrometer range 190 nm – 420 nm. Includes a second, dedicated spectrometer for superior resolution in the 190 – 230 nm range for carbon.

Handheld LIBS analyzers are instruments used to determine the elemental composition of materials. LIBS is an acronym for the analytical technique Laser-Induced Breakdown Spectroscopy.


In use globally

PMI and NDT
Confirm alloy type and grade 300 series stainless steels into L, H, and S series. Carbon equivalent for welding. Material verification pre- and post-fabrication. Validating mill test reports. Material verification in chemical plants and refineries. Re-rating vessels.

Pipeline integrity management
Grading. Determining carbon equivalents. Validating MTRs.

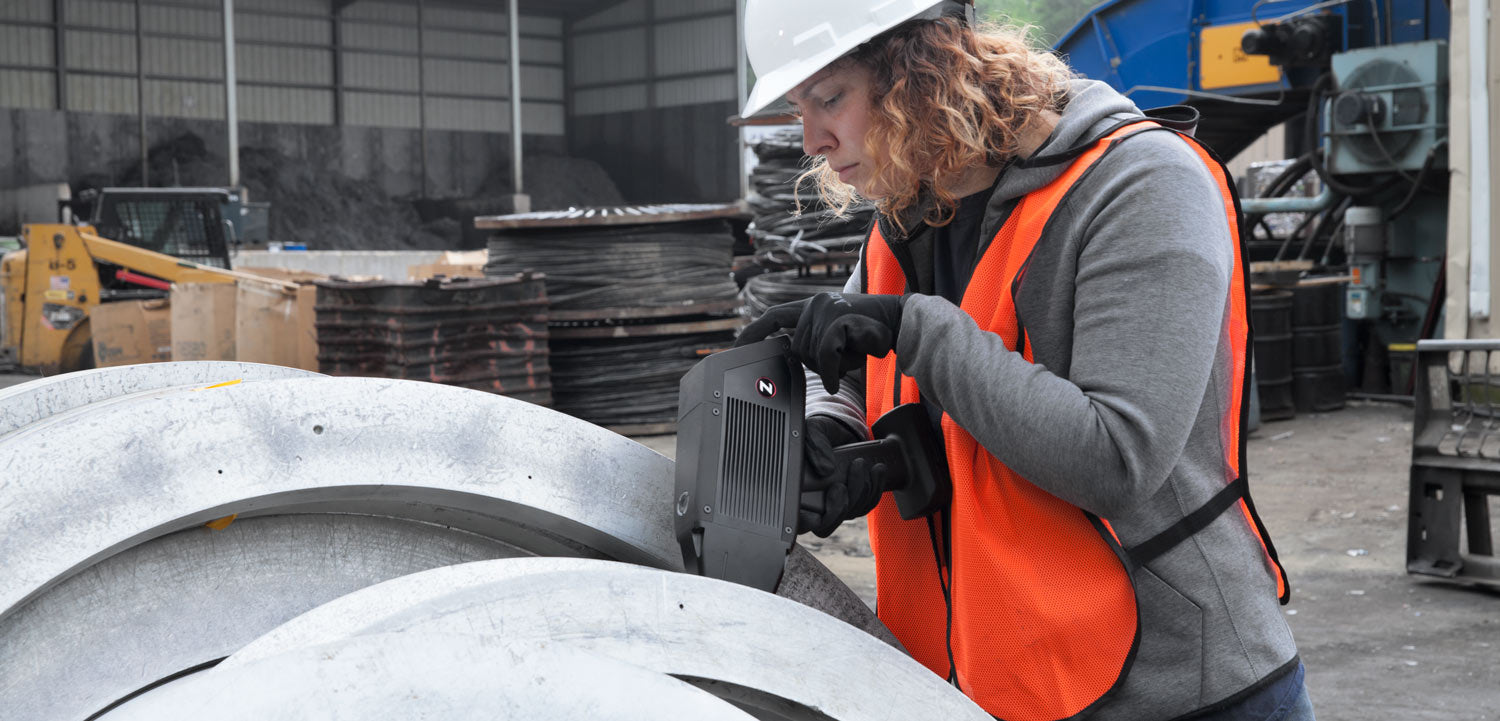

Steel production
Screen incoming scrap material. In-process quality control. Resolving material mix-ups. Rapid screening of material at EAF for heat compliance.

Features:

LIBS Sensor - Advanced spectrometer design for high resolution and wide range.

Internal-Camera - Precise targeting of analysis location

Macro-Camera - Photo documentation of samples, reading barcodes and QR codes

Report Generation - Full-featured, with available cloud data management and reporting

Narrow Snout - Tapered for welds or difficult-to-acces test locations

Laser Safety Sensor - Patented sample sensor allows Class 1 operation, subject to LSO approval

Intuitive Android - Android operating system, with app based software

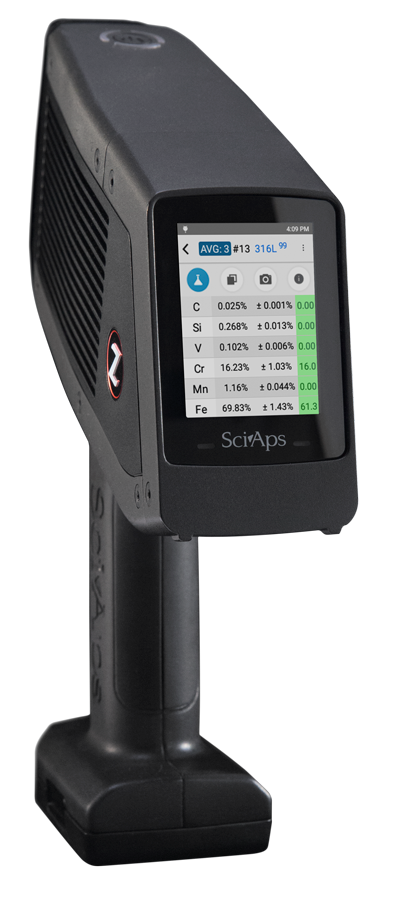

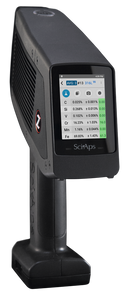

High Resolution Display - Rear-facing display for easy viewing

Rugged Metal Body - Maximum durability and minimal service costs.

Applications:

Oil & Gas

Chemical Refineries

Industrial Manufacturing

Fabrication process

Power generation

Shipbuilders

Steel makers

Scrap processing/Recycling

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications
Weight4.35 lbs. (1.97 kg) with battery
Dimensions10.75 x 2.875 x 8.625 inches
Display2.7-inch high-brightness color touchscreen, readable in all conditions. Rear-facing display for easy results viewing.
PowerOn board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.
ConnectivityBuilt on Google’s Android platform for real-time data exporting, including built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-C to connect to virtually any information management system.
SecurityPassword protected. Multi-user support with configurable access.
RegulatoryCE, RoHS, USFDA registered. Class 3b laser. Sample sensor on board, allows for operation under Class 1 conditions subject to local LSO approval.
Processing ElectronicsARM Quad Cortex -A53 1.2GHz memory: 2 GB LPDDR3, 16 GB eMMC
Data StorageResults Storage: 32 GB SD
Spectral range190-420 nm
Calibrations

Aluminum: Be, Mg, Al, Si, Ti, V, Cr, Mn, Fe, Ni, Cu, Zn, Zr, Pb, Bi, Ag, Sn

Titanium Base: Al, Ti, V, Cr, Fe, Cu, Zr, Nb, Mo, Sn

LAS Base: C, Al, Si, Ti, V, Cr, Mn, Fe, Cu, Ni, Nb, Mo, Pb

Stainless Steels: C, Al, Si, Ti, V, Cr, Mn, Ni, Fe, Ni, Cu, Nb, Mo, W

Nickel Base: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W

Copper Base: Be, Al, Si, Cr, Mn, Fe, Ni, Cu, Zn, Ag, Sn, Pb, Bi

Cobalt Base: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W

Specialty Bases: Mg, V, Cr, Mn, Co, Zn, Zr, Nb, Mo, Ag, Sn, Hf, Ta, W, Re, Pb, S

Sample ViewingIntegrated camera and laser target indicator before and during analysis provide proper sample alignment. Includes 2nd “macro camera” for scanning QR or barcodes and for photo-documentation and report generation.
Laser RasterOn-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.
AtmosphereSciAps proprietary Opti-Purge inert argon environment improves spectral signal-to-noise ratio; improves performance in UV range.
Calibration CheckInternal 316 stainless check standard for calibration verification and wavelength scale validation.
Drift CorrectionOn-board automated drift correction software with factory or user-provided reference materials.
Grade Library500+ grades, multi-library support, libraries may be added or edited.
