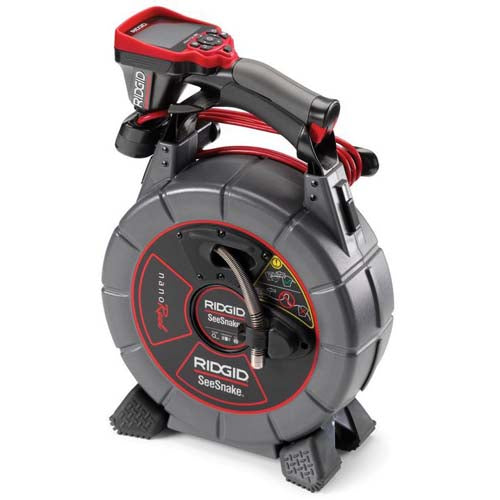

Ridgid SeeSnake nanoReel Industrial Video Inspection System

Pine Item #54833
  •  ¾" to 2" (20 to 50 mm) Capacity up to 85' (25 m)
  • Passes 90 ° bends in most 30 mm lines

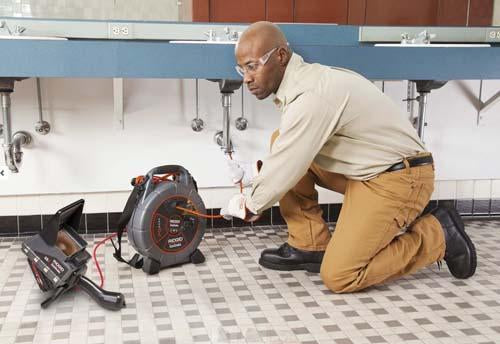

The SeeSnake nanoReel opens up new possibilities in long run small diameter inspection needs. Applications where only bore scopes could reach can now be inspected using the nanoReel. Boiler tubes, supply lines, sprinkler systems, and a wide array of specialty applications can all be inspected using the new nanoReel.

Features:

Small diameter and tight turn radius camera allows lines up to 85' (25 m) to be inspected with tight turns in 1

Lightweight and compact unit allows for easy transport and efficient storage

Interchangeable drums let you change out the inner drum depending on the application

L100/L100C – 1 1/2

D30 and D65S – Small diameter with tight turns 1 1/2

N85S – Ultra small diameter lines 3/4

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Camera Head0.62 (15.5 mm)
Cable Length85' (25 m)
Cable Diameter0.25 (6.3 mm)
Line Capacity¾ to 2\" (20 - 50 mm).
Weight9.5 lbs. (4.1 kg)
Length13.25\" (33.7 cm)
Width6.6\" (16.8 cm)
Height17.5\" (44.5 cm)
Resolution510 x 496
Ball Guide2 Included
Sonde512 Hz
CounterNA
