RAE Systems AreaRAE Steel
RAE Systems

RAE Systems AreaRAE Steel

Pine Item #55393

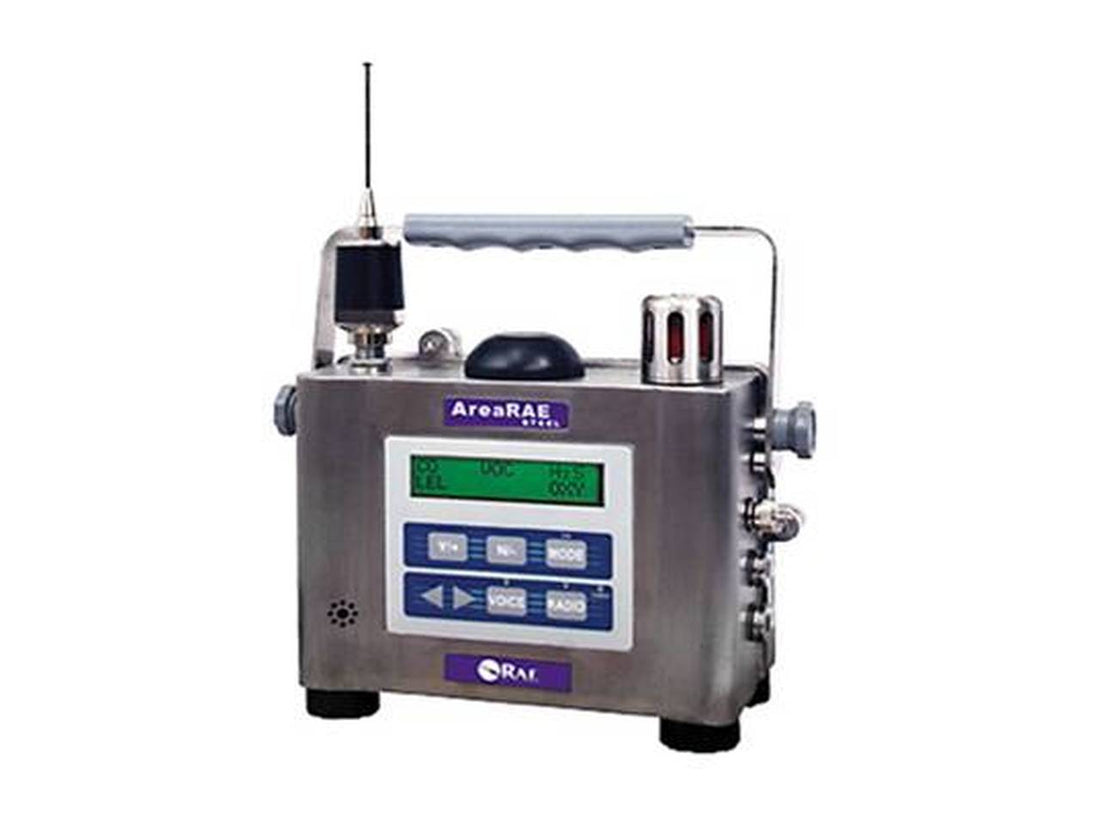

AreaRAE Steel is a multi-gas, wireless monitor.  Housed in a stainless-steel enclosure, it is rugged, portable and weather resistant, ensuring that it can withstand harsh environments.  The AreaRAE Steel can monitor up to five threats, including VOCs, LEL, Oxygen, and two user-selectable toxic sensors.

Strategically placed AreaRAE Steel monitors can be used to quickly establish a perimeter, allowing individuals to back off to a safe position and receive readings from up to 2 miles (3 km) away.

Features:

Up to five sensors (PID LEL O2 and two toxic)

Wireless data transmission up to 2 miles (3km)

Built-in sampling pump

Optional GPS

Loud buzzer and large extra-bright warning light

Large LCD display and keypad

Interchangeable Lithium-ion or alkaline battery pack

Rugged stainless-steel housing

Weather-resistant

Continuous operation via AC source

Applications:

HazMat and Emergency Response

Refineries and Petrochemical Plants

Power Plants

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Sampling PumpInternal integrated diaphragm pump with programmable High (400cc/min) and Low (300cc/min) flow rate settings
Low Flow AlarmAuto shut off pump at low flow condition
Temperature-4° to 113°F (-20° to 45°C)
Humidity0% to 95% relative humidity (non-condensing)
OptionalIntegrated GPS receiver
Size9.25'' L x 5.0'' W x 9.25'' D (235mm L x 127mm W x 235mm D) without handle
Weight13.85 lbs (6.3 kg) with battery
SensorsUp to five sensors (O2 combustible two toxic and VOC) electrochemical sensors for toxic gases and oxygen photoionization detector for VOC catalytic combustion sensor for combustible gases
BatteryRechargeable 7.4V/4.5AhLithium-ion battery pack with built-in charger (lessthan 10 hourscharge time) or a 6 C-size alkaline battery pack
Operating HoursUp to 18 hours continuous operation
Display2-line 16-digit LCD with manually activated LED back light
Keypads3 operation and 4 programming keys
Direct ReadoutInstantaneous values sensor name high and low values for all detectors TWA and STEL values for toxic gases and VOCs battery voltage and
AlarmFlashing red LED cluster to indicate exceeded preset limits low battery or sensor failure
Alarm SettingSeparate alarm limit settings for TWA STEL Low and High alarm
Audible Alarm110dB buzzer at 10cm (typical)
Visual AlarmFlashing red LED cluster
Alarm ModeLatching/automatic reset
Datalogging4000 points for each sensor with time stamp serial number user ID site ID
Data Storage20000 readings (64 hours 5 channels at 1-minute intervals) in non-volatile memory
Datalog IntervalProgrammable 1 to 3600 sec
CommunicationUpload data to PC and Download monitor setup from PC through RS-232 link to serial port on PC
EM ImmunityNo effect when exposed to 0.43 mW/cm2 RF interference (5-watt transmitter at 12 inches)
Safety CertificationCSA Classified for use in Class I Division 2 Groups AB C and D (w/ 900 MHz modem)
Wireless Frequency902 to 928 MHz (License-free)
RF RangeUp to 2 miles (900 MHz) - extendable with RAELink Repeaters
CallibrationTwo-point field calibration for fresh air and standard reference gas

Dimension

USMetric
Dimensions9.25\"Lx 5.0\" W x 9.25\" D without handle 235mm Lx 127mm W x 235mm D without handle

Weight

USMetric
Weight13.85 lbs (with battery) 6.3 kg (with battery)
