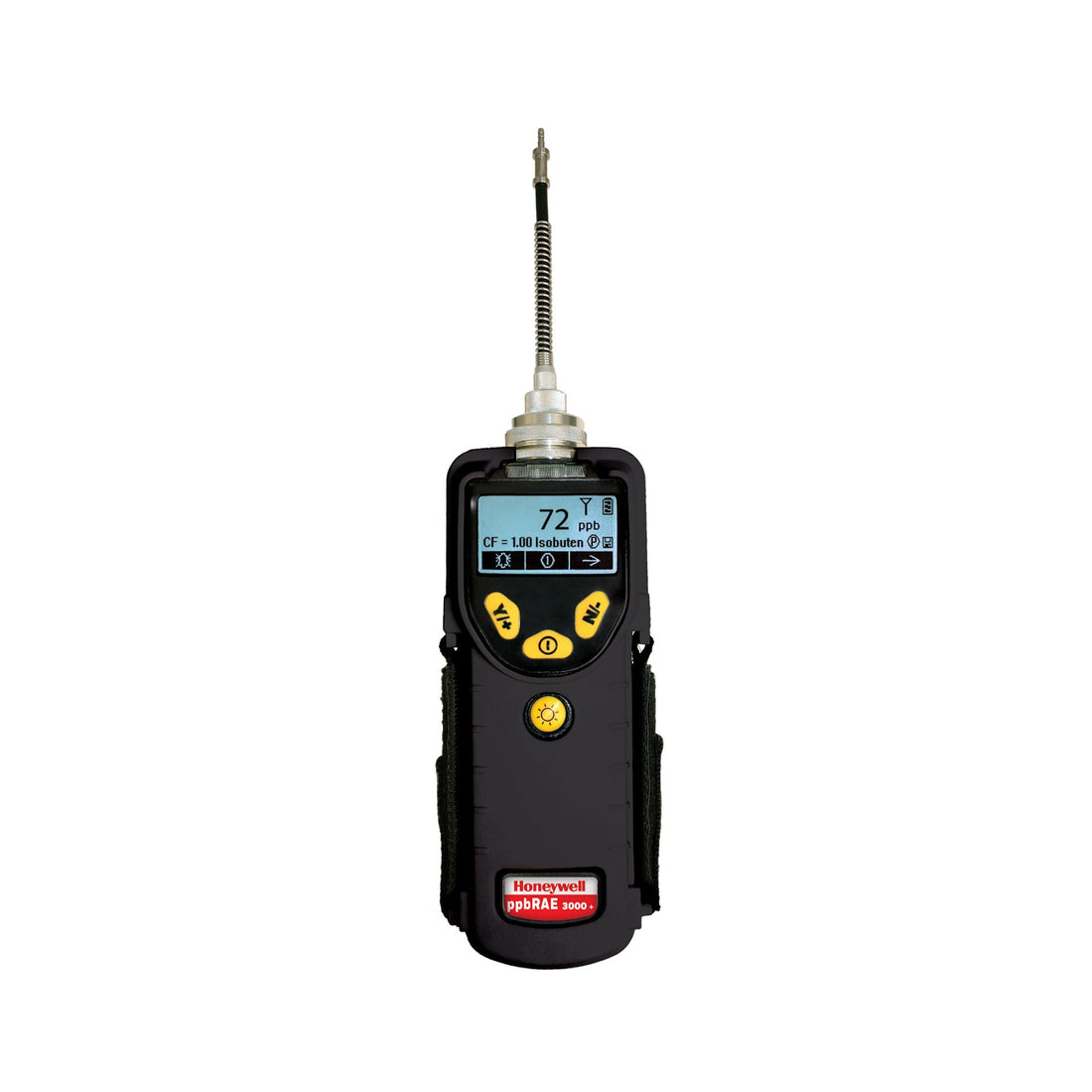

RAE Systems ppbRAE 3000 PID
RAE Systems

RAE Systems ppbRAE 3000 PID

Pine Item #51242

The RAE ppbRAE 3000 is the most advanced handheld volatile organic compound (VOC) monitor on the market. Its photoionization detector (PID) extended range of 1 ppb to 10,000 ppm makes it an ideal instrument for applications from HazMat/Homeland Security and industrial hygiene to Indoor Air Quality and military applications.

Features:

Big graphic display

Designed for simple service

Field-interchangeable battery pack

Integrated flash light

Integrates RAE Systems Correction Factors list for more than 200 compounds

Multi-language support

Proven PID technology

Real-time wireless

Rugged housing

User-friendly screens including dataplot chart view

Applications:

Big graphic display

Designed for simple service

Field-interchangeable battery pack

Integrated flash light

Integrates RAE Systems Correction Factors list for more than 200 compounds

Multi-language support

Proven PID technology

Real-time wireless

Rugged housing

User-friendly screens including dataplot chart view

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

SensorsPhotoionization sensor with standard 10.6 eV or optional 9.8 eV or 11.7 eV lamps
BatteryRechargeable external field-replaceable Lithium-Ion battery pack. Alkaline battery adapter
Operating hours16 hours of operation (12 hours with alkaline battery)
Graphic Display4 lines 28 x 43 mm with LED backlight for enhanced display readability
Direct ReadoutInstantaneous reading - VOCs as ppm by volume; High values; STEL and TWA; Battery and shutdown voltage; Date time temperature
Alarms95 dB (at 30 cm) buzzer and flashing red LED to indicate exceeded preset limits High: 3 beeps and flashes per second; Low: 2 beeps and flash
EMI/RFIHighly resistant to EMI/RFI Compliant with EMC Directive 89/336/EEC
IP RatingIP67 unit off and without flexible probe IP65 unit running
DataloggingStandard 6 months at one-minute intervals
CalibrationTwo-point or three-point calibration for zero and span. Calibration memory for 8 calibration gases alarm limits span values and calibratio
Sampling PumpInternal integrated flow rate at 500 cc/mn. Sample from 100' (30m) horizontally and vertically
Low Flow AlarmAuto pump shutoff at low-flow condition
CommunicationDownload data and upload instrument set-up from PC through charging cradle or optional Bluetooth Wireless data transmission through built-i
Frequency902 to 928 MHz (license-free) 2.400 to 2.4835 GHz (license-free) 433 MHz 869 MHz
RF RangeUp to 500' (900 MHz 433 Mhz 869 Mhz) extendable with RAELink3 Repeater to 2 miles
Hazard Area ApprovalUS and Canada: UL cUL Classified as Intrinsically Safe. Approval for use in Class I Division I Groups A B C D. Europe: ATEX II 1G EEx
Temperature-4° to 113° F (-20° to 50° C)
Humidity0% to 95% relative humidity (non-condensing)
AttachmentsDurable black rubber boot
SENSOR SPECIFICATIONSVOCs
Range 0 to 9999 ppbResolution - 1 ppb
Range 10 to 99 ppmResolution - 0.01 ppm
Range 100 - 999.9 ppmResolution - 0.1 ppm
Range - 1000 - 9999 ppmResolution - 1 ppm
Response Time T9<3s

Dimension

USMetric
Dimensions10 L x 3.0\" W x 2.5\" H\"25.5cm x 7.6cm x 6.4cm

Weight

USMetric
Weight26oz 738g
