RAE Systems MiniRAE Lite PID
RAE Systems

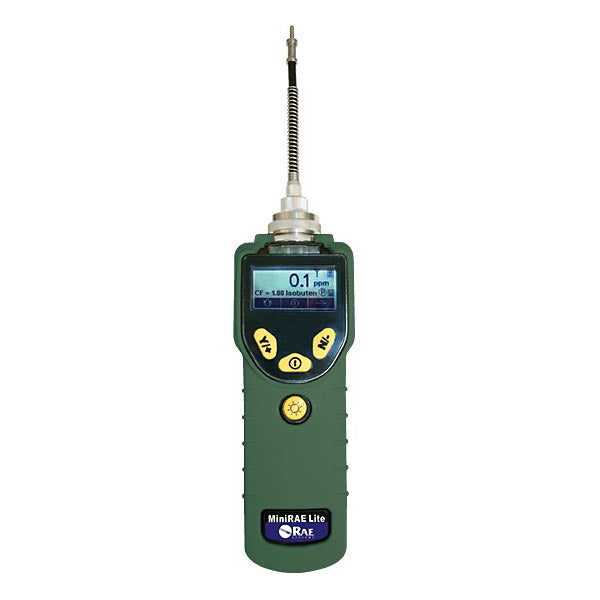

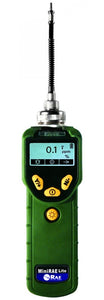

RAE Systems MiniRAE Lite PID

Pine Item #50136

Ideal for simpler VOC detection and monitoring applications, the new MiniRAE Lite from RAE Systems is now available to hire, buy or through our Rent To Own (RTO) and Perpetual Rental Plan (PRP).

Featuring the same lamp as the MiniRAE 3000 and a powerful pump able to draw up to 30m, the MiniRAE Lite is simple to use and robust. Potential applications vary from in-house solvent monitoring and environmental site surveys to construction and Spill Response.

Features:

3-second response time

Humidity compensation

Loud 95dB and red flashing alarm

Range up to 5000ppm

Sampling pump draws up to 30m (vertically & horizontally)

Applications:

Emergency Response

Environmental Cleanups and Remediation

Leak Detection

Hazmat Reponse

Worker Exposure

Venue Protection

Perimeter Monitoring

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Sensors:10.6eV lamp
Range:0 to 999ppm (0.1 ppm resolution) 1000 to 5000ppm (1ppm resolution)
Response Time:3 seconds
Sampling Pump:400mLmin-1
Readout:Instantaneous: VOC's as ppm by volume High and Low values Date and Time
Keypad:1 operation and 2 programming keys 1 flashlight on/off
Alarms:95dB alarm and flashing red LED
IP Rating:IP-65
Operating Temperature:-20oC to +50oC
Operating Humidity:0 to 95% rh (non-condensing)
DimensionsUS: 10” x 3” x 2.5” Metric: 255 x 76 x 64mm
WeightUS: 26oz Metric: 738g
