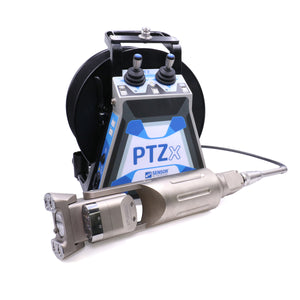

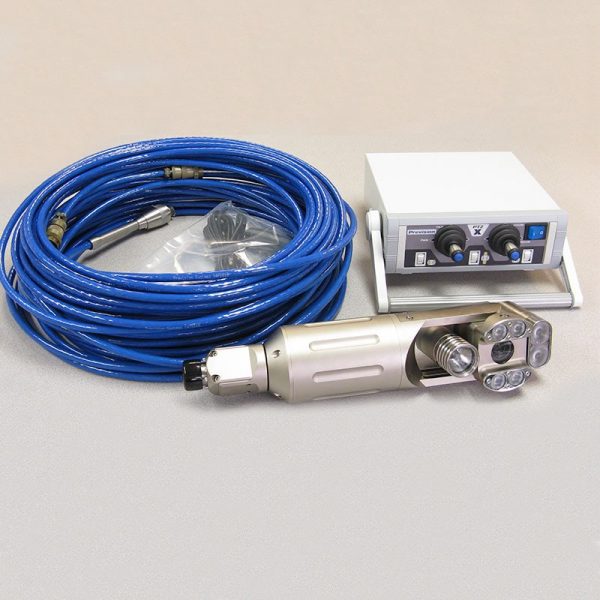

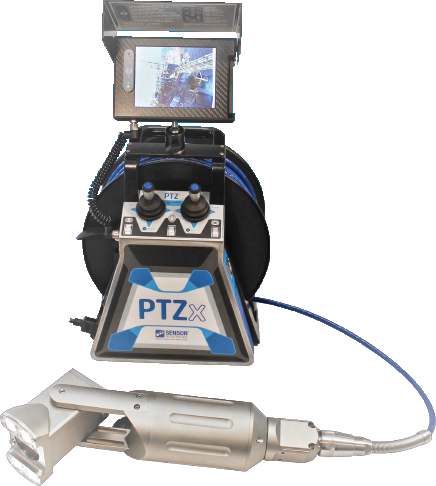

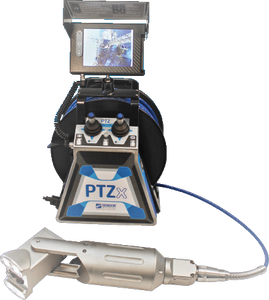

PTZx Inspection Camera System
PTZx Inspection Camera System
PTZx Inspection Camera System

PTZx Inspection Camera System

Pine Item #55510

Portable inspection system loaded with features to inspect tanks, vessels, drums, and other large confined spaces and piping. State-of-the-art white LED lighting provides over 1000 lumens of light along with add-on auxiliary lighting brightens the darkest of environments. Coupled with a low-lux, high-resolution CCD imager, zoom optics, continuous pan rotation and 270 ° of tilt, this sub-4" camera provides excellent quality images with which well-informed decisions can be made.


Super-bright white LED lighting

High-beam auxiliary spotlights

High-resolution low-lux color CCD imager

Intuitive joystick control with on-screen graphics

Continuous pan rotation with no limits

Flexi-base for straight or right angle cable connection

Lightweight cable drum with integral controller

Pressurize-able and purge-able








Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote


Technical Specifications

Camera Lighting:0-1200 lumens (source)
Auxiliary Lighting:1000 lumens (2X 500 lm each)
Image Brightness:Adjustable
Focus:Auto/Manual (10cm - 8)
Pan:360° @ 0-5rpm
Tilt:270° @ 0-5rpm
Cable Length:150' (45 m)
Pressure Rating:66psi (4.5bar)
Weight:26 lbs. (11.8kg)
Power:~100-240V 50/60Hz 4A
Dimensions:13.2 x 12.2 x 16.0" (330 x 310 x 406 mm)
Construction:Nickel-plated Aluminum with Stainless Steel
