Proceq Pundit Lab Ultrasonic Pulse Velocity Concrete Flaw Detector

Pine Item #54267

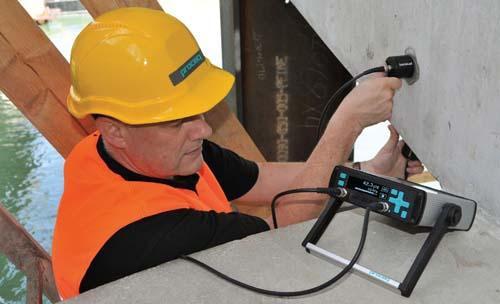

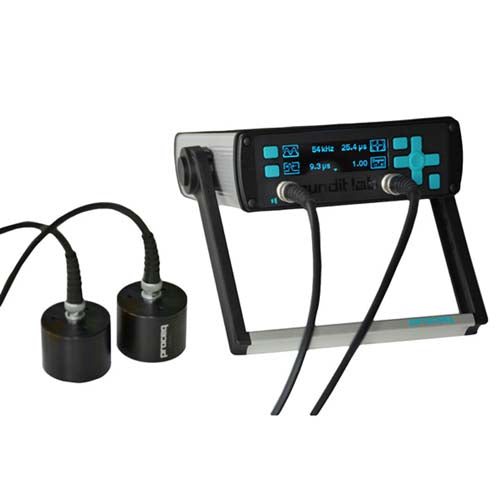

The Pundit Lab is an ultrasonic pulse velocity (UPV) test instrument used to examine the concrete quality. It features online data acquisition, waveform analysis, and full remote control of all transmission parameters. Along with the traditional transit time and pulse velocity measurement, the ultrasonic test equipment Pundit Lab offers path length measurement, perpendicular crack depth measurement, and surface velocity measurement.

Optimized pulse shaping gives a greater transmission range at lower voltage levels. This, coupled with an automated combination of the transmitter voltage and the receiver gain, ensures an optimum received signal level, guaranteeing accurate and stable measurements. An integrated waveform display allows manual triggering of the received waveform.

Features:

Review list: Saved measurements may be reviewed on site without the need of a PC connection

Time stamp: A real time clock has been integrated to provide a time stamp to every measurement recorded.

Integrated amplifier – No need to buy an external amplifier when using long cables and exponential transducers.

Compressive strength measurement: Conversion curves for strength estimation can be created in the software and uploaded to the instrument to give instant estimation of compressive strength on site.

SONREB method: Sonreb curves may be uploaded onto instrument for improved compressive strength in combination with rebound hammer measurements.

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Range0.1 - 9999 µs
Resolution0.1 µs
Display79 x 21 mm passive matrix OLED
TransmitterOptimized energizing pulse 125 V 250 V 350 V 500V AUTO
Selectable gain steps1x 10x 100x AUTO
Bandwidth20 kHz - 500 kHz
MemoryNon volatile > 500 measured values
Regional SettingsMetric and imperial units supported
Battery4x AA batteries (>20 hours continuous use)
Mains5v <500mA via USB charger
PC5v <500mA directly via USB cable
Operating temperature-10° to 60°C (0° to 140°F)
Humidity<95% RH non condensing
DimensionsUS: 6.7 x 2.1 x 8.7 in. Metric: 172 x 55 x 220 mm
