Pearpoint Flexiprobe P340 Push Rod System

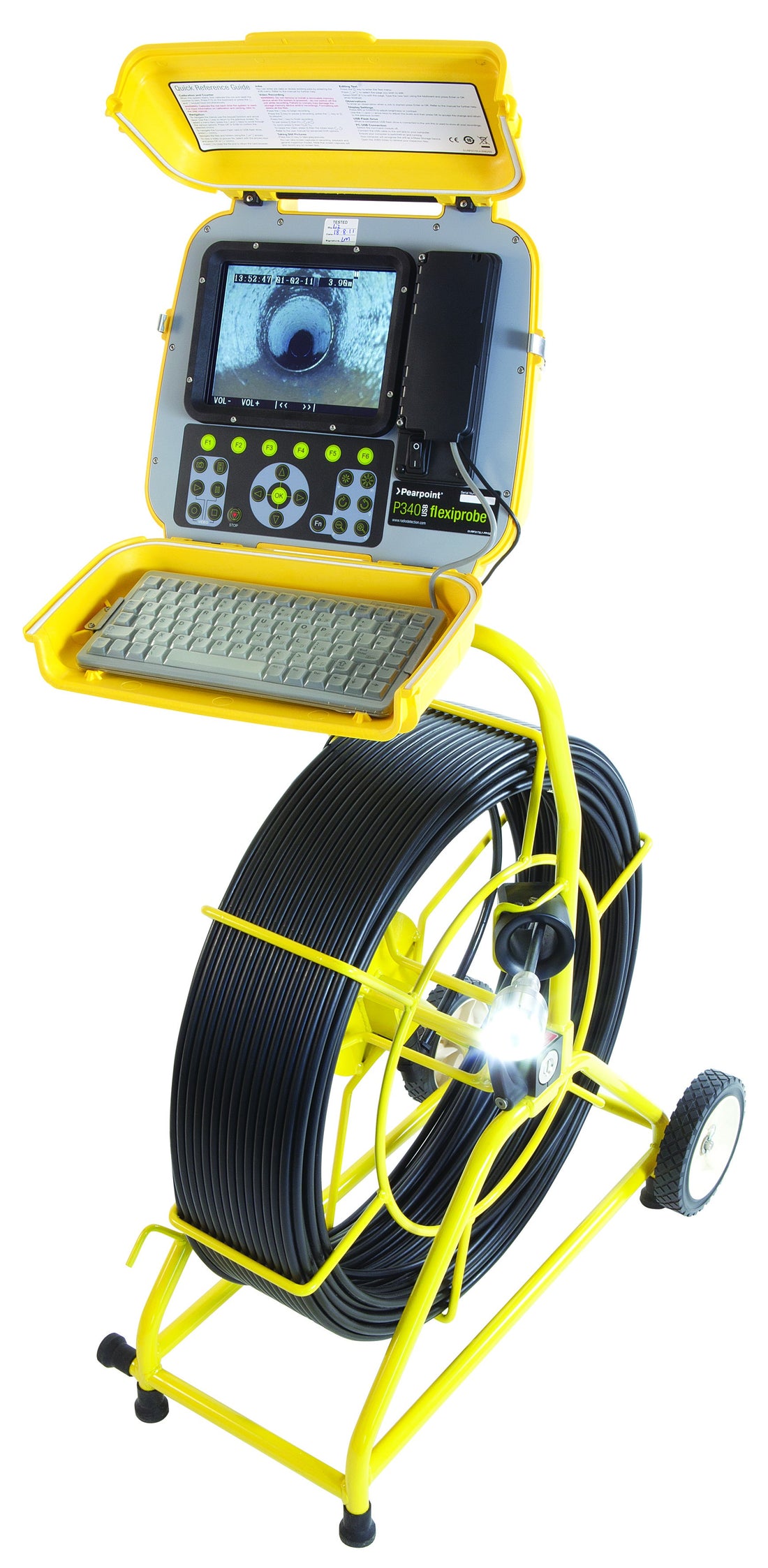

At the heart of the P340 flexiprobe system is the ruggedized and weatherproofed P340USB flexiprobe controller, which records high quality digital video or images with a single button press, and displays them on an ultra-bright 8", TFT screen. Advanced digital capabilities mean that users can zoom, pan and rotate images during recording to focus in on problem areas. The P340 flexiprobe can be adapted to any inspection requirement. A choice of 1", (25mm) or 2", (50mm), ultra-durable cameras can be mounted on range of 5 different reels from the extra-flexible 100' (30m) P341 Plumbers reel to the 500' (150m) P343 reel designed to push for longer distances. The 2" (50mm) camera is self leveling, keeping the video picture upright when navigating a pipe.
Compact reel designs ensure that the systems are fully transportable, and protected in transit. A range of compatible sondes, skids, brushes and accessories completes the package, allowing inspection of pipes up to 9", (230mm) in diameter.
Flexible USB and Compact Flash data storage
The P340USB controller fully supports the popular USB flash drive. An operator's (or their customer's) memory stick can be simply plugged in to the controller to record, store or copy inspection videos, photos and observations. The system is also compatible with Compact Flash memory cards, and can be connected directly to a PC to transfer data without the need for a card reader.
Pearpoint has developed a flexible Plumbers system designed to travel through waste water systems, negotiating most traps (from 2"/50mm) and bends (from 1 1/4"/32mm) found in commercial and residential properties. With a flexible built-in sonde facilitating pinpointing of the camera position, this new 100' (30m) reel is the ideal tool for smaller diameter plumbing inspections.
Outstanding picture quality from durable cameras
The P340 flexiprobe system offers a choice of new ultra-tough, high resolution, cameras constructed from 303 stainless steel, and capable of withstanding 11 bar of pressure - the equivalent of working 330' (100m) underwater.
1", (25mm) and 2", (50mm) models are available, combining focusable lenses with dramatically improved video resolution and the latest generation ultra-bright white LEDs to deliver a perfect and clear picture in most pipe conditions.
More productive on-site
The P340USB controller automatically organizes jobs by client, site and survey - making reporting and reviewing videos, photos and observations straightforward. The pre-installed comprehensive, and customizable, P340USB reporting sOne-touch recording to USB memory sticks and Compact Flash cardsstem can be used to quickly fill out report observations on-site. It can also produce SEWER.DAT report files, with no need to plug into a computer.
Manage data and produce reports
The new Flexisight™ Manager software is the ideal PC companion for the P340USB controller, allowing the operator to import, store and manage their digital inspection data.
Comprehensive reports can also be created with the operator's company branding, pipe graphics, descriptions and color coded defect grading (see literature for system requirements).
One-touch recording to USB memory sticks and Compact Flash cards
Outstanding picture quality from toughened cameras
Super-flexible Plumbers system for residential and commercial plumbing
High quality digital video with digital pan and zoom
Inspection reports prepared on-site with integrated report writer
Weatherproof robust and truly portable
|Battery capacity (P340+)||14.8V, 6.6Ah (98Wh)|
|Battery run-time (P340+)||Up to 1 day typical usage, 7 hrs view-only / 4 hrs recording|
|Display||8” Industrial TFT|
|Storage||High speed Compact Flash or USB flash drive|
|Connectivity||USB, analog video in/out (PAL/NTSC) , analog audio in/out|
|Dimensions||US: 14 x 14 x 8 in. Metric: 360 x 360 x 200mm|
|Weight||US: 12 lb. Metric: 5.5kg|
