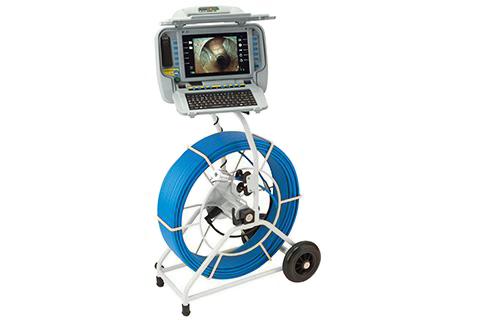

P543 500' Camera System
flexiprobe P540c is the most powerful Pearpoint controller ever designed, providing intuitive menus and dedicated function buttons to guide you quickly through your survey.
Integrated MSCC 3, 4 or 5 compliant reporting and on-board WiFi allow you to share your reports via email or DropBox, all while still on site. Or simply copy to a flash memory stick in one of the three USB ports.

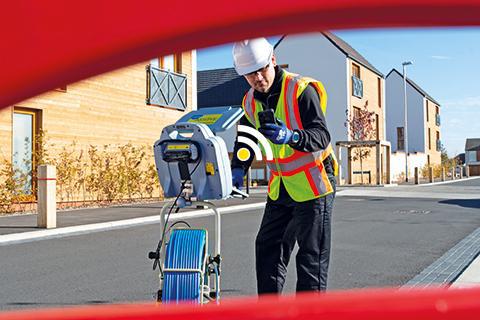

Colleagues and/or customers can see your video inspection in real-time by viewing it on a standard web browser on their local, connected communications device, such as a phone or tablet.
Designed to operate reliably in harsh ambient conditions, its polypropylene body resists scuffs and impacts
Record digital videos on the on-board flash memory and immediately share them with your client or office using your mobile phone or any other external internet access point
10 context sensitive and 7 dedicated buttons, a full QWERTY keyboard and a graphical operating system let you easily setup and use the P540c system
The 10.1" high definition monitor offers wide viewing angles and a great quality picture in most light conditions.
All flexiprobe cameras offer the latest generation ultra-bright LEDs and high resolution image sensor which combine to deliver a crisp, clear pipe picture
WRc's MSCC 3,4, and 5 compliant reports and condition classification codes are integrated in the controller operation, and created automatically.
Share xml or WinCan* files directly from the field
High capacitance built in Li-Ion battery pack, gives up to 7½ hours continuous usage*
On board and independent battery status feedback reminds you when to charge the controller, directly from your vehicle’s 12V charge point
The flexiprobe P540c pushrod inspection systems offer a range of pushrod reels with distinct capabilities and rod lengths, alongside two specialist cameras, making them a great fit for applications such as:
The second generation of extra-flexible P541 Plumbers reel offers high performance around tight bends and traps in short range surveys and is ideal for use in most waste water systems (from 1¼” / 32mm) found in commercial and residential properties.
A built-in flexi-sonde allows the user to pinpoint its location and depth without compromising maneuverability around tight corners – this can be located using a suitable pipe or cable locator, such as the RD5100S.
Laterals, industrial pipework
The P541 115’ / 35m is designed for small diameter pipes (from 1 ¼” / 32mm) and for distance. The P541 pushrod has been engineered to offer the optimum stiffness to offer long range push whilst maintaining the ability to go through bends.
Often used to go from smaller pipes into larger ones, the P541 reel can be fitted with either the 1” / 25mm or 2” / 50mm cameras, and a 1” 512Hz or 640Hz flexisonde for maximum configurability.
The P542 system is designed to deliver optimum performance in medium-diameter pipes starting from 4 / 100mm. However, its compact and robust design allows the user to extend its use to smaller pipes (will fit in a 2” / 50mm pipe).
The P542 rod offers a balanced compromise between bendability and stiffness, allowing good maneuverability and push performance.
The P542 reel is offered in 2 lengths: 200’ / 60m or 400’ /120m and can be used with either the 1" / 25mm or the 2" / 50mm cameras.
Large 'mainline' pipes
The P543 system is designed to deliver exceptional push performance when used to inspect main drains and pipes, characterized by relatively straight route.
In the right conditions, the P543 reel can push the camera up to its full length of 492’/ 150m. As with all of Pearpoint's pushrods, choose the 1" / 25mm and the 2" / 50mm cameras.
|Power supply:||Mains Input||100-240VAC, 50-60Hz, 1.7A|
|DC Output||16V, 3.75A, 60W|
|Input power requirements||10-30V, 60W|
|Battery capacity:||Internal Li-Ion Battery (4S2P)||14.68V, 6.4Ah (93.95Wh)|
|Battery run-time:||Up to 1 day's typical usage, 7.5hrs view only/5hrs continuous recording*|
|Battery level indication:||5 LEDs in handle (user activated) and on-screen symbol|
|Charging status:||2 LEDs|
|WiFi Status:||1 LED and on-screen symbol|
|Display:||10.1", 1280x800 transmissive HD color TFT|
|Storage:||Integral 128Gb and support of USB flash storage|
|Recording formats:||Video: H.264. Audio: MP3. File format: MP4|
|Connectivity:||USB 2.0 (x3), HDMI video out, Analog video in (PAL/NTSC), Headphones out|
Microphone in, Rod/Camera connectivity and 802.11 b/g/n WiFi
|Environmental Protection||P540c controller|
Power supply / charger
IP54 rated for indoor use
|-4°F to 176°F/-20°C to +80°C|
14°F to 122°F/-10°C to +50°C
32°F to 104°F/0°C to +40°C
|Dimensions:||17.5 x 15.2 x 6.1"/445 x 385 x 155mm|
|Construction:||High impact ABS and powder-coated, zinc-plated mild steel|
|*May vary depending on power management settings chosen, ambient conditions, accessories attached, recording time and other factors|
|Rods and Reels||P541 Plumbers||P541 Mini||P542 Reels||P543 Reel|
|Dimensions:||22.4" x 16.9" x 10.6"|
570 x 430 x 269mm
|22.4" x 16.9" x 10.6"|
570 x 430 x 269mm
|33.5" x 29.5" x 16.5"|
850 x 750 x 420mm
|32.0" x 46.0" x 18.7"|
813 x 1168 x 475mm
|Weight:||21lbs / 9.4 kg|
|24lbs /11kg||40lbs /18.2 kg|
|Construction:||Powder-coated tubular steel frame|
|Cameras||1"/25mm camera||1 ¼"/32mm self-|
|Dimensions:||1" x 1.52"/25.4 x 38.7mm||1.23" x 2.6"/31.24 x 66mm||1.89" x 2.87"/48 x 72.8mm|
|Weight:||0.1lbs/0.06kg||0.4lbs /0.18kg||0.8lbs /0.36kg|
|Stainless steel/sapphire glass /polycarbonate|
|Environmental:||IP68 to 330' (100m)/11bar||IP68 to 230' (70m)/7bar||IP68 to 330' (100m)/11bar|
|Temperature:||Storage: -4°F to 176°F/-20°C to +80°C|
Operating: 14°F to 122°F/-10°C to +50°C
|Focus:||Manually adjustable||Fixed||Manually adjustable|
|Focal range:||10mm to ∞||Fixed||10mm to ∞|
|Lighting||Ultra bright white LEDs|
|LED luminance:||≥ 75lm||≥ 150lm||≥ 208lm|
|Active pixels (HxV)||656 x 492 NTSC|
768 x 576 PAL
|640 x 480 NTSC|
640 x 576 PAL
|768 x 492 NTSC|
765 x 582 PAL
|Horizontal resolution:||≥ 460TVL||≥ 420TVL||≥ 460TVL|
