MultiRAE PGM-6228 10.6-Li-ion/Non-Wire LEL/H2S/CO/O2/PID/P2P
RAE Systems

MultiRAE PGM-6228 10.6-Li-ion/Non-Wire LEL/H2S/CO/O2/PID/P2P

Pine Item #

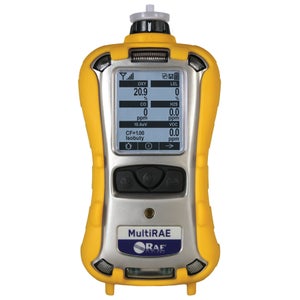

The MultiRAE is a highly versatile portable chemical detector with the most advanced features on the market. It offers a highly customizable solution for a variety of applications. The MultiRAE delivers the broadest PID sensor range in its class and the versatility to support 25 intelligent interchangeable sensor options (such as PID, NDIR for combustibles and CO2, ammonia, chlorine, formaldehyde, and phosphine)

Wireless access to real-time instrument readings and alarm status from any location

Unmistakable five-way local and remote wireless notification of alarm conditions including Man Down Alarm

Intelligent sensors store calibration data, so they can be swapped in the field

Extensive on-board gas libraries (190 VOCs and 55 combustible gases)

Largest display in its class

Continuous datalogging (6 months for 5 sensors, 24x7)


Aviation (wing tank entry)



Oil and gas


Shipping / marine

HazMat response

Clandestine drug labs

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote


Technical Specifications

Sensors25 intelligent interchangeable field-replaceable sensors including PID for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor
DisplayMonochrome graphical LCD display (128 x 160) with backlighting. Automatic screen ""flip"" feature.
Keypad Buttons3 operation and programming keys (Mode, Y/+, and N/-)
SamplingBuilt-in pump. Average flow rate: 250 cc/min. Auto shutoff in low-flow conditions
CalibrationAutomatic with AutoRAE 2 Test and Calibration System or manual
AlarmsWireless remote alarm notification; audible (95 dB @ 30 cm), vibration, visible (flashing bright red LEDs), and on-screen indication of alarm conditions
Wireless NetworkProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System
Operating Temperature-4° to 122° F (-20° to 50° C)
Performance TestsMIL-STD-810G and 461F compliant. LEL CSA C22.2 No. 152; ISA-12.13.01
LanguagesArabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polishe etc.
Wireless ApprovalsFCC Part 15, CE R&TTE, Others
Radio ModuleSupports RM900A
