pDR-1000AN Monitor Personal DataRAM Aerosol Monitor/Datalogger
Thermo Scientific

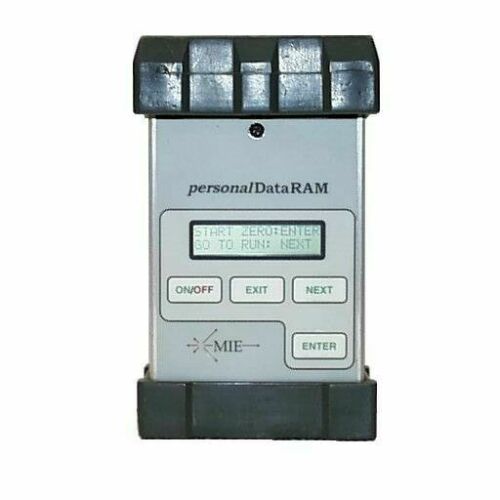

pDR-1000AN Monitor Personal DataRAM Aerosol Monitor/Datalogger

Pine Item #51350

The world's smallest and most versatile direct reading personal aerosol monitor, the personalDataRAM measures concentrations of dust, smoke, mists, and fumes in real time and sounds an onboard audible alarm when a user-defined level is exceeded.

The personalDataRAM is ideal for monitoring personal breathing zones, plant walk-through surveys, worker exposure, or indoor air quality monitoring. The instrument attaches easily to a belt or shoulder strap, and the rental unit comes with the software.

Features:

Integral datalogging

Extremely compact and rugged

US MSHA Intrinsic safety approval

Easy belt or shoulder strap attachment for portability

Flexible data logging routines

Applications:

Indoor air quality monitoring

Walk-through surveys

Personal exposure monitoring

Time & motion studies

Workplace & plant monitoring

Remediation personal surveillance

Mobile monitoring in vehicles & aircraft

Toxicology & epidemiology studies

Emergency response

Testing air filtration efficiency

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Concentration Measurement Range0.001 to 400 mg/m3
Resolution0.1% of reading or 0.001 mg/m3 whichever is greater
Accuracy± 5% of reading ± precision
Particle Size Range of Max Response0.1 to 10 µm
Datalogging13000 data points with average concentration time/date and data point number for each stored in 1 to 99 data sets
OutputRS-232 port
Power9V alkaline battery 24 hours operation or AC operation with adapter
DimensionsUS: 6.0 x 3.6 x 2.5 in. Metric: 152 x 91 x 63 mm
WeightUS: 1.1 lb. Metric: 0.510 kg
