MALA RAMAC X3M
Mala Geoscience

MALA RAMAC X3M

Pine Item #54330

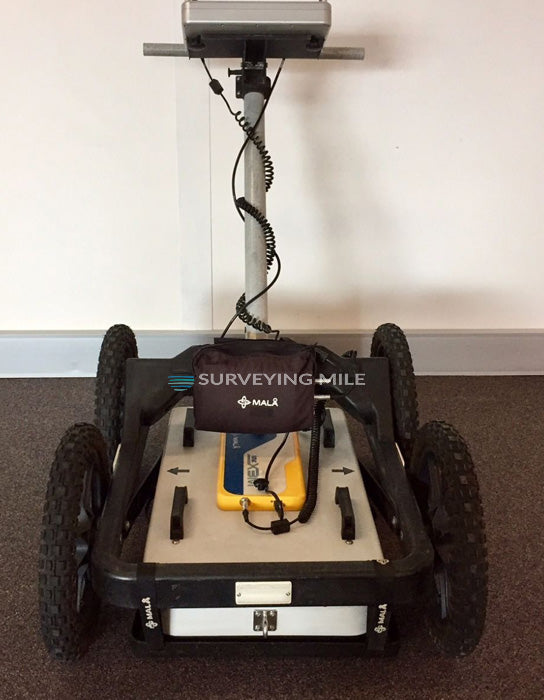

The RAMAC X3M is an intergrated radar control unit, fitted directly on the shielded antenna and powered externally. The built-in electronic design makes it low weight and compact size system, easier to assemble and operate. No cable is required since the unit communicates directly with the laptop.

Features:

Autostacking for highest data quality and optimized speed performance

Compact and integrated radar unit easy to use

Compatible with 100 250 500800 and 5000 MHz antennas

Low power consumption for extended operation time

Applications:

Autostacking for highest data quality and optimized speed performance

Compact and integrated radar unit easy to use

Compatible with 100 250 500800 and 5000 MHz antennas

Low power consumption for extended operation time

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Pulse repetition frequency100 kHz (standard)
Data bits16
Communication Speed>700 kb/s
Data transfer rate40-400 kB/s at 4Mbit/s
Acquisition Modedistance/time/manual
Operating Time>10 hours with standard battery accessories
ChargerQuick Charger automatic charge cycle 110-240 VAC input
Charge Time3-5 h (80-100%)
SoftwareCompatible with Ground Vision
Power SupplyExternal 12V DC battery
Operating Temperature-20ºC to +50ºC

Dimension

USMetric
Unit Weight3.7 lb1.7 kg
Dimensions12.2 x 7 x 1.2 in310 x 180 x 30 mm

Weight

USMetric
