Ludlum Model 5 Geiger Counter

Pine Item #51514

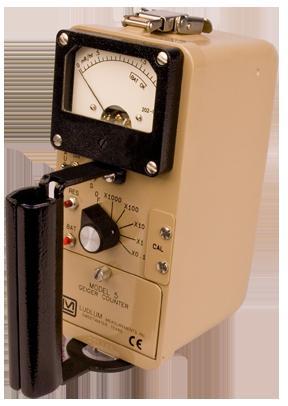

The Model 5 is a gamma exposure ratemeter equipped with two internally housed, energy-compensated GM detectors that measure over the range of 0-20 mSv/h (0-2000 mR/hr). The aluminum cast instrument housing with its separate battery compartment and accompanying metal handle offer an industrial robustness and quality that promote long lasting protection and instrument life. The front-panel controls include a rotary switch for selecting the five display ranges and instrument shut-off, an audio on/off switch, a fast/slow response switch, and push-buttons for count reset and battery test. The Model 5 is a complete turn-key system and includes two ''D'' cell batteries.

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

INDICATED USE: gamma survey
DETECTOR: 2 energy-compensated GMs housed inside instrument enclosure
ENERGY RESPONSE: within 15% of true value from 60 keV to 3 MeV
DETECTION RANGE: 0-20 mSv/h (0-2000 mR/hr)
HIGH VOLTAGE:540 +/- 25 Vdc
WORKING ENVIRONMENT: normal working conditions
METER: analog dial: 0-2 mR/hr BAT TEST (others available)
MULTIPLIER:x0.1 x1 x10 x100 x1000
BACKLIGHT: no
OVERLOAD PROTECTION:yes
AUDIO: built-in unimorph type speaker with ON/OFF switch
ALERT/ALARM: no
RESET: pushbutton to zero meter
CALIBRATION CONTROLS: accessible from the front of the instrument
RS-232 PORT: no
POWER:two each ''D'' cell batteries (housed in sealed compartment that is externally accessible)
BATTERY LIFE:typically greater than 2000 hours
TEMPERATURE RANGE: -20 to 50
