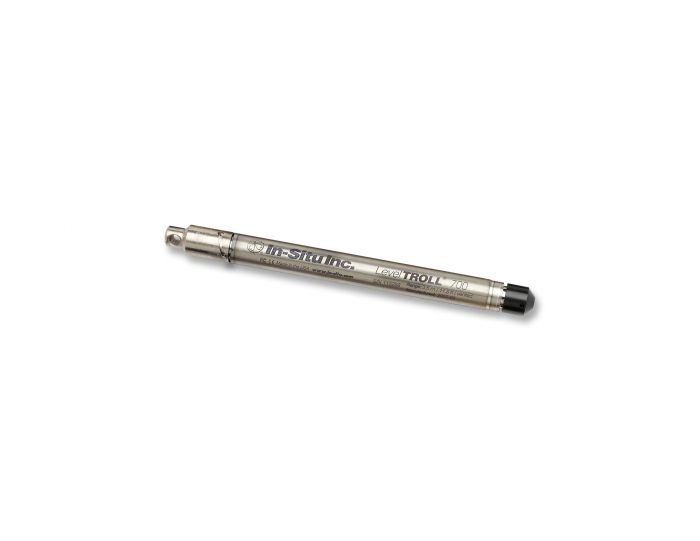

In-Situ Level TROLL 700 Data Logger 30 psig
InSitu

In-Situ Level TROLL 700 Data Logger 30 psig

Pine Item #52051

Designed specifically for aquifer characterization, the Level TROLL 700, with titanium construction, 4 MB memory that holds 260,000 data points, higher data resolution, and advanced logging modes, is the professional's choice for accurate and reliable results.The Level TROLL 700 provides continuous monitoring of water level, water pressure, and temperature. Available in pressure ranges up to 500 psig for vented configurations and 1000 psia for non-vented configurations.

This premier data logger is ideal for specialized applications. 3D factory calibration and our unique anti-drift system ensure accuracy. Low-maintenance deployment saves on time in the field and cost. And with our shared ecosystem, you can easily integrate instrumentation, in-well telemetry, and HydroVu Data Services.

Features:

3D Factory Calibration

Certified Calibrations

VuSitu

Shared Ecosystem

Anti-Drift System

Continuous Groundwater Monitoring

Remediation

Aquifer Characterization

Applications:

AQUIFER CHARACTERIZATION: SLUG & PUMPING TESTS

COASTAL: TIDAL, WETLAND & ESTUARY STUDIES

HYDROLOGIC EVENTS: STORM SURGE & FLOOD CONTROL SYSTEMS

LONG-TERM, REAL-TIME GROUNDWATER & SURFACE WATER MONITORING

MINING & REMEDIATION

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Temperature RangeOperational: -20 to 80° C (-4 to 176° F) Storage: -40 to 80° C (-40 to 176° F) Calibrated: -5 to 50° C (23 to 122° F)
Diameter1.83 cm (0.72 in.)
Length21.6 cm (8.5 in.
Weight124 g (0.27 lb)
MaterialsTitanium body; Delrin nose cone
Output OptionsA Modbus/RS485, SDI-12, 4 to 20 mA
Battery Type & Lifes 3.6V lithium; 10 years or 2M readings
External Power8 to 36 VDC
Memory4.0 MB 250,000 50 logs
Fastest Logging Rate4 per second
Fastest Output RateModbus: 2 per second SDI-12 & 4 to 20 mA: 1 per second
Log TypesLinear, Fast Linear, Linear Average, Event, Step Linear, True Logarithmic
