Landfill Meter-GEM5000 CH4/CO2/O2/H2S 0-500ppm/CO(H2 Comp)
Landfill Meter-GEM5000 CH4/CO2/O2/H2S 0-500ppm/CO(H2 Comp)
Landfill Meter-GEM5000 CH4/CO2/O2/H2S 0-500ppm/CO(H2 Comp)
Landfill Meter-GEM5000 CH4/CO2/O2/H2S 0-500ppm/CO(H2 Comp)
Landfill Meter-GEM5000 CH4/CO2/O2/H2S 0-500ppm/CO(H2 Comp)
Landtec

Landfill Meter-GEM5000 CH4/CO2/O2/H2S 0-500ppm/CO(H2 Comp)

Pine Item #

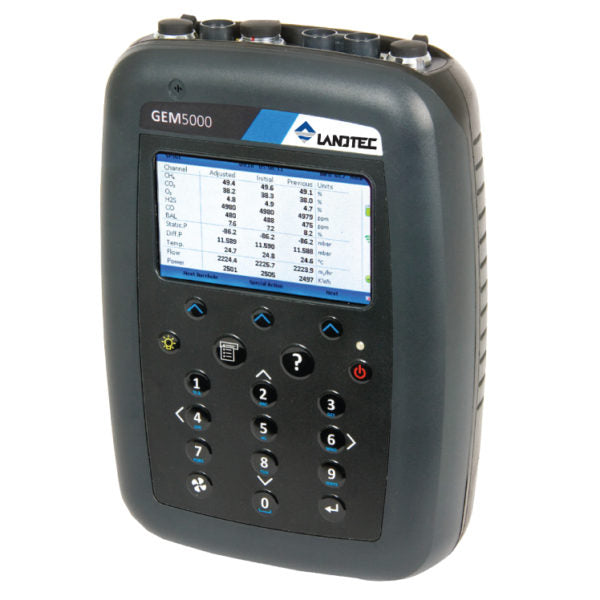

The GEM™5000 is designed specifically for use on landfills to monitor Landfill Gas (LFG) Collection & Control Systems. The GEM™5000 samples and analyzes the methane, carbon dioxide and oxygen content of landfill gas with options for additional analysis.

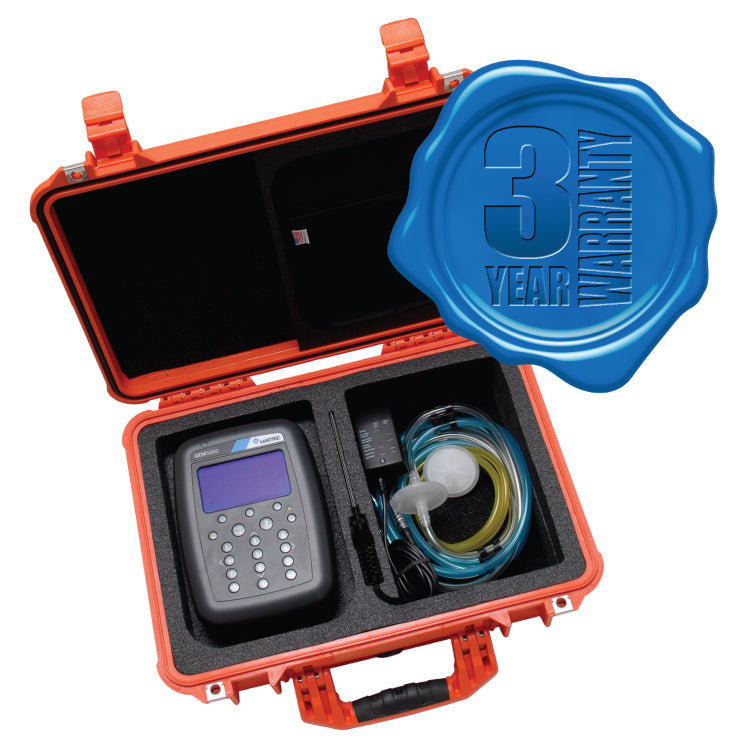

GEM5000 Complete Package Includes:
Instrument, hoses, heavy duty water trap filter, soft case, A.C. battery charger, electronic manual accompanies software, LANDTEC System Gas Analyzer Manager (LSGAM) software, USB download cable and hard-case. Reads: Methane, Carbon Dioxide, Oxygen, temperature (when used with optional probe), atmospheric pressure, differential pressure and calculates gas flow.

NAV and Plus model packages also include more features such as GPS and additional gas measurements

Features:

Measures % CH4, CO2 and O2 Volume, static pressure and differential pressure

Calculates balance gas, flow (SCFM) and calorific value (KW or BTU)>

High Accuracy and Fast Response Time

Lighter and More Compact

Annual recommended factory service

Certified intrinsically safe for landfill use

Calibrated to ISO/IEC 17025

3 year warranty

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Gases MeasuredCH4, CO2, O2, CO, H2S
RangesCH4: 0-100%, CO2: 0-100%, O2: 0-25%, CO: 0-2000ppm, H2S: 0-500ppm
FlowTypically 550cc/min
Flow with 80 in. H2O vacuumApproximately 80cc/min
Operating Temperature Range14°F - 122°F (-10°C + 50°C)
Operating Pressure-100 in. H2O, + 100 in. H20 (-250mbar, +250mbar)
Relative Humidity0-95% non condensing
Barometric Pressure± 14.7 in. Hg (±500mbar) from calibration pressure
Barometric Pressure Accuracy ± 1% typically
Battery LifeTypical use 8 hours from fully charged
Charge TimeApproximately 3 hours from complete discharge
