Jerome J505 Atomic Fluorescence Spectroscopy Mercury Vapor Analyzer

Pine Item #51176

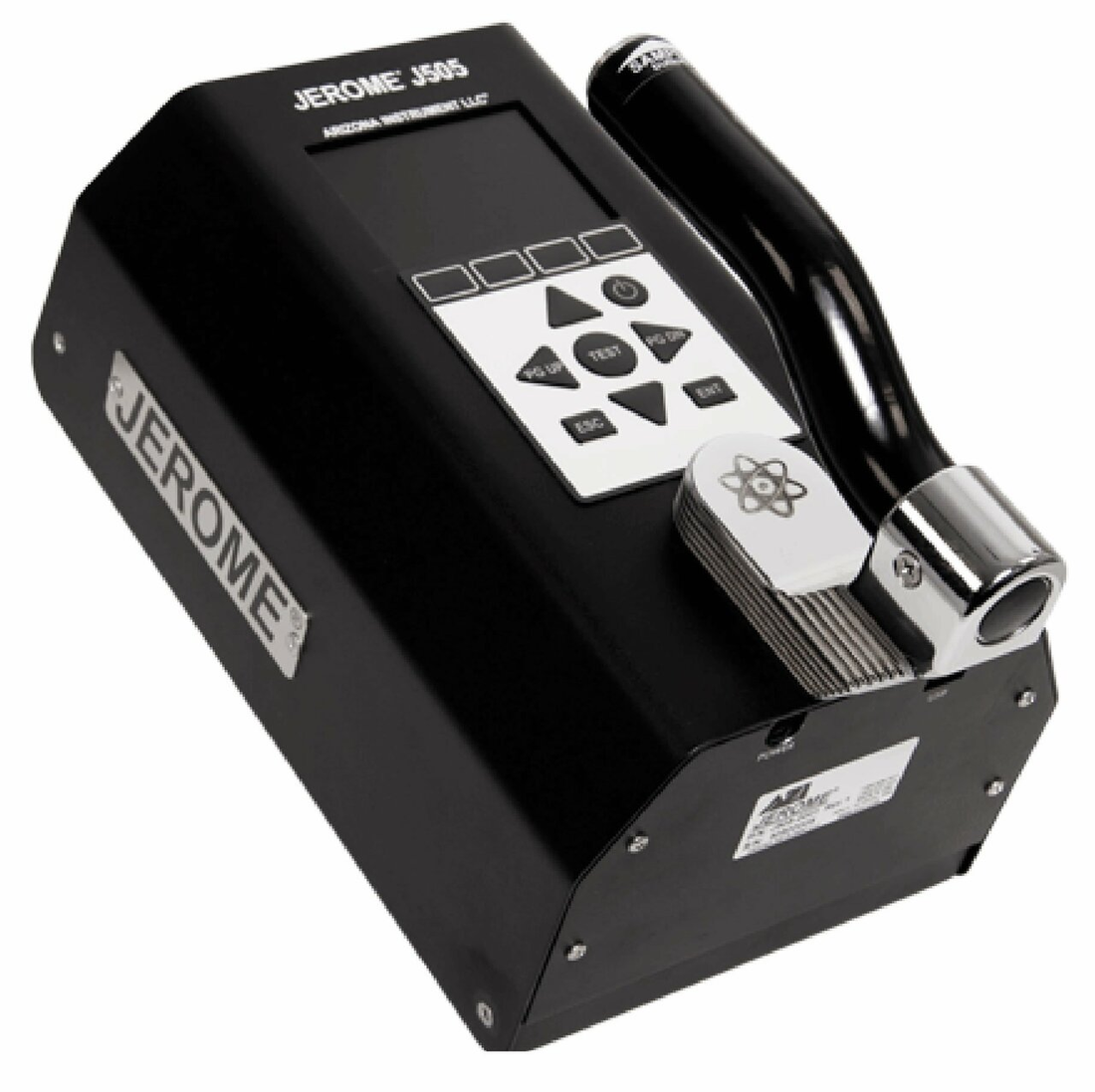

The Jerome ® J505 Mercury Vapor Analyzer is a portable fluorescence spectroscopy analyzer, which allows the detection cell to be simpler, smaller, lighter weight and more durable than competing spectroscopy instruments. The highly efficient optical cell requires less flow to purge the system, allowing the J505 to run at a lower flow rate minimizing sample dilution as found in competing spectroscopy instruments.

Features:

Meets EPA & ATSDR Cleanup Levels

Flexible Data Handling

Choice of Two Independently Adjustable High Limit Alarms

Programmable Auto Sampling Mode

Choice of 3 Units of Measurement (nanograms micrograms milligrams)

Color Display with Easy to Use Menu System

Battery Operation for 10+ Hours

Battery Charges in 3 Hours or Less

A USB Keyboard can be used for Easy Entry of Locations (optional)

Integrated Data Logging Saves all Test Results (excludes search mode)

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Resolution:0.01 µg/m3 (10ng/m3) in standard test mode
Detection Range:0.05 to 500 µg/m3
Data Storage Capacity:Up to 10000 test results 100 test locations
Operating Environment:5 to 45°C non-condensing non-explosive
Accuracy:0.3 µg/m3 ±15%\n1 µg/m3 ±10%\n25 µg/m3 ±10%\n100 µg/m3 ±10%
Typical Response Time:Search: 8 sec. first reading; continuous 1 sec. updates\nQuick: 16 sec.\nStandard: 28 sec.
Flow Rate:1 liter/minute
Power Requirements:12 VDC power adapter runs on 100-240 VAC 0.8 A
Internal Battery Pack:Rechargeable nickel metal hydride (NiMH) with 10+ hours of operation | Battery charges in 3 hours or less
Output:USB flash drive

Dimension

USMetric
Dimensions12\" L x 6.2\" W x 8.4\" H-

Weight

USMetric
Weight6.5 lb.-
