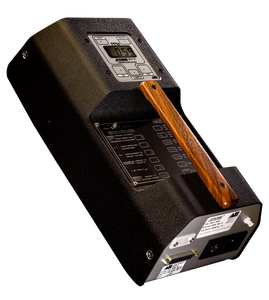

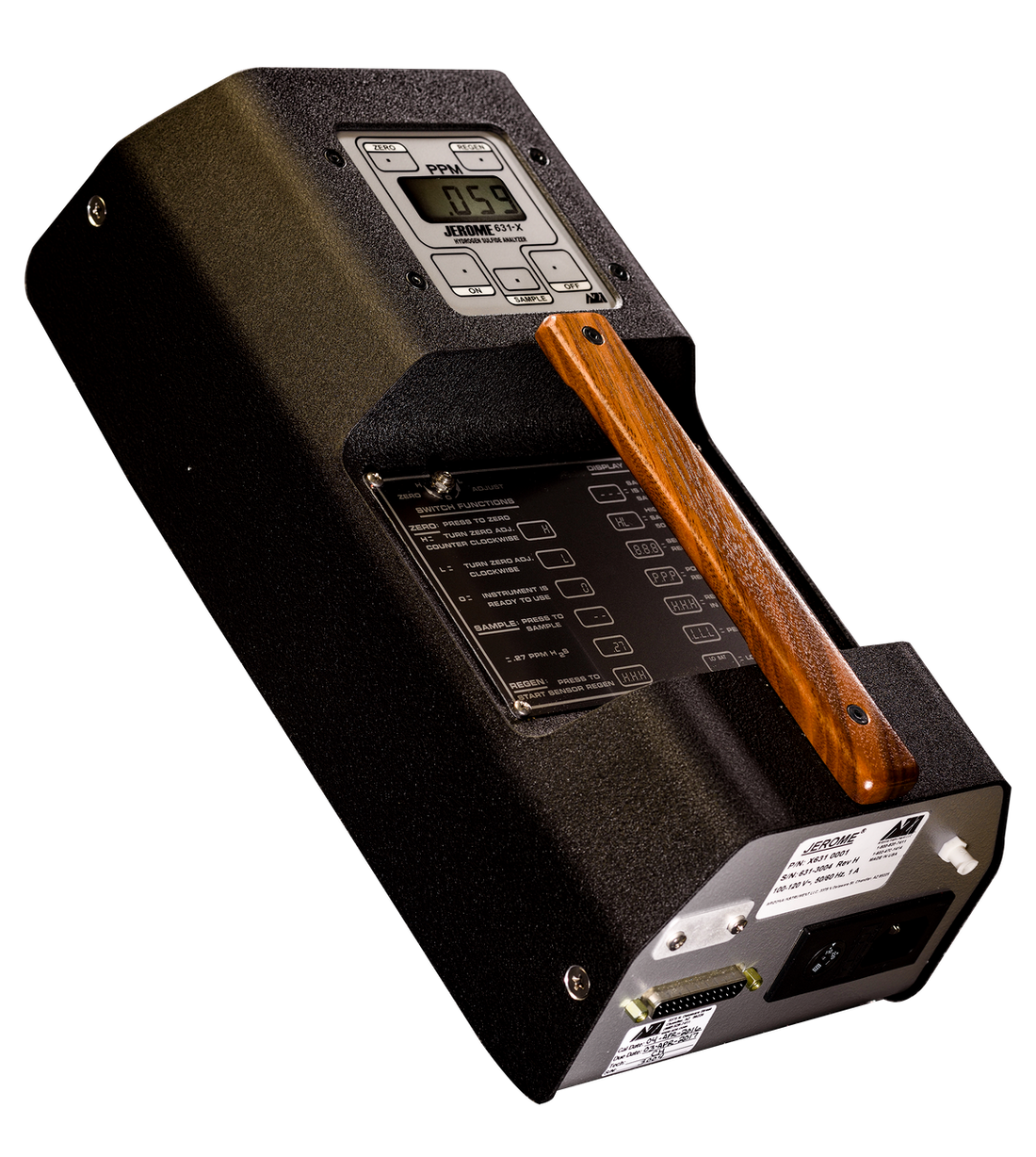

Jerome Hydrogen Sulfide Analyzer Models 631-X and J631-XE
Arizona Instruments

Jerome Hydrogen Sulfide Analyzer Models 631-X and J631-XE

Pine Item #51146

The Jerome H2S analyzer from Pine is the ideal Hydrogen Sulfide rental solution.  The extremely broad measurement range of this portable toxic vapor detector, from 0.001 ppm (1 ppb) to 50 ppm, makes it appropriate for odor nuisance monitoring, scrubber efficiency testing, leak detection, regulatory compliance, corrosion control and as an accuracy check for other hydrogen sulfide monitors and control systems.

As with the mercury vapor analyzer, the 631 hydrogen sulfide analyzer offers a survey mode to pinpoint an H2S source.  Just a call away, the Jerome H2S Analyzer could be the ideal solution to your H2S monitoring.

Features:

Rugged and easy to operate

Inherently stable gold film sensor

Pressure sensitive membrane switch operation

Rechargeable internal battery pack for portability

Wide detection range allows for multiple applications

Automatic LCD backlight during low light conditions

Survey mode for rapid source detection of hydrogen sulfide concentrations

Microprocessor ensures a linear response throughout the entire range of the sensor

Applications:

Ambient air analysis

Odor Nuisance monitoring

Regulatory Compliance

Control Room Corrosion Monitoring

Quality Assurance and Control

Scrubber Efficiency and Testing

Leak Detection

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Resolution0.001 at Range 0 to 1 ppm at Range 3
Detection Range0.003-50 ppm
Precision5% Relative Standard Deviation
AccuracyRange 0: ±0.003 ppm at 0.050 ppm, Range 1: ±0.03 ppm at 0.50 ppm, Range 2: ±0.3 ppm at 5.0 ppm, Range 3: ±2 ppm at 25 ppm
Flow Rate150 cc/min or 0.15 l/min
Internal Battery PackRechargeable nickel-cadmium
DimensionsUS: 6 x 13 x 4 in. Metric: 16 x 33 x 10
WeightUS: 7 lb. Metric: 3 kg
