HQ2100 Portable Multi-Meter with Gel pH Electrode PHC101, 1 m Cable

Pine Item #

A robust and intuitive range of portable meters, instilling confidence in reporting and managing your results.

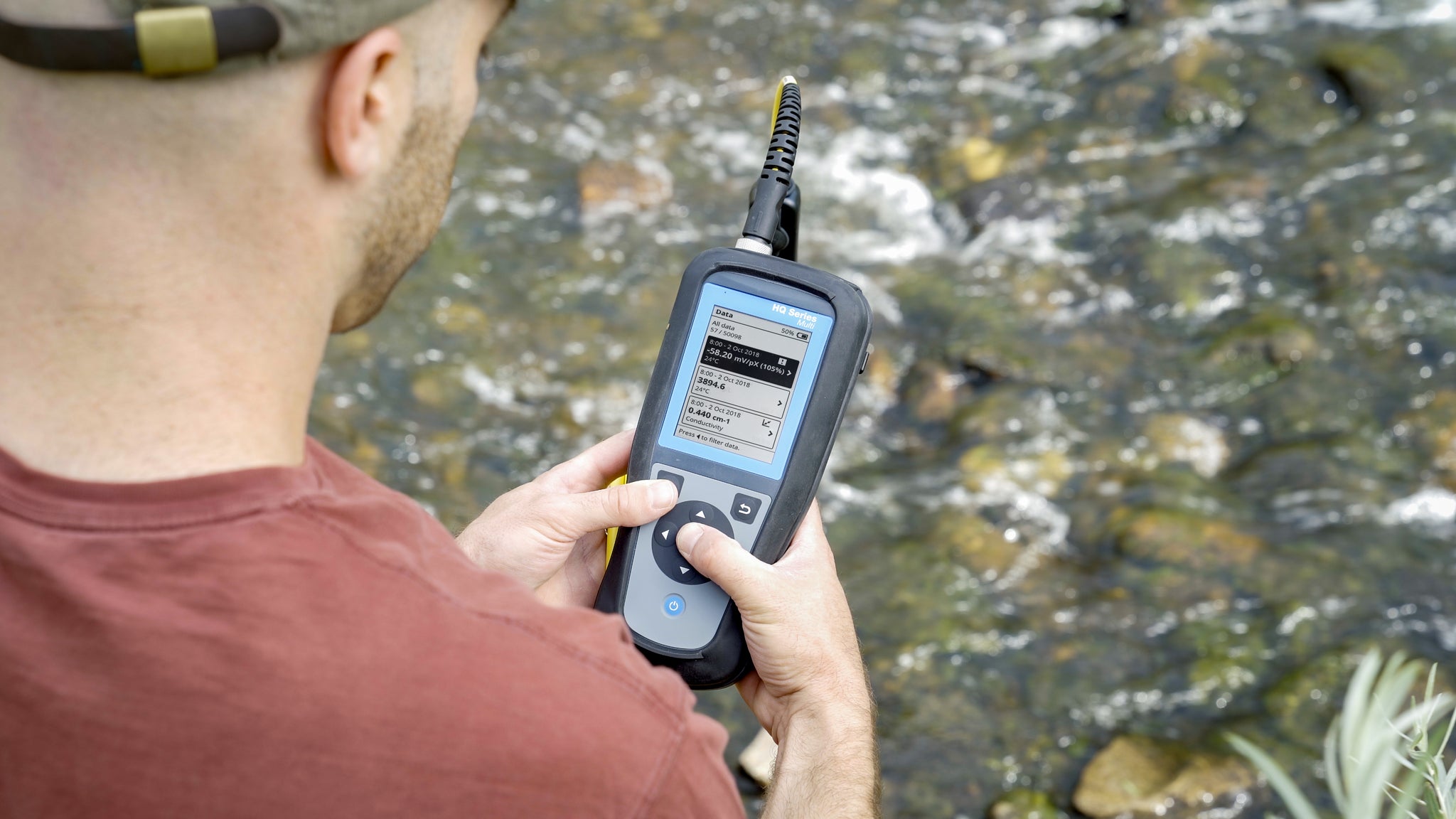

The HQ Series is for water quality professionals who want to perform electrochemical analysis for field and lab environments. Our new portable platform will allow you to collect intuitive, accurate measurements, manage data, and easily review results, while supplying an IP67 robustness rating.
They provide a true rugged, field-ready solution with on-screen, visual step-by-step operating guidance that provides users with confidence in reporting and managing their results. Unlike other field meters with basic user interfaces and without easily accessible data, the HQ Series secures, simplifies, and accelerates the complete measurement process for field users.

Choose from 4 models, including the three-input HQ4000 series, dual-input HQ2000 series, and single-input HQ1000 series. These meters offer a range in measurement versatility - eliminating the need for multiple pieces of equipment.

Features:

Performing a successful calibration has never been so simple

Deliver your daily activity in just a few clicks

Sensors designed for every application

Peace of mind: Hach service and support will be there for you

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Specifications

Accessories IncludedUSB charger, power cable, and clips
Automatic Buffer Recognition:Yes
BackligntYes
Cable Length:1 m
Calibration Intervals/Alerts/Reminder:Off, selectable from 2 hours to 7 days
Certifications:CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
Data Export:USB connection to PC or USB storage device (limited to the storage device capacity).
Data Memory:10,000 data points
Data Storage:Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode.
Dimensions (H x W x D):63 mm x 97 mm x 220 mm
Display:Up to 3 parameters at a time, dependent on HQ model
Display Type:536x336 Mono-TFT
DO Measurement Range:0.1 - 20.0 mg/L (ppm), 1 - 200% saturation
DO Resolution:0.1
Enclosure Rating:IP67 (with battery compartment installed)
GLP Features:Date; Time; Sample ID; Operator ID, Calibration
Inputs:1
Instrument:Portable
ISE Direct Measurement Range:No
ISE Electrode Calibration:No
Kit?Yes
Languages:English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian
Lock Function:Continuous / Auto-stabilization ("press to read") / At Interval
Measurement Method:Probe specific programmed method settings
Model:HQ2100 Multi/1 Channel
mV Measurement at Stable Reading:Yes
mV Measurement Range:Yes
mV Resolution:0.1 mV
Operating Error Messages:Clear text error messages displayed
Operating Humidity:90% (non-condensing)
Operating Interface:Soft Touch Keypad
Operating Temperature:0 - 60 °C
ORP Electrode Calibration:Predefined ORP standards (including Zobell's solution)
Parameter:pH
pH Buffer Sets:Colour-coded: 4.01, 7.00, 10.01 pH;
IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45
DIN: 1.09, 4.65, 9.23
User-defined custom buffer sets
pH Electrode calibration:1 - 3 Calibration points
Calibration summary data logged and displayed
pH Measurement Range:0 - 14 pH
pH Resolution:Selectable:
0.001/0.01/0.1 pH
Power Supply:Rechargeable lithium-ion battery 18650 (internal)
Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external)
Probes included:PHC10101
Probe Type:Intellical Standard Laboratory or Rugged Field
Protection Class:IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external
Salinity Measurement Range:0 - 42 (ppt) (‰)
Salinity Resolution:0.01 (ppt) (‰)
Sensor A:PHC10101
Sensor B:None
Sensor C:None
Storage Conditions:-20 - 60 °C, max. 90% relative humidity (non-condensing)
TDS Measurement Range:0.00 mg/L - 50.0 g/L NaCl
TDS Resolution:0.01 mg/L - 0.1 g/L upon measuring range
Temperature Compensation:Automatic Temperature compensation for pH
Temperature Measurement:°C or °F
Temperature Resolution:0.1 °C
Type of measurement:Field Measurements
Warranty:12 months
Weight:519 g (Meter only)

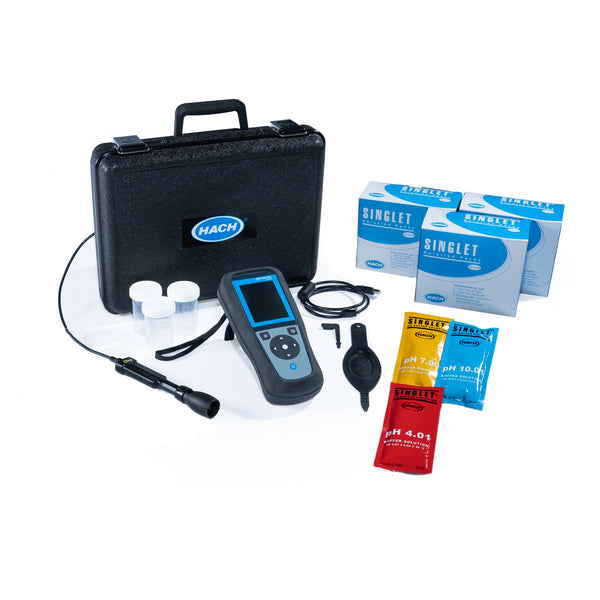

What's included?:LEV015.53.2100A HQ2100 Portable pH/ORP/EC/TDS/DO Multi-Meter, 1 channel
PHC10101 IntelliCAL pH electrode, pH 2-14, 0-50 °C, 1 m cable
LEZ015.99.A001A HQ standard electrode field case
LEZ015.99A003A HQ hand strap & kickstand
LEZ015.99.A004A HQ protective glove
2097000 Disposable wipes, 11x22 cm, pk/280
2770020 Singlet single-use pH Buffer, pH 4.01, pk/20
2770120 Singlet single-use pH Buffer, pH 7.00, pk/20
2770220 Singlet single-use pH Buffer, pH 10.01, pk/20
User manuals

Technical Data

ModelHQ1110 pH/ORP/1 ChannelHQ1130 DO/1 ChannelHQ1140 EC/TDS/1 ChannelHQ2100 Multi/1 ChannelHQ2200 Multi/2 ChannelsHQ4100 Multi/ISE/1 ChannelHQ4200 Multi/ISE/2 ChannelsHQ4300 Multi/ISE/3 Channels
Data Memory5000 data points10,000 data points100,000 data points
Display Type536x336 Mono-TFT536x336 Mono-TFT640x480 Color TFT
Inputs112123
Weight (Meter only)519g519g541g530g550g570g
WarrantyEU: 2 years
US and other geographies: 1 year
EU: 2 years
US and other geographies: 1 year
3 years
Dimensions (H x W x D)63 mm x 97 mm x 220 mm
Enclosure RatingIP67 (with battery compartment installed)
Data StorageAutomatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode
Data ExportUSB connection to PC or USB storage device (limited to the storage device capacity).
Software availableClaros
DisplayUp to 3 parameters at a time, dependent on HQ mode
BacklightYes
Lock FunctionContinuous / Auto-stabilization (“press to read”) / At Interva
LanguagesEnglish, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian
CertificationsCE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
GLP FeaturesDate; Time; Sample ID; Operator ID, Calibration
Power SupplyRechargeable lithium-ion battery 18650 (internal)
Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external)
