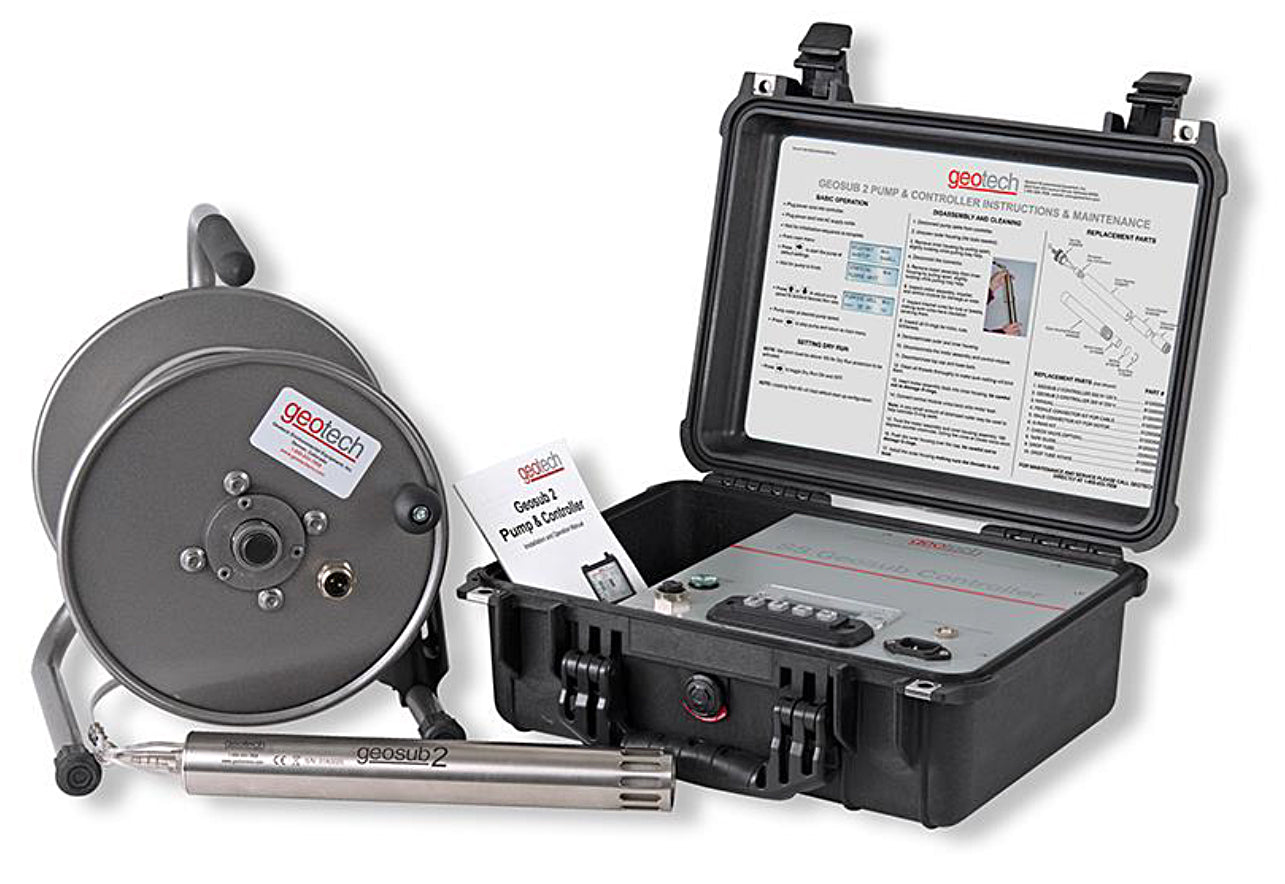

Geotech Geosub 2 Controller, CE 120V, Input 300W, DC Output
PFAS Accepted Equipment

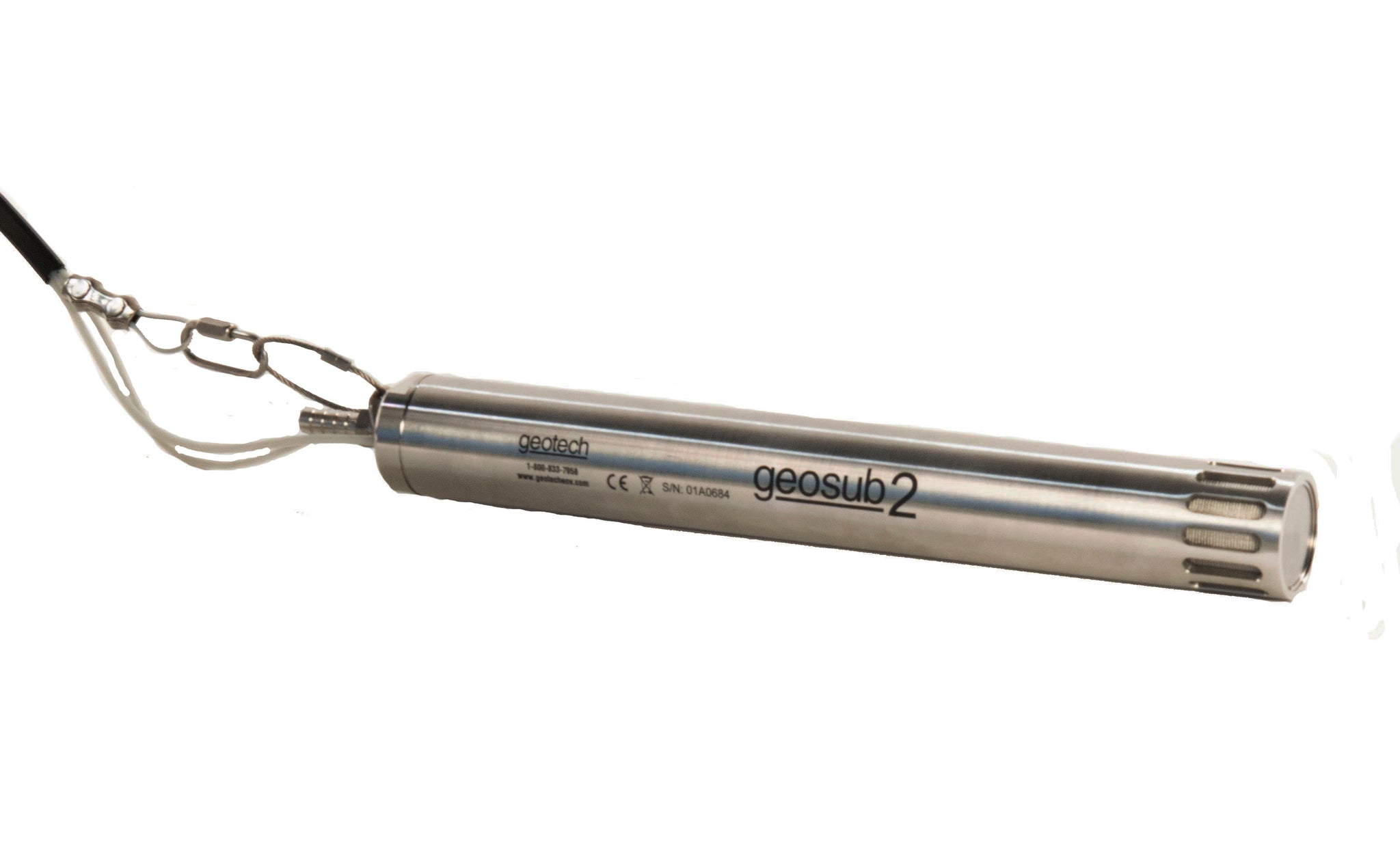

Note: The Geotech Geosub 2 Pump #52320 is a separate item.
The Geosub 2 Controller is designed specifically for Geotech's Geosub 2 Pump use. It provides a safe, conditioned variable DC output power from an AC power source. Built-in sensing gives the operator accurate and precise control over the pump during sampling events. An average 1000 Watt gasoline powered generator with 1 gallon of gasoline can operate the SS Geosub Controller and Geotech's sampling pump at full power for up to 18 hours continuously (generally, much longer runtimes can be expected as the controller is used to reduce water flow for low flow sampling).
Features:
Converts AC Voltage to variable up to 300 watt DC voltage output
Short circuit protection for your safety
Heavy duty rated power cable for years of service
2-line x 16-character wide temperature range alpha-numeric digital display
Push button Up/Down control
Internal processor saves individual well parameters

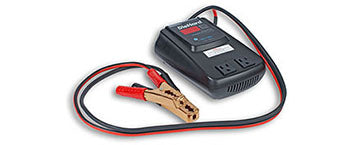

Optional DC to AC Inverter can be connected to a vehicle battery
Specifications
| Controller | |
|---|---|
| Input Power Range: | 100-130 Volts AC 50/60 HZ 310 Watts 4.2 amps nominal full load 115 Volts AC 200-250 Volts AC 50/60 HZ 310 Watts 2.1 amps nominal full load 230 Volts AC |
| Output Power: | Variable 0-46V DC @ <300 Watts |
| Output Power @ Maximum Voltage: | 10 amps maximum |
| Operating Temperature: | -20°F to 100°F (-29°C to 38°C) ambient air temp. |
| Humidity: | Up to 90% Humidity |
| Weight of Unit: | 16.45 lbs. (7.46 kg) |
| Size of Unit: | 16" L x 13" W x 7" H (41cm L x 33cm W x 18cm H) |
| Input Protection: | 5A CB |
