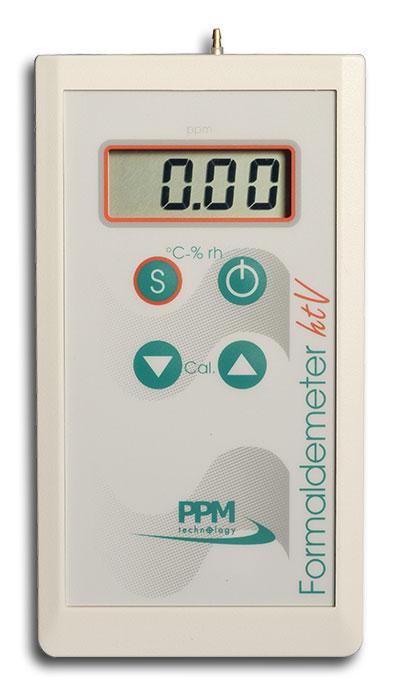

PPM Technology Formaldemeter HTVm Airborne Formaldehyde Monitor

Pine Item #51167

The latest 3-parameter instrument from PPM Technology is now available to hire from Pine.  Directly measuring airborne formaldehyde concentrations as well as ambient temperature and humidity levels, the HTV builds on the technology developed in the popular Formaldemeter 400.

The addition of unique compensation techniques allows the HTV to accurately measure low levels of formaldehyde - even in humid conditions - whilst still maintaining ease of use and simple calibration. With the use of formaldehyde in industry and the recent issues raised in public health and indoor air quality typical there are many applications for this instrument.

Features:

Displays formaldehyde concentration in both parts per million (ppm) and mg/m3.

Fast sampling by pressing a single button and quick recovery from normal concentrations.

Immune to extremes of humidity and temperature thanks to a unique sampling method.

Manufactured to ISO 9001:2000 quality standards and compliant to CE regulations.

Applications:

Displays formaldehyde concentration in both parts per million (ppm) and mg/m3.

Fast sampling by pressing a single button and quick recovery from normal concentrations.

Immune to extremes of humidity and temperature thanks to a unique sampling method.

Manufactured to ISO 9001:2000 quality standards and compliant to CE regulations.

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

InstrumentNULL
Sampling Method10ml snatch-sample of air taken by internal pump.
Sampling frequency1-3 minutes depending on previous sample.
Response Time:60 seconds in high accuracy mode approx. 8 seconds in lower accuracy mode.
Formaldehyde SensorNULL
TypeInterchangeable digital CMOSens®.
Range-40 to +128°C (-40 to +262.4°F) 0-100% RH (probe only)
Resolution0.01 ppm
Precision2.00%
Accuracy± 0.4°C ± 3% RH
Temperature & Humidity ModuleNULL

Dimension

USMetric
Instrument with ABS plastic case5.9 x 3.1 x 2.1 150 x 80 x 34 mm
Padded accessory case10.5 x 9.1 x 2 266 x 230 x 50

Weight

USMetric
Instrument with ABS plastic case-9.5 oz
Instrument with alkaline battery9.5 oz270g
Total kit1.6 lbs750g
