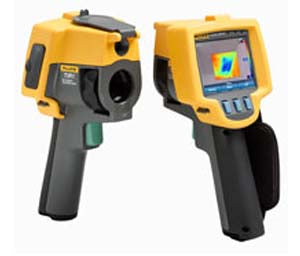

Fluke TiR1(-4F_212F)
Fluke

Fluke TiR1(-4F_212F)

Pine Item #54303

The Fluke TiR1 Thermal Imaging cameras are the perfect imagers for building envelope, restoration and remediation, inspection and roofing applications. See things both ways "infrared and visual (visible light) images fused together communicating critical information faster and easier" traditional infrared images are no longer enough. IR-Fusion, a patent-pending technology that simultaneously captures a digital photo in addition to the infrared image and fuses it together taking the mystery out of IR image analysis. IR-Fusion is standard on TiR1 models.

Features:

All Fluke imagers come with IR-Fusion® Technology

both in camera and software (combines visible image

with IR image in full screen or picture-in-picture views)

for easy identification and reporting of problems

Rugged and reliable: Engineered to withstand a 2 m (6.5 ft) drop

9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD

Temperature range and thermal sensitivity optimized for building diagnostics applications

Excellent thermal sensitivity for seeing even small temperature differences (which could indicate problems)

Adjustable hand strap for left- or right-handed users

Manufactured in the U.S.A.

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Display9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
TemperatureTemperature measurement range (not calibrated below -10 °C)
Accuracy± 2 °C or 2 % (whichever is greater)
Measurement modesSmooth auto-scaling and manual scaling
Field of view23° x 17°
Spatial resolution (IFOV)2.5 mRad
Thermal sensitivity (NETD)0.07
Minimum span (in manual mode)2.5 °C (4.5 °F)
Minimum span (in auto mode)5 °C (9 °F)
Infrared lens type20 mm F = 0.8 lens
Infrared spectral band7.5 µm to 14 µm
