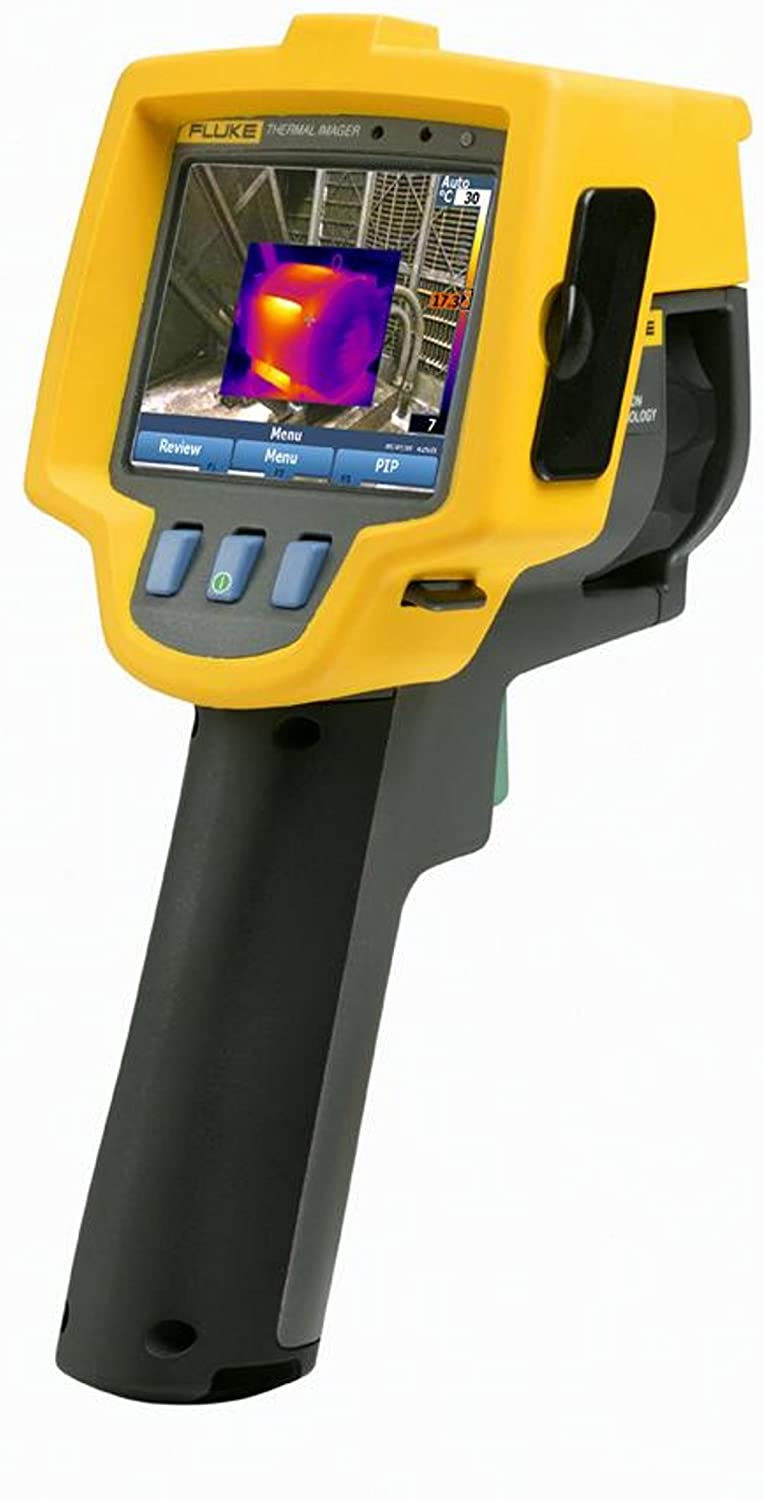

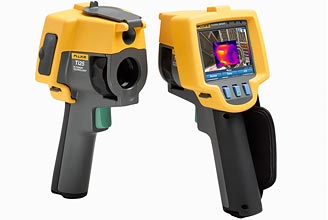

Fluke Ti25 Thermal Camera

Pine Item #54304

Coronavirus / COVID-19 FEATURED ITEM!

The ultimate tools for troubleshooting and maintenance

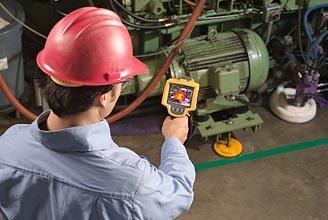

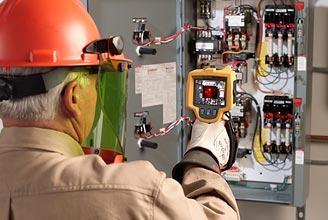

This thermal Imager is the perfect tool to add to your problem-solving arsenal. Built for tough work environments, this high-performance, fully radiometric infrared camera is ideal for troubleshooting electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment, and others.

IR-Fusion ® Technology

See things both ways "infrared and visual (visible light) images combined together communicating critical information faster and easier" traditional infrared images are no longer enough. IR-Fusion, a patent-pending technology that simultaneously captures a digital photo in addition to the infrared image and combines it together, taking the mystery out of IR image analysis. IR-Fusion is standard on Fluke Ti25.

Features:

Enhanced problem detection and analysis capabilities with IR-Fusion® Technology. Simply scroll through the different viewing modes quickly to better identify trouble areas in Full IR thermal picture-in-picture or automatic blend visual and thermal images.

Optimized for field use in harsh work environments.

Engineered and tested to withstand a 2 m (6.5 ft) drop - ;When was the last time you dropped a tool?

Withstands dust and water—tested to an IP54 rating.

Delivers the clear crisp images needed to find problems fast.

Identify even small temperature differences that could indicate problems with excellent thermal sensitivity (NETD).

Intuitive three-button menu is easy to use—simply navigate with the push of a thumb.

Reflected background temperature (reflected temperature compensation)

No need to carry pen and paper—record findings by speaking into the camera. Voice annotations can be recorded with every image you take. Voice comments are saved along with individual images for future reference.

Everything needed to get started is included. Training DVD is now included free. See how easy it is to set up your thermal imager create professional reports with SmartView software and learn thermography theory with step-by-step video instructions.

Adjustable hand strap for left-or right-handed use.

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Temperature measurement range (not calibrated below -10 °C)-20 °C to +350 °C (-4 °F to + 662 °F) (two ranges)
Temperature measurement accuracy± 2 °C or 2 % (whichever is greater)
On-screen emissivity correctionYes
Field of view23° x 17°
Spatial resolution (IFOV)2.5 mRad
Minimum focus distanceThermal lens: 15 cm (6 in)\nVisible (visual) light lens: 46 cm (18 in)
FocusManual
Image frequency9 Hz refresh rate
Detector type160 X 120 focal plane array uncooled microbolometer
Infrared lens type20 mm F = 0.8 lens
Thermal sensitivity (NETD)= 0.09 °C at 30 °C target temp. (90 mK)
Infrared spectral band7.5 µm to 14 µm
Visual camera640 x 480 resolution
Voice annotation60 seconds maximum recording time per image; reviewable playback on imager
Storage mediumSD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice an
File formatsNon-radiometric (.bmp) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp) files
Export file formats w/SmartView® softwareJPEG BMP GIF PNG TIFF WMF EXIF and EMF
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity10 % to 90 % non-condensing
Display9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
Controls and adjustmentsUser selectable temperature scale (°C/°F)\nLanguage selection\nTime/Date set
