iShot XtendaCam Pole Camera Systems
Danatronics NDT

iShot XtendaCam Pole Camera Systems

Pine Item #52173

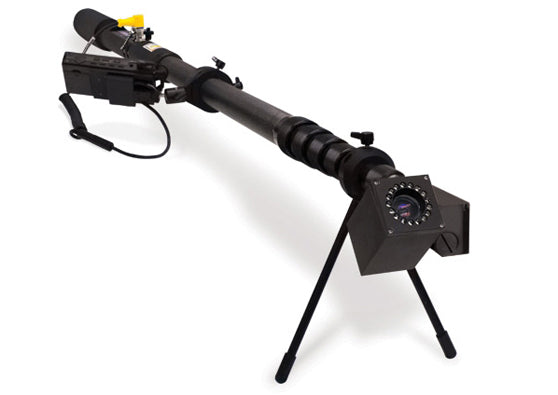

Quickly access and inspect out-of-reach targets up to 20-feet away with the iShot Imaging XtendaCam® Manual Tilt Video Pole Inspection System. The XtendaCam® is designed specifically for viewing, illuminating, and recording inaccessible areas in a matter of minutes. The system boasts a 1/4-inch CCD zoom camera in a waterproof housing attached to a manual tilting mechanism allowing the user to change the vertical orientation of the camera in a 320-degree range. The camera system offers a crisp video output: 40 to 1 zoom ratio, auto-focus, variable shutter, gain, exposure, white balance, and backlight compensation. An LED light ring provides auxiliary lighting that reaches targets up to 25-feet away. The camera functions and lighting are controlled via a touch pad on the XtendaCam® body.
Features:

Submersible camera head, IP-67 rating - up to 1 meter

40x zoom ratio (10x optical, 4x digital)

Variable intensity LED lighting reaching up to 25 feet

Pole mounted LCD monitor and recorder

Capture video or image stills

Easy to use camera control pad on pole, splashproof

Rugged Pole colapses to 5 feet

Extend camera on telescoping pole up to 16 feet, 4 inches

Completely mobile system, includes shipping case

Applications:

Bridge Structure Inspections

Transportation inspections

Security/Surveillance

Law Enforcement/Military

Mines

Refineries

Power Generation Facilities

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications
Technical Specifications
Image Device
Digital Zoom
Minimum Object Distance10 mm (wide) to 1000 mm (tele)
White BalanceAuto, ATW, Indoor, Outdoor, One-push, Manual
Backlight CompensationOn/Off
Signal SystemNTSC
Optical Zoom10x
Sync SystemInternal
GainAuto/Manual (-3 to 28 dB 2 steps)
Focus SystemAuto (Sensitivity: normal and low), One-Push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture EffectsNega Art, Black & White, Mirror Image
Video OutputVBS: 1.0 Vp-p (sync negative), Y/C
Dimensions1 9/16 x 1 13/16 x 2 5/8 inches, (39.3 x 44.8 x 65 mm)
Weight3.4 oz (95g)
Effective PixelsApprox. 380,000
