Danatronics Echo Pro - Sale
- Regular price
- $7,995.00
- Sale price
- $7,995.00
Pine Item #

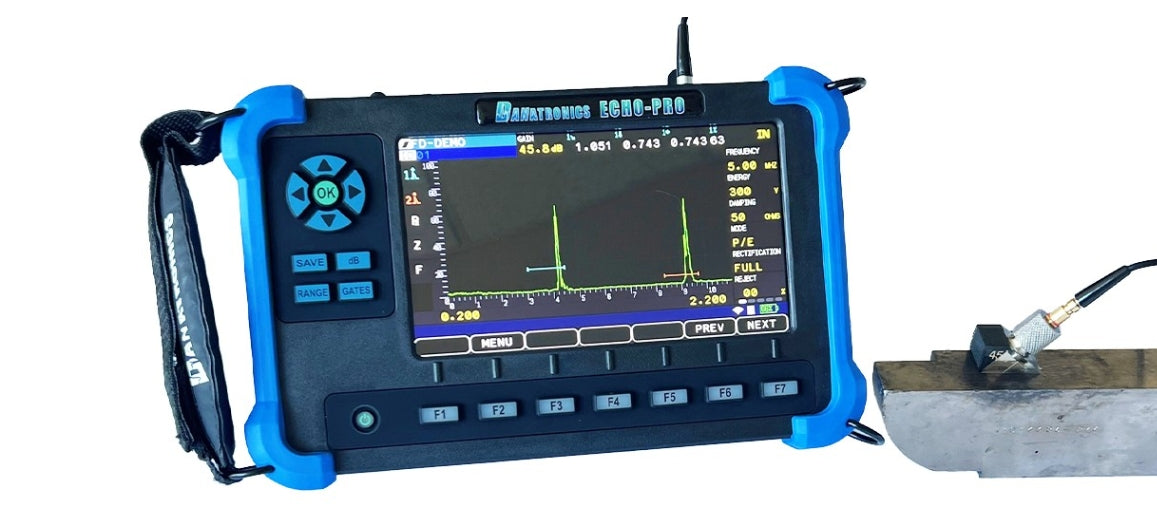

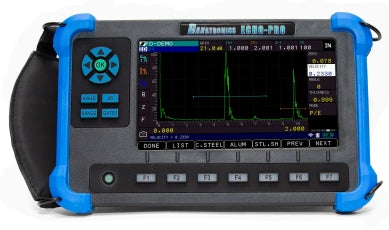

Danatronics™ ECHO PRO is our latest portable ultrasonic flaw detector. Designed with more than 70 years of digital ultrasonic flaw detection experience and always with our users in mind; you will be amazed at the speed and ease of use of its operations.
The ECHO PRO comes standard with many common software features such as a powerful datalogger with export of thickness readings to Excel, 2 gates, AWS, API 5UE, DAC, single hand and touch screen operation along with a powerful 600 Volt pulser and continuous 8-10 hour battery operation. Advanced features include damping, digital filters, analog and alarm outputs, wifi and Bluetooth. Optional Features include interface gate, floating and tracking gates, extended range, and back echo attenuator.
ECHO PRO can handle your most challenging ultrasonic inspections while being very simple to operate.
Features:

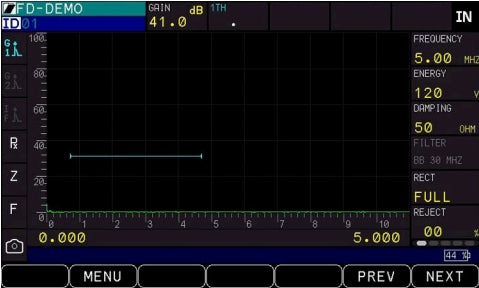

Bright, sunlight readable 7” Wide VGA touch screen display
More than 8 hour battery life
Standard features include datalogging, 2 gages, DAC, AWS, B-scan, Wi-Fi, Bluetooth, API-5Ue
Advanced features include extended range, TVG, Back ECHO Attenuation, Interface Gate, Damping and Energy
Intuitive user interface combining touchscreen or keypad
Custom packaging with rubber bumpers, hand strap, neck harness, variable angle hinge/stand and magnetic pipe stand
Change color and vibrate on alarm
Adjust gain, gates, delay and range from touch screen
Applications:

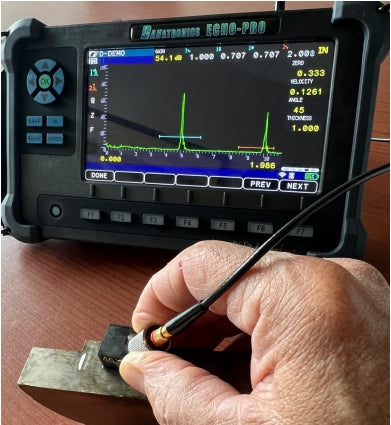

Weld inspection
Delaminations
Porosity
Disbonds
Forgings
Castings
Refining
Power generation
Oil and gas
Pipeline inspection
Tank inspection
Thickness surveys
Inspection companies
Specifications
General
| Size: | Length 9.9” x Width 6.16” x Height 2.50” (252 mm x 157 mm x 64 mm) |
| Weight: | 3.6 lbs (1.63 kg) with internal rechargeable battery. 2.6 lbs (1.18 kg) without battery |
| Operating Temperature: | -4 to 122F (-20 to 50C) |
| Enclosure: | Custom case with rubber over mold and padded hand strap, built in stand with variable angle, ¼-20 connector for magnetic pipe stand and 4 point chest harness optional |
| Battery Life: | 8-10 hours |
| Battery storage Temperature: | 32 °F to 122 °F (0 °C to 50 °C) |
| Power Requirements: | AC Mains: 100-240 VAC, 50-60 Hz 1.4A max Input. |
| Units: | inches, mm or µsec |
| Communication: | USB, Wi-Fi, Bluetooth, RS-232 (Optional) |
| Languages: | English, French, Spanish, Italian, Portuguese, German, Slovak, Swedish, Russian, Chinese, Japanese, Czech, Finnish, Hungarian |
| Certifications: | CE certified, RHOS compliant, designed for IP67, ASTM E317-15 calibration certificate included with gage |
| Standard Inclusions: | Digital Ultrasonic flaw detector with 7” color sunlight readable touch screen display including: 2 independent gates, DAC, AWS software, datalogger with B-Scan, Bluetooth, Wifi, enclosure includes protective rubber corners with built in stand and padded hand strap, microSD card, rechargeable Li-ion battery, AC adapter with power cord, USB-C cable, plastic carrying case, couplant, Data XL interface program to export saved readings to p.c. (Microsoft Excel), ASTM E317-15 calibration certificate | Datalogger with B-scan, Live waveform, (Precision mode, Oxide scale, Coating thickness...Q1 2016) |
| Warranty: | Limited 2 year warranty under normal use on parts and labor for gage. Optional Dan-A-Care to add up to 3 more years |
Display
| Display: | 7” sunlight readable Multi-Touch display with Wide VGA (800x480 pixels) |
| Backlight: | Light Emitting Diode (LED) backlight. Includes variable light intensity |
| Interface: | Operate with multi- touch screen and/or keyboard - complete one-hand operation |
Inputs/Outputs
| USB Port: | USB-C (Supports USB 2.0 On-The-Go (OTG), Power in to charge the unit, Display output) |
| RS-232 Port: | Optional |
| Video Output: | Wide VGA output via USB-C (Requires USB-C to HDMI cable) |
| Analog Output: | 1 analog output (optional), Selectable 1 V/10 V Full Scale, 4mA max |
| Alarm Output: | 3 alarm outputs, 5 V TTL, 10 mA |
| Trigger I/O: | Trigger input, 5V TTL; Trigger output, 5V TTL, 10 mA max |
| Encoder Inputs: | 2-axis encoder line |
| Charger Input: | 12V DC, 5A |
| Transducer Connectors: | Dual LEMO 00 |
| Transducer and Measurement Types: | Single, dual, thru transmission, angle beam, delay lines, contact, immersion, echo to echo, dry couple |
| Measurement Rate: | 10 Hz -2k Hz adjustable |
| Range: | 0.353” to 277” (8.96 mm to 7035.8 mm) @ 5,900 m/s (0.2320 in./μ) Optional extended range 554” (14071.6mm) |
| Zoom: | Zooms gate 1 width to minimum range capability |
| Display Delay: | -0.018” to 276.647” (8.96 to 7035.8mm) @ longitudinal velocity in steel |
| Zero Offset: | 0-2387 µsec. |
| Velocity: | 0.0250”/µs to 0.6000”/µs (635 m/s to 15240 m/s) |
| Alarm: | Dynamic change of color and vibrate on alarm for echo in gate, echo above DAC positive, DAC negative, gate, minimum depth alarm and polarity change (phase reversal) |
| Peak Hold: | Holds curve of ECHO envelope with live echo. Peak on, Peak hold, Peak off, peak pitch memory (audible chirp based on maximum echo amplitude) |
| Freeze: | Freezes for data storage and waveform viewing analysis - ideal for high temperature measurements |
| Waveform: | Filled or outlined |
| Angle Beam: | Displays all three leg components, angular distance, surface distance and depth (automatically displayed once an angle is entered) accounting for leg correction to correct for beam index point of wedge, fourth measurement box is gate 1 amplitude |
| Refracted Angle: | 0° to 85° in 1° increments including 0, 30, 45, 60 and 70 as pre-set choices |
| Gate (1, 2): | Thickness, Soundpath, Projection, Depth, Amplitude, Time-Of-Flight, Min./Max. Depth, Min./Max. Amplitude |
| Echo-to-Echo: | Standard Gate 2-Gate 1, Optional IF Gate Tracking |
| Other measurements: Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 A, B, C and D values, Reject Value, Echo to Ref dB values | |
| DAC/TCG: | Standard |
| DAC points: | Up to 50 points, 110 dB dynamic range |
| Special DAC modes: | Custom DAC (up to 6 curves), 20-80% View |
| Curved surface correction (Optional): | Standard OD or Bar correction for Angle Beam measurements |
| Curves: | AVG/DGS |
| Corrosion Module (Optional): | Zero-cross measurement algorithm, V-Path correction, Single or Echo-to-Echo, Encoded B-scan |
| Pulser: | Tunable Square Wave (1-25 MHz) or spike |
| Pulse Repetition Frequency(PRF): | 10- 2000 Hz in 10 Hz increments |
| Pulser Voltage: | 50V-600V in 5V increments. |
| Pulse Width: | Adjustable from 20 ns to 2,000 ns (30MHz-0.5 MHz) |
| Damping: | 50, 63, 150, 400 Ω |
| Gain: | 0-110db in (.1db increments for 0-100db) |
| Max Input Signal: | 20 V p-p |
| Receiver Input Impedance: | 400 Ω ± 5% |
| Receiver Bandwidth: | 0.5 MHz to 25 MHz (-3 dB) |
| Filters: | TBD |
| Rectification: | RF, Full Wave, Half +, Half –, RF |
| Linearity: | Per ASTM E317-15 (1% on vertical axis, .5% on horizontal axis) |
| Resolution: | 1% FSH, amplifier accuracy ± 1dB |
| Reject: | 0-80% FSH, completely linear with vertical indication bar |
| Amplitude Measurement: | 0 to 110% full screen height with 1% resolution |
| Measurement Rate: | Equivalent to PRF in all modes |
| Automated Calibration: | Velocity, Zero Offset, Straight Beam (First Backwall or Echo-to-Echo), Angle Beam (Soundpath or Depth) |
| Test Modes: | Pulse Echo, Dual, or Through Transmission |
| Measurement Gates: | 2 fully independent gates for amplitude and TOF measurements, Optional Interface gate |
| Gate Start: | Variable over entire displayed range |
| Gate Width: | Variable from Gate Start to end of displayed range |
| Gate Height: | Variable from 2 to 95% full screen height |
| Alarms: | Positive and Negative Threshold, Minimum Depth (Gate 1 and Gate 2) |
| Gate Options: | Floating, tracking and interface |
| Datalogger: | file types linear, 2D, 2D with custom point, 3D, 3D with custom point, boiler with and without waveform storage options.32 character file name and 20 character longer I.D. strings |
| Data storage: | 100,000 IDs onboard, removable MicroSD card standard, expandable to 32Gb file types linear, 2D, 2D with custom point, 3D, 3D with custom point, boiler with and without waveform storage options. 32 character file name and 20 character longer I.D. strings |
| Stored Setups: | Storage and recall of 2700 calibration and setup files |
| Data XL: | Interface program to send and receive files to and from PC. Displays thickness with ID in Microsoft Excel |
| Software Options: | Corrosion module, precision module, floating gate, tracking gate, interface gate, pipe curvature correction, backwall echo attenuator (BEA), extended range up to 554” |
| Hardware Options: | Magnetic wheel encoder, RS-232, heavy duty bail, spare battery, external charger, foot switch, test blocks, cables, probes, couplant, and magnetic pipe stand, heavy duty Pelican case, chest harness |
