Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge
Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge
Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge
Cygnus Instruments

Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge

Pine Item #54844

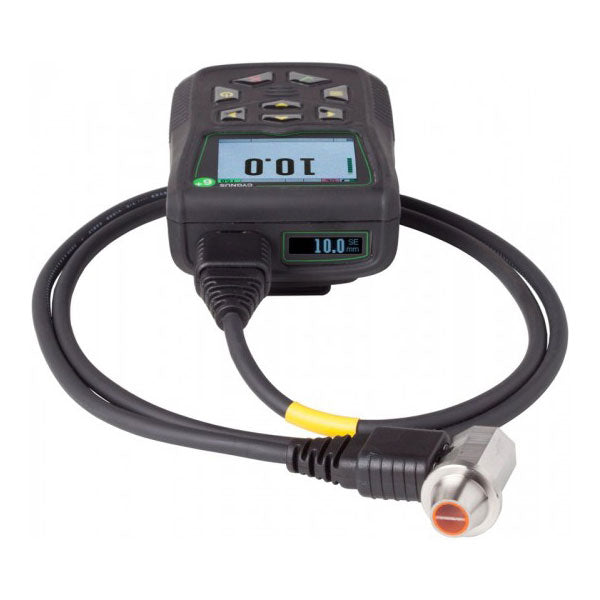

The NEW Cygnus 6+ ultrasonic thickness gage has a large front LCD color display plus an end mounted OLED display, offering maximum versatility.

The gage includes, comprehensive data logging, A-Scan and B-Scan display, automatic and manual gain control and Bluetooth connection.

The instrument has three measurement modes:

  • Multiple-Echo to provide extremely accurate measurements while ignoring protective coatings up to 20 mm thick
  • Echo-Echo for measurements on painted metals but with heavy back wall corrosion / pitting
  • Single-Echo for measurements on uncoated surfaces with heavy front face and/or backwall corrosion and attenuative materials such as cast metals or plastics / composites.

Designed for the harshest of environments, with a simple to use keypad, intuitive menus and a color LCD display which can be viewed in all lighting conditions.

The twin shot injection molded enclosure has a soft but durable TPE outer skin which is both comfortable and robust while the inner shell is strong, keeping the electronics totally sealed from the outside world. Having passed the stringent US Military Standard 810G environmental tests, this new housing represents toughness and reliability.

Features:

Multiple-Echo for reliable accurate through coating measurements

Single-Echo and Echo-Echo measuring modes

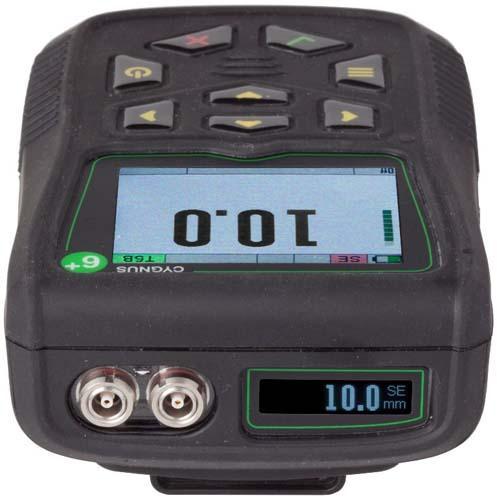

Unique dual display - large bright color LCD screen and OLED end-display for hands free operations

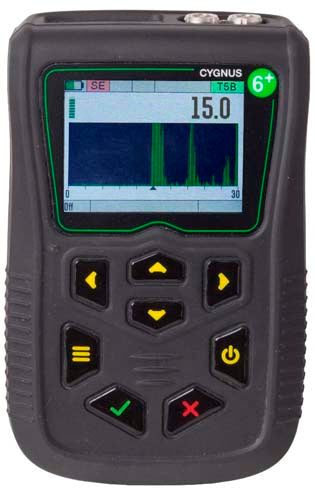

A-scan and B-scan displays

High temperature probe option

Comprehensive data logging capabilities

Bluetooth connectivity

Min / max measurement limit functions with visual and vibrate alert

Extremely rugged enclosure - shock and impact to MIL STD 810G

Environment sealing to IP67 - MIL STD810G

Deep-coat mode measure through coating up to 20 mm (¾

Cygnus echo-strength bars assist thickness measurements in Multiple-Echo

TPE over molded enclosure

Buttons designed for minimum of 100000 depressions

Fully sealed battery compartment (contains any leaking battery fluids)

MSI™ (Measurement Stability Indicator) for Single-Echo and Echo-Echo modes

Automatic probe recognition for S2C and twin crystal probes.

Applications:

Multiple-Echo for reliable accurate through coating measurements

Single-Echo and Echo-Echo measuring modes

Unique dual display - large bright color LCD screen and OLED end-display for hands free operations

A-scan and B-scan displays

High temperature probe option

Comprehensive data logging capabilities

Bluetooth connectivity

Min / max measurement limit functions with visual and vibrate alert

Extremely rugged enclosure - shock and impact to MIL STD 810G

Environment sealing to IP67 - MIL STD810G

Deep-coat mode measure through coating up to 20 mm (¾

Cygnus echo-strength bars assist thickness measurements in Multiple-Echo

TPE over molded enclosure

Buttons designed for minimum of 100000 depressions

Fully sealed battery compartment (contains any leaking battery fluids)

MSI™ (Measurement Stability Indicator) for Single-Echo and Echo-Echo modes

Automatic probe recognition for S2C and twin crystal probes.

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

MaterialsSound velocities between 2000 - 9000 m/s (0.079 - 0.35 in/ms) - covers virtually all common engineering materials
Accuracy±0.1 mm (±0.004”) or 0.1% of thickness measurement whichever is greatest when calibrated in accordance with Cygnus Instruments\ncalibration
ResolutionMultiple-Echo mode - 0.1 or 0.05 mm (0.005\" or 0.002\") / Single-Echo and Echo-Echo modes - 0.01 mm (0.0004\")
ProbesSingle crystal probes:\n6 mm (¼”) - 5.0 MHz (S5A)\n13 mm (½”) - 2.25 MHz (S2C (standard))\n3.5 MHz (S3C) or 5.0 MHz (S5C)\n19 mm (¾”) - 2.25 MH
Measurement Range in SteelSingle crystal probes:\n3 - 250 mm (0.120\" - 10.00\") with 2.25 MHz probe (S2C/D)\n2 - 150 mm (0.080\" - 6.000\") with 3.5 MHz probe (S3C)\n1 - 50
ConnectorTwin Lemo 00
Power3 x AA batteries
Battery Life10 hours minimum
ElectronicsDual channel pulser
Display2.4\" quarter VGA LCD and end-mounted OLED (rotatable)
Display Info.Thickness value A-scan B-scan and cross-section scan
Size132 mm x 82 mm x 34 mm (5.20\" x 3.23\" x 1.34\")
Weight300 grams (10.58 oz) inc. batteries
Operating Temp.-10°C to 50°C (14°F to 122°F)
Data LoggingCapacity for up to 5000 points including A-scans
Computer SoftwareCygLink allows remote logging and viewing of A-scan graphs. Survey and report generation to PDF file.\nGraphic analysis of data and statistic
Environmental RatingIP67\nMIL STD 810G Method 501.6 (high temp +55°C)\nMIL STD 810G Method 502.6 (low temp -20°C)\nMIL STD 810G Method 507.6 (humidity 95%)\nMIL STD
Shock and Impact MIL STD 810G Method 514.7 (vibration - 1 hour each axis)\nMIL STD 810G Method 516.7 (shock 20g - 11ms half sine shock pulse 40g 11ms in each
ComplianceCE British Standard BS EN 15317:2013 (specification for the characterization and verification of ultrasonic thickness measuring equipment)
EnvironmentalRoHS WEEE Compliant
