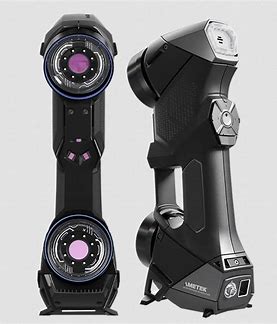

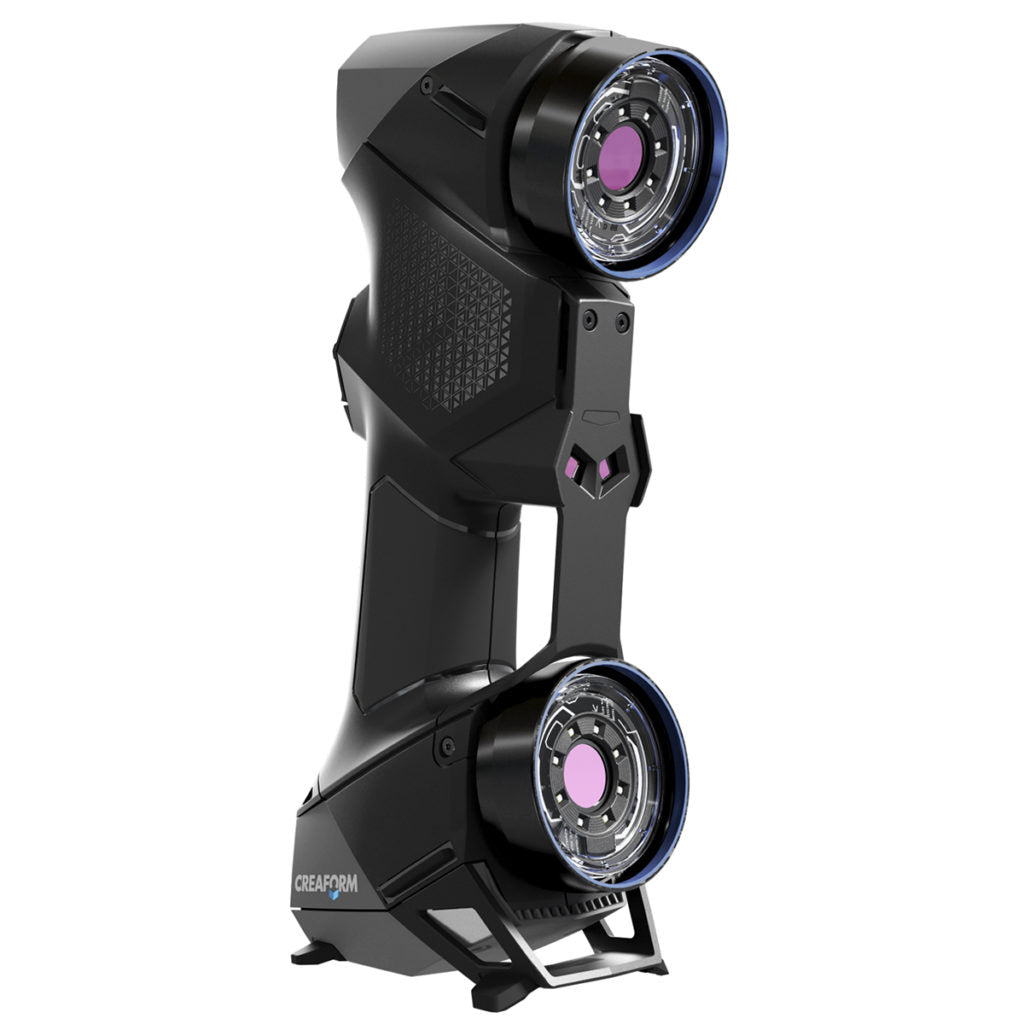

Creaform HandySCAN BLACK Elite 3D Scanner
The Creaform HandySCAN BLACK Elite is the latest-generation, metrology-grade portable 3D laser scanner. It combines advanced optics, 11 blue-laser crosses (plus an extra line), and powerful algorithms to deliver unmatched accuracy, repeatability, and measurement speed for dimensional inspection, reverse engineering, and quality control.
Product Capabilities
-
Instant alignment and dynamic referencing—no targets required
-
High-speed acquisition: up to 1 300 000 measurements/s
-
Traceable accuracy down to 0.025 mm (0.0009″)
-
Seamless integration with VXelements software suite
-
Certified ISO 17025 accuracy for QA/QC workflows
-
Industries of Use
-
Aerospace & Defense
-
Automotive & Transportation
-
Heavy Machinery & Manufacturing
-
Energy & Power Generation
-
Consumer Goods & Electronics
-
Marine & Shipbuilding
-
Research & Academia
-
Construction & Infrastructure
-
Medical Device Production
-
Oil & Gas Inspection
-
Features:
Ultra-High Accuracy: Achieve 0.025 mm (0.0009″) single-point accuracy for critical inspection tasks.
High Measurement Rate: Capture up to 1 300 000 points per second for fast large-volume scanning.
Dynamic Referencing: Scan continuously without markers, even while moving the part or device.
ISO 17025 Certification: Comes with a traceable accuracy certificate for QA/QC workflows.
Lightweight & Ergonomic: Weighs only 0.94 kg (2.1 lbs) for fatigue-free operation.
VXelements Software Suite: Includes VXinspect™, VXmodel™, and Pipeline™ for end-to-end data processing.
Applications:
First-article inspection
Tool-and-die verification
Assembly guidance
Reverse engineering
Maintenance & service-part reproduction
Quality-control reporting
Finite-element analysis (FEA) model creation
Composite layup inspection
3D documentation of heritage objects
Fit-check and clearance analysis
On-site pipeline corrosion monitoring
Medical prosthetic design
| Specification | Value |
|---|---|
| Single-Point Accuracy | 0.025 mm (0.0009 in) |
| Volumetric Accuracy | 0.020 mm + 0.040 mm/m |
| Resolution | 0.025 mm |
| Measurement Rate | Up to 1,800,000 pts/s |
| Working Distance | 0.3 m to 2.5 m |
| Laser Crosses | 7 to 11 (BLUE) |
| Weight | ~2 lb (0.9 kg) |
| Dimensions (L×W×H) | 240 × 50 × 130 mm |
| Connectivity | USB 3.0 |
| Power | 110–240 VAC; 50/60 Hz |
| Certification | ISO 17025, VDI/VDE 2634 Part 3, ISO 10360 |
